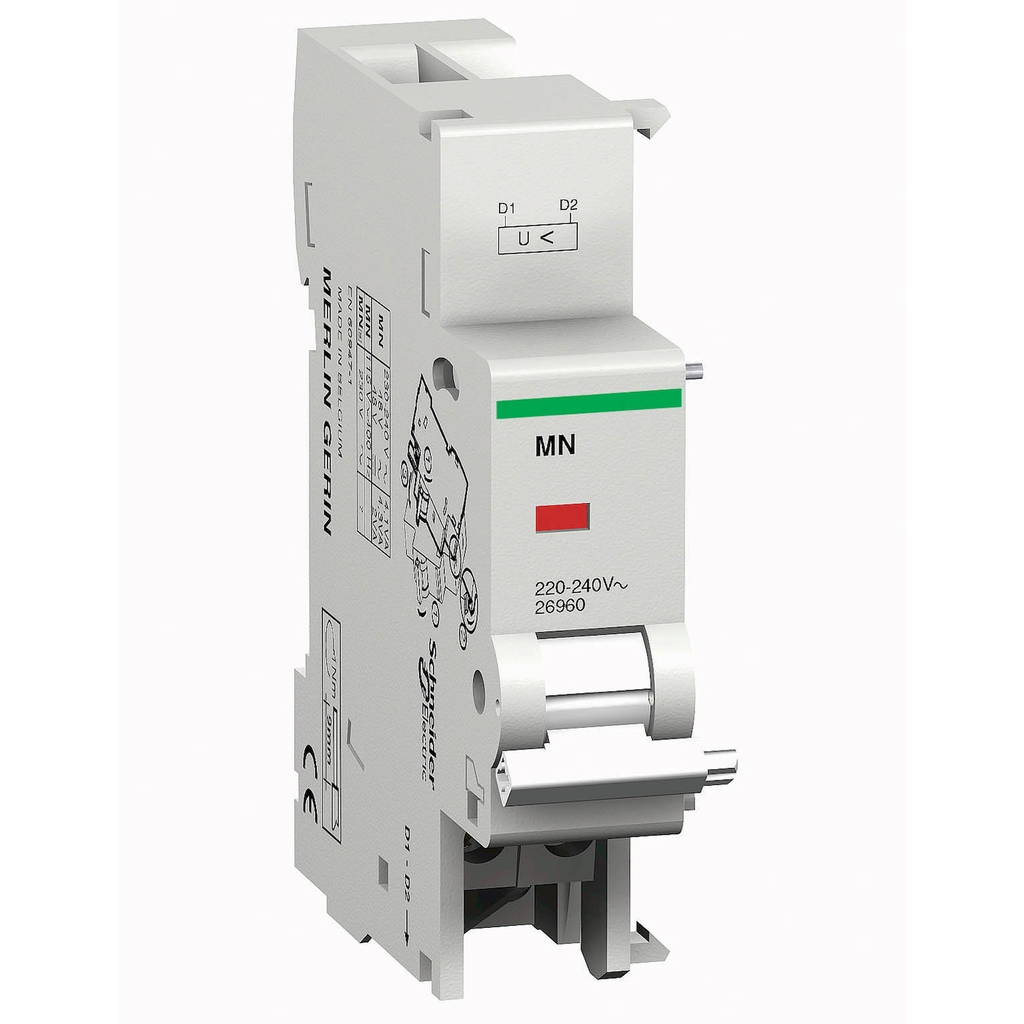

This Multi9 MN electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 115VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0001426_3D-CAD&p_File_name=MCADFD0001426_2D-top.dxf
• Physical Attributes
• Wire Stripping Length : 9 mm for bottom connection
• Conformance Attributes
• Product Certifications : UR, PCT, CSA, UL
• Standards : EN/IEC 60947-2
• Complementary Attributes
• Uc Control Circuit Voltage : 115 V AC 400 Hz, 48 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Range Of Product : C60BP, GFP, C60BPR, C60SP
• Connections Terminals : clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
• Carbon Footprint Of The Distribution Phase A4 : 0.012387726611276939, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.09191775858149305
• Carbon Footprint Of The Installation Phase A5 : 0.017148680045858226, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.33644403736709105
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.5 kg CO2 eq., 0.5311163929133567
• Medium Desc : Multi9 - undervoltage release - MN - 115 V AC - 48 V DC
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-05
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• H And D Domain : Energy
• H And D Subrange : Multi9 OEM AUX & ACC
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : M&C AUXILIARIES
• H And D Enrichment Class 3 : Monitoring & Control
• H And D Enrichment Class 4 : Undervoltage & overvoltage auxiliary
• H And Dod Responsibility : Multi9
• H And Dod Platform : Monitoring, Control, Auxiliaries, AFDD, SPD, Fuse, Active
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• Product Kit Identifier : N
• Comb Busbar And Distribution Block Compatibility : top YES
• Control Type : standard
• Device Short Name : MN
• Energy Efficiency Optimized : False
• Local Signalling : action indicator
• Mounting Mode : fixed
• Mounting Support : DIN rail
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : undervoltage release
• Range : Multi9
• Returnability : Yes
• Software Version : v6.2.5-6
• Sustainable Packaging : No
• Tightening Torque : 1-1 N.m bottom
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Silicone Free : No
• Control Circuit Voltage 4 : 48 V
• Control Circuit Voltage 4 Control Circuit Voltage : 48 V
• Pep Code : ENVPEP2206015EN
• Database Version : 2024-01
• Pep Verification Date : 2025-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Data Source : extrapolated product
• Functional Unit Description : Indicate locally and remotely electrical protection device status for 20 years
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; India, IN
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Height Nominal : 82.5 mm
• Width Nominal : 18 mm
• Environment Attributes Main
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 0.989014595519076
• 9 Mm Pitches : 2
• Ambient Air Temperature For Operation : -25-50 °C
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2206015EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2206015EN
• Pep Verification Date : 2025-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Range Of Product : C60BP, GFP, C60BPR, C60SP
• Product Or Component Type : undervoltage release
• ETIM
• ETIM 8 : EC001286
• ETIM 9 : EC001286
• Specifications
• Depth : 68 mm
