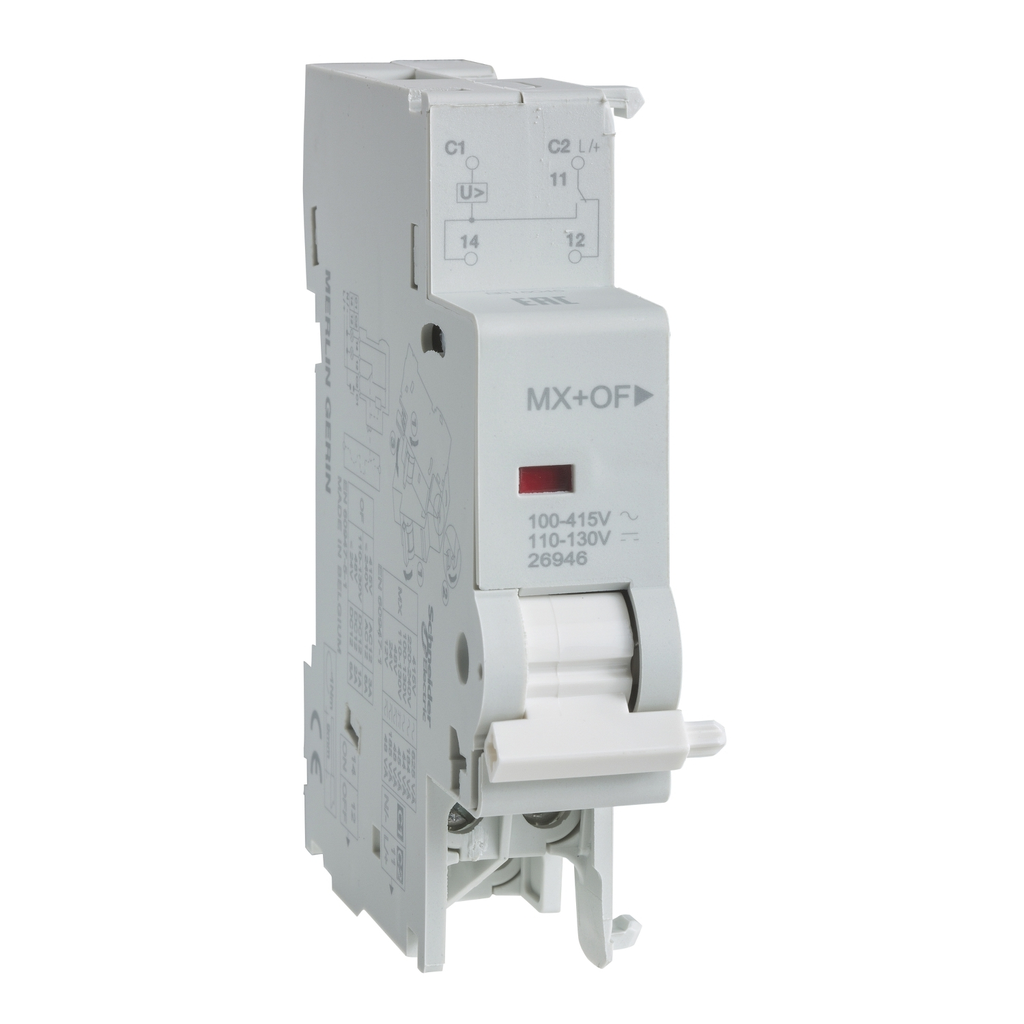

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 12…24VAC or 12…24VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

• Prop 65
• WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Wire Stripping Length : 9 mm for bottom connection, 9 mm for bottom connection
• Complementary Attributes
• Line Rated Current : 6-6 A at <= 240 V, AC, 6-6 A at <= 240 V, AC, 6-6 A at <= 240 V, AC
• UC Control Circuit Voltage : 12...24 V AC 50/60 Hz, 12...24 V AC 50/60 Hz, 12...24 V AC 50/60 Hz, 12...24 V DC, 12...24 V DC
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Range Compatibility : Multi9 C60BP, Multi9 C60BP, Multi9 C60BPR, Multi9 C60BPR, Multi9 C60SP, Multi9 C60SP, Multi9 GFP, Multi9 GFP, Multi9 C60H-DC, Multi9 C60H-DC
• Range Of Product : GFP, C60SP, C60BPR, C60BP
• Tightening Torque : 1-1 N.m bottom, 1-1 N.m bottom
• Connections Terminals : clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-30
• HTML Description : Multi 9 - shunt trip release with OC contact, MX + OF, 12/24 V AC, 12/24 V DC
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Energy
• H And D Subrange : Multi9 OEM AUX & ACC
• H And D Enrichment Assignment : yes
• H And D Enrichment Function : M&C AUXILIARIES
• H And D Enrichment Class 3 : Monitoring & Control
• H And D Enrichment Class 4 : Undervoltage & overvoltage auxiliary
• H And Dod Responsibility : Multi9
• H And Dod Platform : Monitoring, Control, Auxiliaries, AFDD, SPD, Fuse, Active
• Device Short Name : MX + OF
• Energy Efficiency Optimized : False
• Package Weight Lbs : 75.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : shunt trip release with OC contact
• Range : Multi9
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1305024EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• 9 MM Pitches : 2
• Environmental Disclosure : ENVPEP1305024EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP1305024EN
• General Attributes
• Range Of Product : GFP, C60SP, C60BPR, C60BP
• Product Or Component Type : shunt trip release with OC contact
