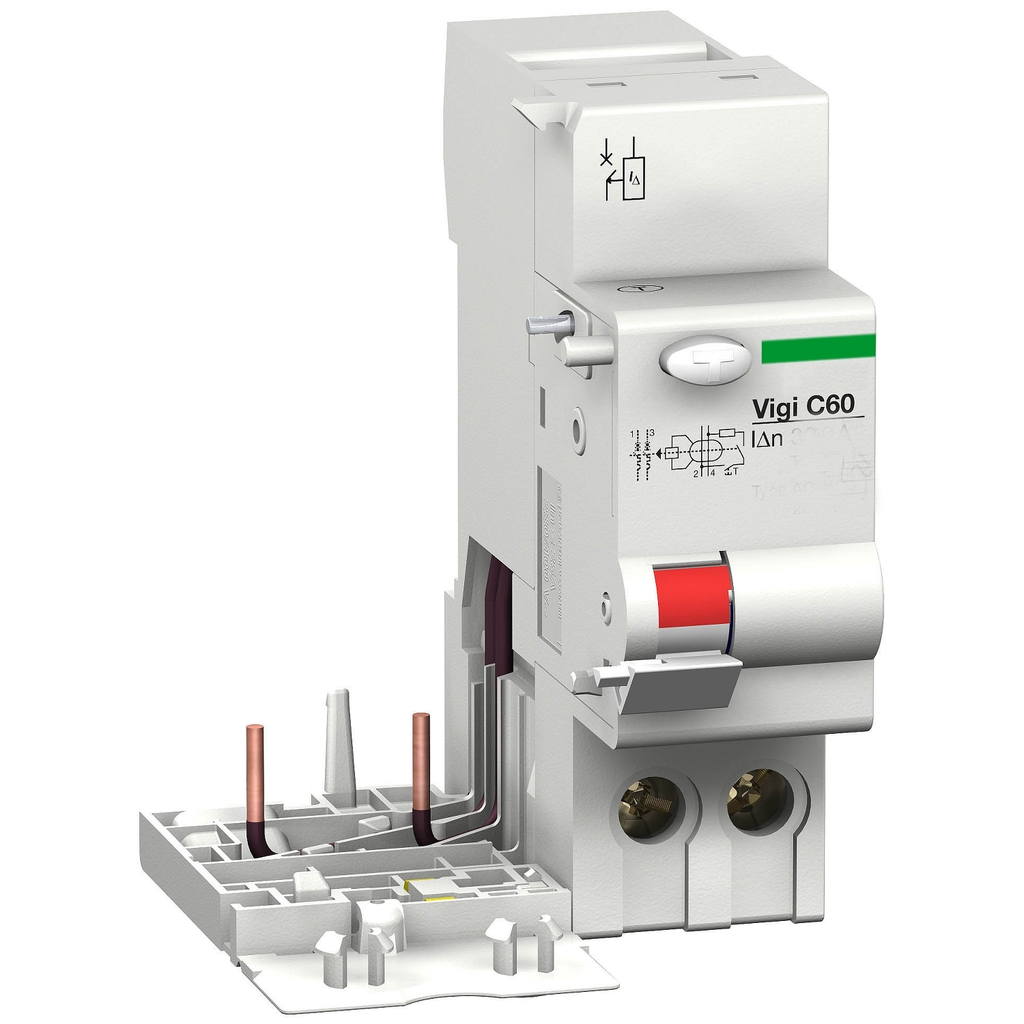

Multi9 - Vigi C60 - 2P - 63A - class AC - 230/400 V - 300mA

CB ACCESSORY, GROUND FAULT MO

SQDM9V14263 M9V14263 360648068457
0.00 / EA
  • Amperage: 63 A
  • Country of Origin: France
  • Depth: 2.91 in, 74 mm
  • Height: 3.43 in, 87 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 61009-1, EN/IEC 61009-2-1
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 230/240 V
  • Warranty Length: 18 mth
  • Weight: 150 g, 5.29 oz
  • Width: 1.42 in, 36 mm
This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
  • Product Description
  • Specifications
This Vigi C60 is a modular add-on residual current devices. It is a 2P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 87mm x (D) 74mm. The weight is 150g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Returnability : No
    • Category : 01078 - DE2 MISC
    • Discount Schedule : DE2
    • Country Of Origin : FR
    • GTIN : 00785901974864
  • Environment
    • Ambient Air Temp For Op : 23…140 °F (-5…60 °C)
    • Tropicalisation : 2 IEC 60068-1
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Storage : -40…140 °F (-40…60 °C)
    • Electromagnetic Compatibility : 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
    • Pollution Degree : 3 IEC 61009
    • IP Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
    • Standards : EN/IEC 61009-1 || EN/IEC 61009-2-1
  • Complementary
    • Height : 3.43 in (87 mm)
    • Product Weight : 5.29 oz (150 g)
    • Width : 1.42 in (36 mm)
    • Connections - Terminals : Tunnel type terminal bottom) 0.00…0.05 in² (1…35 mm²) - rigid || Tunnel type terminal bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • Ui Rated Insulation Voltage : 500 V AC 50 Hz EN/IEC 61009-1
    • Wire Stripping Length : 0.55 in (14 mm) bottom
    • Resid Current Tripping Techno : Voltage independent
    • Tightening Torque : 30.98 lbf.in (3.5 N.m) bottom
    • Colour : Gray
    • Electrical Connection To Mcb : By screws
    • Mounting Support : DIN rail
    • Uimp Rated Imp Wstd Voltage : 4 kVEN/IEC 61009-1
    • Local Signalling : Fault indication
    • Mounting Mode : Clip-on
    • Depth : 2.91 in (74 mm)
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Halogen Content Performance : Halogen free plastic parts product
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Compliant
  • Main
    • Device Short Name : Vigi C60
    • 9 mm Pitches : 4
    • Range Compatibility : Multi 9 C60 C60N || Multi 9 C60 C60L || Multi 9 C60 C60H || Multi 9 C60 C60CTRL
    • Range : Multi 9
    • Poles Description : 2P
    • Product Or Component Type : Add-on residual current devices
    • Earth-Leakage Sensitivity : 300 mA EN/IEC 61009-1
    • In Rated Current : 63 A EN/IEC 61009-1
    • Earth-Leakage Protection Class : Type AC
    • Network Frequency : 50 Hz
    • Ue Rated Operational Voltage : 230/240 V AC 50 Hz
    • Earth-Leak Protect Time Delay : Instantaneous
    • Network Type : AC
