Multi 9 - N40N - MCB - 3P + N - 10 A - C Curve - 415 V - 10 kA

Multi 9 - N40N - MCB - 3P + N - 10 A - C Curve - 415 V - 10 kA

SQDM9P22710 M9P22710 360648057233
0.00 / EA
  • Amperage: 10 A
  • Country of Origin: Hungary
  • Depth: 3.07 in, 78 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2
  • Strip Length: 0.51 in, 13 mm
  • Voltage: 415 V
  • Weight: 0.322 kg, 0.71 lb
  • Width: 2.13 in, 54 mm

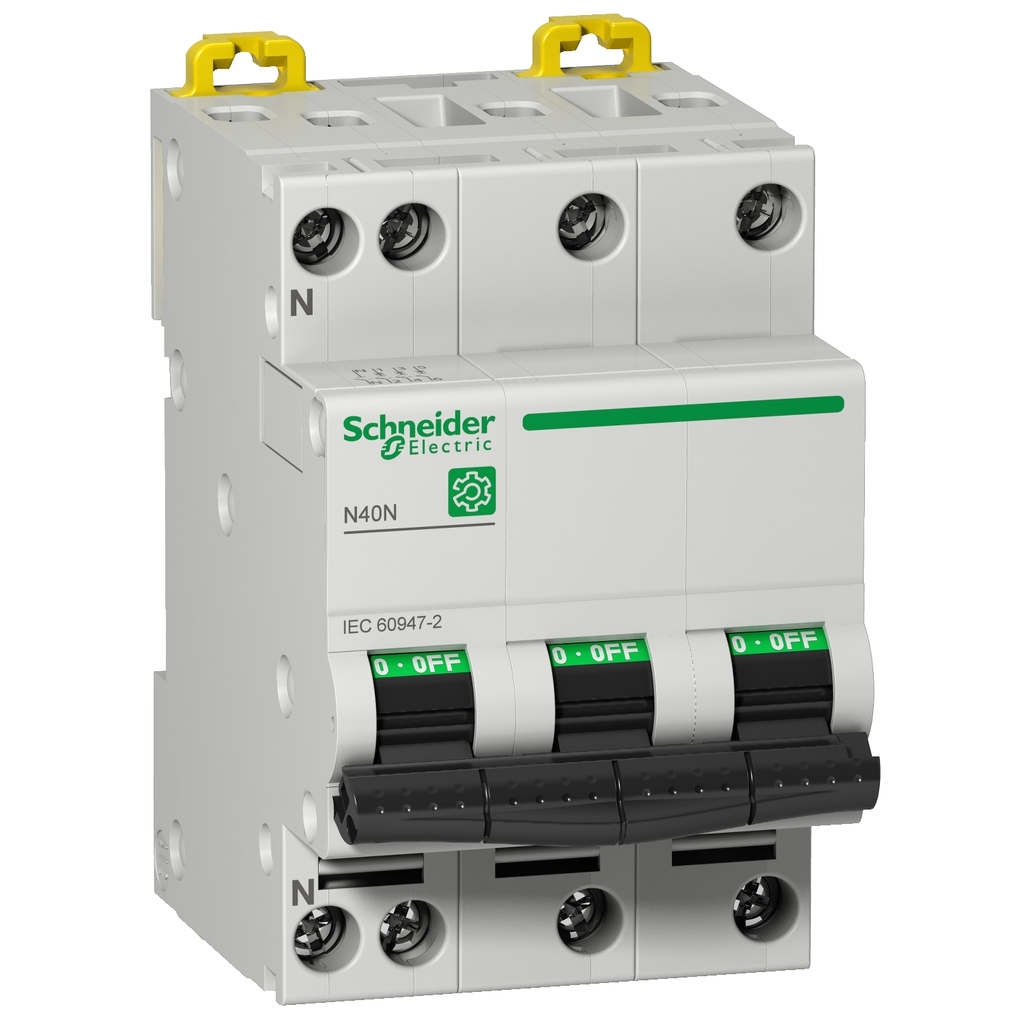

This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 3P+N circuit breaker with 3 protected poles, 10A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 415VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 78mm. The weight is 0.322kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
  • Product Description
  • Specifications
This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 3P+N circuit breaker with 3 protected poles, 10A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 415VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 78mm. The weight is 0.322kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
  • Main
    • Product Name : Multi 9 N40
    • Device Short Name : N40N
    • Product Or Component Type : Miniature circuit-breaker
    • Poles Description : 3P + N
    • Device Application : Distribution
    • Neutral Position : Left
    • Number Of Protected Poles : 3
    • In Rated Current : 10 A 122 °F (50 °C) EN/IEC 60947-2
    • Curve Code : C
    • Range : Multi 9
    • Trip Unit Technology : Thermal-magnetic
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Standards : EN/IEC 60947-2
    • Breaking Capacity : 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2
    • Network Type : AC
  • Environment
    • IP Degree Of Protection : IP20IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Pollution Degree : 3 EN/IEC 60947-2
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Tropicalisation : 2 IEC 60068-1
  • Ordering And Shipping Details
    • Category : 01078 - DE2 MISC
    • Nbr. Of Units In Pkg. : 4
    • Country Of Origin : HU
    • GTIN : 03606480572333
    • Returnability : No
    • Discount Schedule : DE2
  • Complementary
    • Earth-Leakage Protection : Separate block
    • Width : 2.13 in (54 mm)
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.02 in² (0.75…16 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.02 in² (0.33…10 mm²) - flexible with ferrule
    • Uimp Rated Imp Wstd Voltage : 4 kVEN/IEC 60947-2
    • Wire Stripping Length : 0.51 in (13 mm) top or bottom
    • Provision For Padlocking : Padlockable
    • Contact Position Indicator : Yes
    • Network Frequency : 50/60 Hz
    • Mechanical Durability : 20000 cycles
    • Electrical Durability : 20000 cycles
    • Control Type : Toggle
    • Height : 3.19 in (81 mm)
    • Colour : Gray
    • Limitation Class : 3 EN/IEC 60947-2
    • Product Weight : 0.71 lb(US) (0.322 kg)
    • Local Signalling : ON/OFF indication
    • Mounting Support : DIN rail
    • Ue Rated Operational Voltage : 415 V AC 50/60 Hz between phases
    • Ics Rated Service Breaking Cap : 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz
    • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
    • 9 mm Pitches : 6
    • Depth : 3.07 in (78 mm)
    • Mounting Mode : Clip-on
    • Ui Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
  • Offer Sustainability
    • EU RoHs Directive : Compliant
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Green Premium Status : Green Premium product
