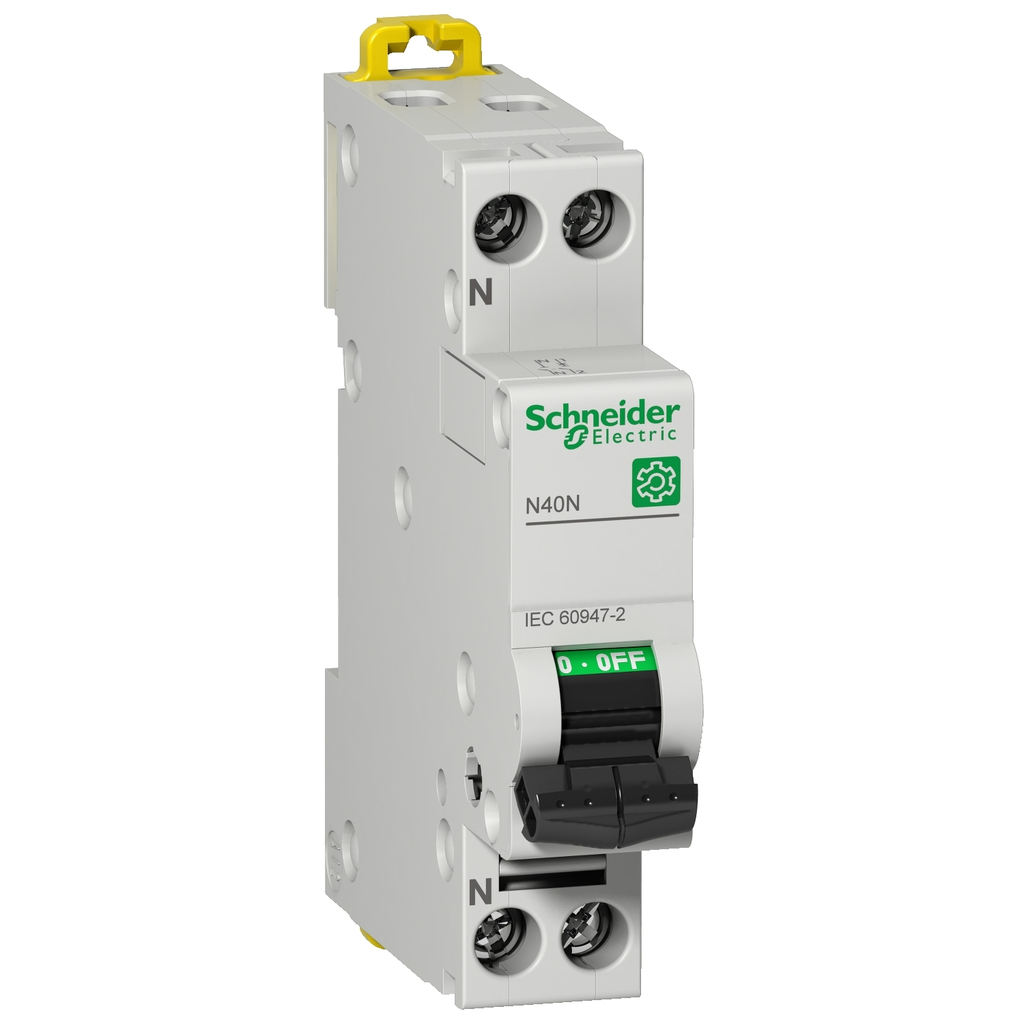

This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole, 10A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 240VAC conforming to EN/IEC 6089

• Connections Terminals
• tunnel type terminal top or bottom) 0.75-16 mm² - rigid
• tunnel type terminal top or bo
• Uimp Rated Impulse Withstand Voltage
• 4 kVEN/IEC 60947-2
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.005738298
• Limitation Class
• 3 EN/IEC 60947-2
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.31673392
• 0.3 kg CO2 eq.
• Ue Rated Operational Voltage
• 240 V AC 50/60 Hz between phase and neutral
• Ui Rated Insulation Voltage
• 500 V AC 50/60 Hz EN/IEC 60947-2
• Ip Degree Of Protection
• IP20 conforming to IEC 60529
• IP40 (modular enclosure) conforming to IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.8 kg CO2 eq.
• 0.794023315
• Tropicalisation
• 2 IEC 60068-1
• Accessories
• MGN26380
• MGN26381
• Connection Pitch
• 18 mm between phase and neutral
• Ics Rated Service Breaking Capacity
• 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
• 7.5 kA 75 % EN/IEC
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 15 kg CO2 eq.
• 14.54089655
• Line Rated Current
• 10 A 50 °C EN/IEC 60947-2
• Relative Humidity
• 95-95 % 55-55 °C
• Persona Type Ids
• EU
• OM
• OM8
• Auxiliaries
• M9A26914
• M9A26917
• M9A26948
• M9A26478
• M9A26960
• M9A26946
• M9A27108
• M9A26476
• Magnetic Tripping Limit
• 8.5 x In +/- 20 % AC
• Wire Stripping Length
• 13 mm for top or bottom connection
• Carbon Footprint Of The Distribution Phase A4
• 0.015746146
• 0 kg CO2 eq.
• Tightening Torque
• 2-2 N.m top or bottom
• Suitability For Isolation
• yes EN/IEC 60947-2

• Physical Attributes
• Color : Gray
• Conformance Attributes
• Standards : EN/IEC 60947-2
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2024-05-24
• ETIM 10 : EC000042
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 0.794023315
• Distribution Carbon Footprint : 0.015746146
• Installation Carbon Footprint : 0.005738298
• Use Carbon Footprint : 14.54089655
• End Of Life Carbon Footprint : 0.31673392
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1735
• ROHS Eur Full Compliance Status : Compliant with Exemptions
• ROHS Eur Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : Multi9 OEM MCB
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB IEC 1P+N
• H And Dod Responsibility : Multi9
• H And Dod Platform : MCB
• Contact Position Indicator : yes
• Control Type : toggle
• Curve Code : C
• Device Application : distribution
• Device Short Name : N40N
• Earth Leakage Protection : separate block
• Electrical Durability : 20000 cycles
• Energy Efficiency Optimized : False
• Local Signalling : ON/OFF indication
• Mechanical Durability : 20000 cycles
• Mounting Mode : clip-on
• Mounting Support : DIN rail
• Network Frequency : 50/60 Hz
• Network Type : AC
• Neutral Position : left
• Number Of Protected Poles : 1
• Package Weight Lbs : 112.000 g
• Poles Description : 1P + N
• Power Losses Per Pole : 2.7 W
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Provision For Padlocking : padlockable
• Range : Multi9
• Range Of Product : Multi9
• Returnability : No
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 16 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 15.67313823
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Multi9
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=246972991&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 15.67313823
• 9 MM Pitches : 2
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Environmental Disclosure : ENVPEP1801003EN
• Eu Rohs Directive : Compliant with Exemptions
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France
• Height : 3.19 in
• Width : 0.71 in
• Depth : 3.07 in
