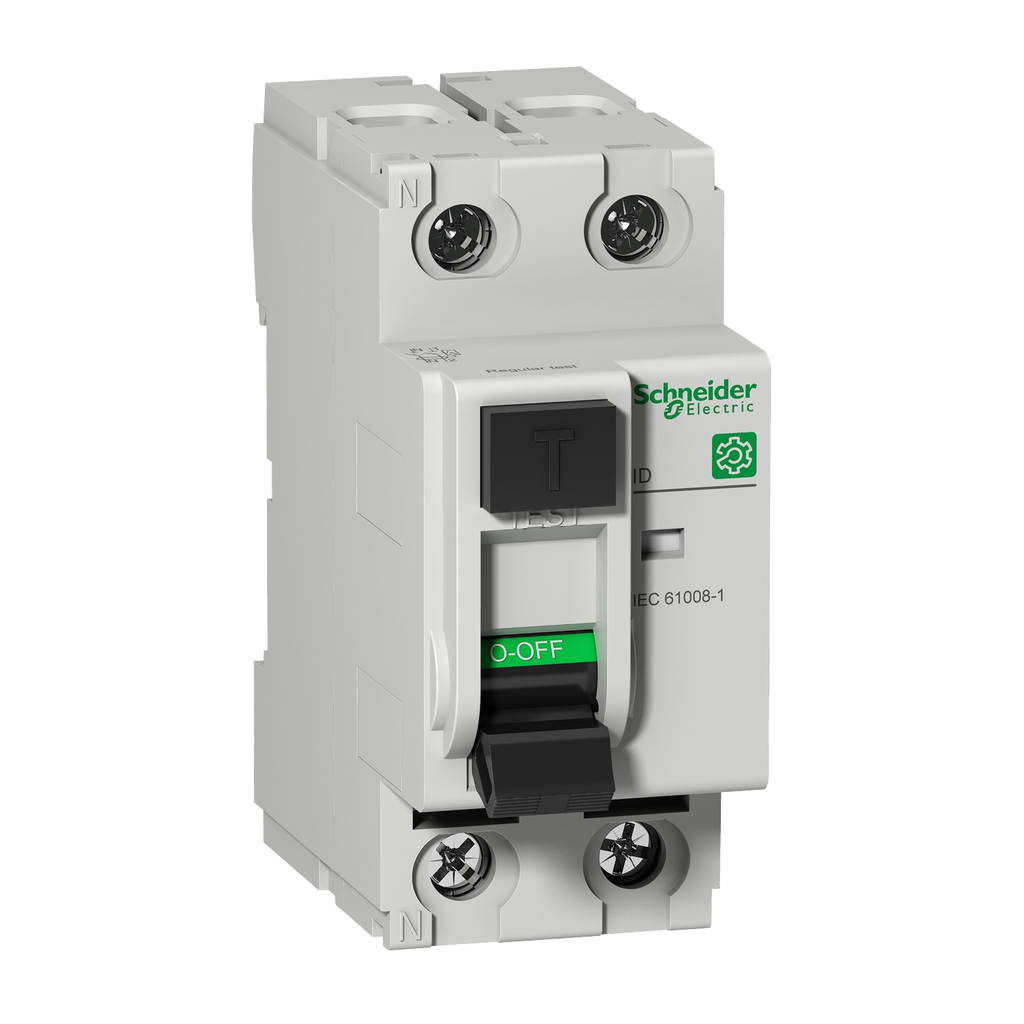

Multi9 ID - residual current circuit breaker - 2P - 25A - 30mA - type AC

RESIDUAL CURRENT SWITCH 240V 2

SQDM9R11225 M9R11225 785901216476
220.28 / EA
  • Amperage: 25 A
  • Certifications: CE
  • Country of Origin: Spain
  • Depth: 2.87 in, 73 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 61008-1
  • Strip Length: 0.59 in, 15 mm
  • Voltage: 240 V
  • Weight: 0.23 kg, 0.51 lb
  • Width: 1.42 in, 36 mm
This is a Multi ID residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 25A, AC type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 250A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 2000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.23kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
  • Product Description
  • Specifications
This is a Multi ID residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 25A, AC type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 250A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 2000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.23kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
  • Environment
    • Ambient Air Temp For Storage : -40…140 °F (-40…60 °C)
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Product Certifications : CE
    • Standards : EN/IEC 61008-1
    • Tropicalisation : 2 conforming to IEC 60068-1
    • IP Degree Of Protection : IP20IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
    • Pollution Degree : 3
    • Electromagnetic Compatibility : 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1
    • Ambient Air Temp For Op : 23…104 °F (-5…40 °C)
  • Offer Sustainability
    • Mercury Free : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Compliant
  • Complementary
    • Network Frequency : 50 Hz
    • Depth : 2.87 in (73 mm)
    • Locking Options Description : Padlocking device
    • Surge Current : 250 A
    • Rtd Cond Short-Cct Current : Inc 10 kA
    • Product Weight : 0.51 lb(US) (0.23 kg)
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 61008-1
    • Control Type : Toggle
    • Electrical Durability : 2000 cycles
    • Wire Stripping Length : 0.59 in (15 mm) top or bottom
    • Resid Current Tripping Techno : Voltage independent
    • Local Signalling : ON, OFF, fault trip
    • Mounting Mode : Clip-on
    • Rated Brking And Making Cap : Idm 250 A EN/IEC 61008-1
    • Width : 1.42 in (36 mm)
    • Colour : Gray
    • Contact Position Indicator : Yes
    • Mechanical Durability : 20000 cycles
    • Tightening Torque : 30.98 lbf.in (3.5 N.m) top or bottom
    • Ui Rated Insulation Voltage : 440 V AC 50 Hz EN/IEC 61008-1
    • Height : 3.19 in (81 mm)
    • Mounting Support : DIN rail
    • Ue Rated Operational Voltage : 220...240 V AC 50 Hz
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal top or bottom) 3 0.02 in² (16 mm²) - rigid || Tunnel type terminal top or bottom) 3 0.02 in² (10 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • 9 mm Pitches : 4
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • Discount Schedule : DE2
    • Country Of Origin : ES
    • GTIN : 00785901216476
    • Returnability : Yes
  • Main
    • Product Or Component Type : Residual current circuit breaker (RCCB)
    • Earth-Leak Protect Time Delay : Instantaneous
    • Product Name : Multi 9 ID
    • Poles Description : 2P
    • Earth-Leakage Sensitivity : 30 mA
    • Earth-Leakage Protection Class : Type AC
    • Range : Multi 9
    • Device Application : Distribution
    • Network Type : AC
    • Device Short Name : ID
    • In Rated Current : 25 A
    • Neutral Position : Left
