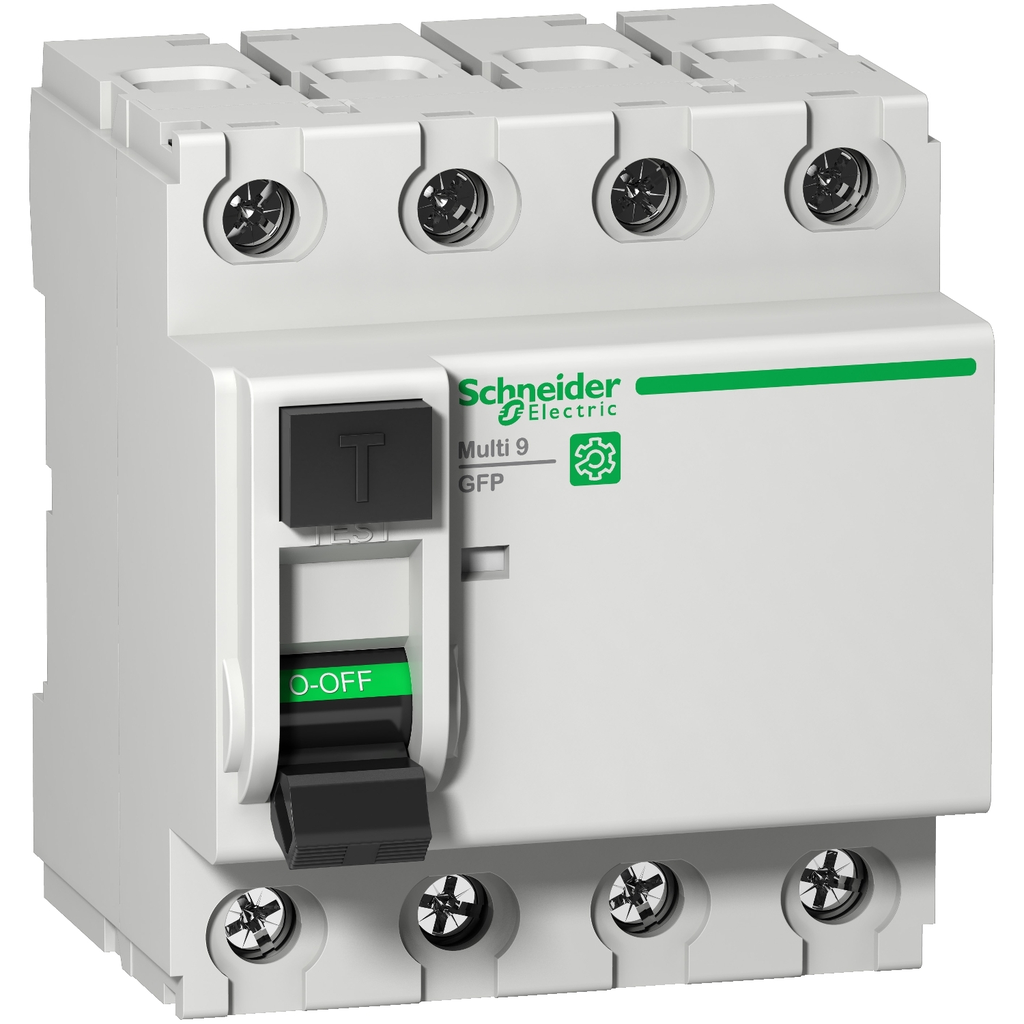

Multi9 - GFP - RCCB - 4P - 40A - class A SI - 480Y/277 V - 26 mA instantaneous

Multi9 - GFP - RCCB - 4P - 40A - class A SI - 480Y/277 V - 26 mA instantaneous

SQDM9R81440 M9R81440 785901764328
426.64 / EA
  • Amperage: 40 A
  • Certifications: IEC, UL
  • Country of Origin: Spain
  • Depth: 2.36 in, 60 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 61008-1, UL 1053
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 277 V, 415 V
  • Weight: 0.45 kg, 0.99 lb
  • Width: 2.83 in, 72 mm
This is a Multi GFP residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 40A, A-SI type protection class and a 26mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
  • Product Description
  • Specifications
This is a Multi GFP residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 40A, A-SI type protection class and a 26mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
  • Environment
    • IP Degree Of Protection : IP20IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
    • Standards : EN/IEC 61008-1 || UL 1053
    • Product Certifications : IEC || UL
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Tropicalisation : 2 conforming to IEC 60068-1
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Electromagnetic Compatibility : 8/20 µs impulse withstand, 3000 A conforming to EN/IEC 61008-1
    • Pollution Degree : 3
    • Ambient Air Temp For Op : -13…140 °F (-25…60 °C)
  • Complementary
    • Tightening Torque : 30.98 lbf.in (3.5 N.m) top or bottom
    • Contact Position Indicator : Yes
    • Depth : 2.36 in (60 mm)
    • Width : 2.83 in (72 mm)
    • Mounting Support : DIN rail
    • Height : 3.19 in (81 mm)
    • Colour : Gray
    • Local Signalling : ON, OFF, fault trip
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Connections - Terminals : Tunnel type terminals top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible || Tunnel type terminals top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid || Tunnel type terminals top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 3) - flexible with ferrule
    • Control Type : Toggle
    • Ui Rated Insulation Voltage : 440 V AC 50/60 Hz
    • Mechanical Durability : 20000 cycles
    • Mounting Mode : Clip-on
    • Product Weight : 0.99 lb(US) (0.45 kg)
    • Network Frequency : 50/60 Hz
    • 9 mm Pitches : 8
    • Locking Options Description : Padlocking in OFF position
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 61008-1
    • Ue Rated Operational Voltage : 480Y/277 V AC 60 Hz || 415 V AC 50 Hz
    • Rated Brking And Making Cap : Idm 1500 A EN/IEC 61008-1
    • Rtd Cond Short-Cct Current : Inc 10 kA 100 A gG
    • Resid Current Tripping Techno : Voltage independent
  • Main
    • Product Or Component Type : Residual current circuit breaker (RCCB)
    • Earth-Leak Protect Time Delay : Instantaneous
    • Poles Description : 4P
    • Device Short Name : GFP
    • Earth-Leakage Sensitivity : 26 mA UL 1053 || 30 mA EN/IEC 61008-1
    • Utilisation Category : AC-23A EN/IEC 61008-1
    • Network Type : AC
    • Range : Multi 9
    • Neutral Position : Left
    • Product Name : Multi 9 GFP
    • Device Application : Distribution
    • Earth-Leakage Protection Class : Type A-SI (Super Immunised)
    • In Rated Current : 40 A 104 °F (40 °C) EN/IEC 61008-1
  • Ordering And Shipping Details
    • Discount Schedule : DE2
    • Country Of Origin : ES
    • Returnability : Yes
    • Category : 00948 - M9 GEN 2 CB UL1077 / IEC
    • GTIN : 00785901764328
    • Nbr. Of Units In Pkg. : 1
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
