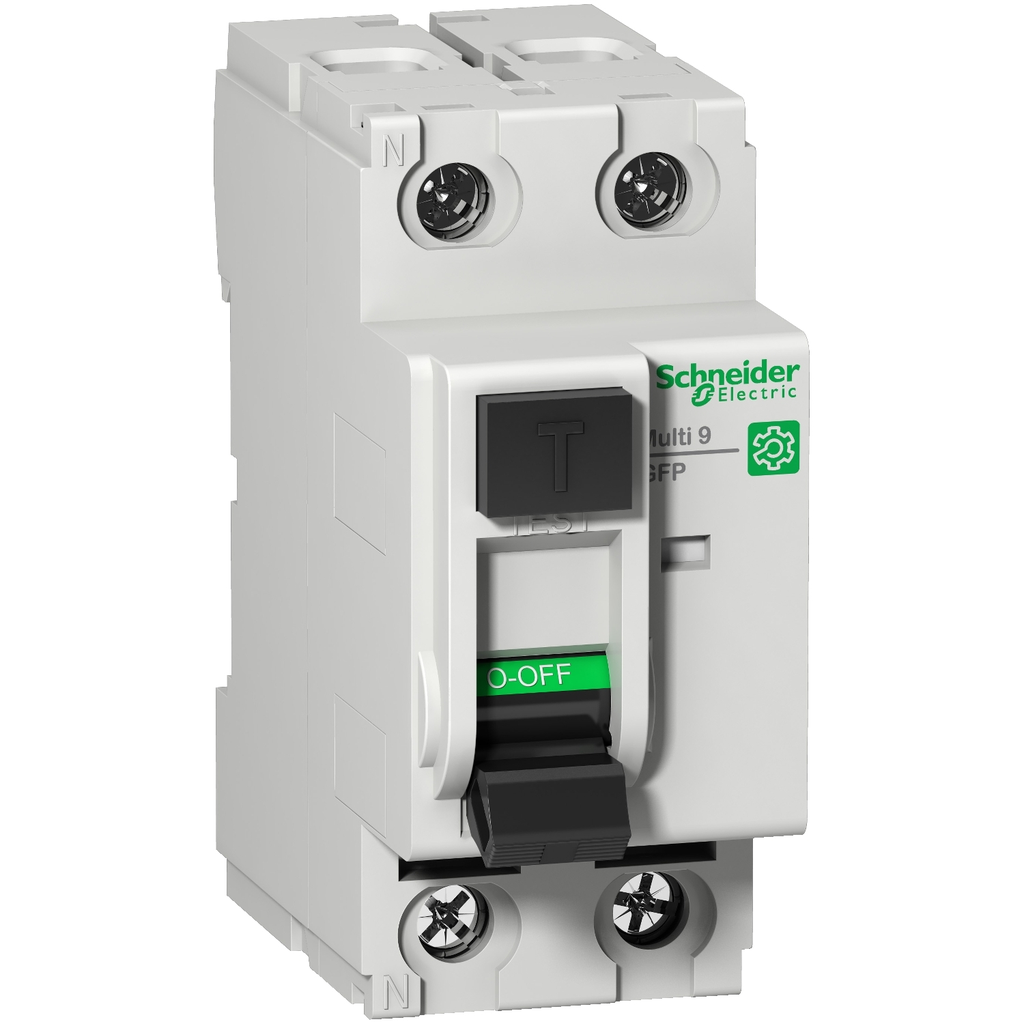

Residual current circuit breaker (RCCB), Multi9 GFP, 2P, 40A, A-SI type, 300mA

Residual current circuit breaker (RCCB), Multi9 GFP, 2P, 40A, A-SI type, 300mA

SQDM9R84240 M9R84240 3606481198457
434.26 / EA
http://schema.org/OutOfStock
  • Country of Origin: USA
  • Depth: 60 mm
  • Height: 81 mm
  • Net Weight: 0.22 kg
  • Weight: 0.22 kg
  • Width: 36 mm
This is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, A-SI type protection class and a 260mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
QTY
  • Product Description
  • Specifications
This is a Multi GFP residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, A-SI type protection class and a 260mA earth leakage sensitivity. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 60mm. The weight is 0.22kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
  • Environment
    • Ambient Air Temperature For Operation : -25-60 °C
    • Tropicalisation : 2 IEC 60068-1
    • Electromagnetic Compatibility : 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
    • Ip Degree Of Protection : IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
    • Pollution Degree : 3
    • Ambient Air Temperature For Storage : -40-70 °C
    • Relative Humidity : 95-95 % 55-55 °C
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2301023EN
    • Halogen Content Performance : Product contains halogen above thresholds
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 93d5f95e-203e-4b60-8a26-236a123bd123
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 42 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 42.24446579694523
  • Complementary
    • Network Frequency : 50/60 Hz
    • Height : 81 mm
    • Contact Position Indicator : yes
    • Locking Options Description : padlocking in OFF position
    • Mounting Support : DIN rail
    • 9 Mm Pitches : 4
    • Connections - Terminals : tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
    • Net Weight : 0.22 kg
    • Wire Stripping Length : 14 mm for top or bottom connection
    • Control Type : toggle
    • Residual Current Tripping Technology : voltage independent
    • [Ui] Rated Insulation Voltage : 440 V AC 50/60 Hz
    • Mounting Mode : clip-on
    • Rated Breaking And Making Capacity : Idm 1500 A EN/IEC 61008-1
    • Mechanical Durability : 20000 cycles
    • Local Signalling : ON, OFF, fault trip
    • [Uimp] Rated Impulse Withstand Voltage : 6 kVEN/IEC 61008-1
    • Color : Gray
    • Width : 36 mm
    • Depth : 60 mm
    • Tightening Torque : 3.5-3.5 N.m top or bottom
    • Rated Conditional Short-Circuit Current : Inc 10 kA 100 A gG
    • [Ue] Rated Operational Voltage : 120/240 V AC 60 Hz || 240 V AC 50 Hz
  • Specifications
    • Country of Origin : United States
    • Width : 36 mm
    • Height : 81 mm
    • Weight : 0.22 kg
    • Line Rated Current : 40 A 40 °C EN/IEC 61008-1
    • Network Type : AC
    • Standards : EN/IEC 61008-1 || UL 1053
    • Earth-Leakage Protection Class : type A-SI (Super Immunised)
    • Product Certifications : IEC || UL
    • Earth-Leakage Sensitivity : 260 mA UL 1053 || 300 mA EN/IEC 61008-1
    • Product Or Component Type : residual current circuit breaker (RCCB)
    • Product Name : Multi9 GFP
    • Utilisation Category : AC-23A EN/IEC 61008-1
    • Range : Multi9
    • Earth-Leakage Protection Time Delay : instantaneous
    • Poles Description : 2P
    • Neutral Position : left
    • Device Application : distribution
    • Device Short Name : GFP
