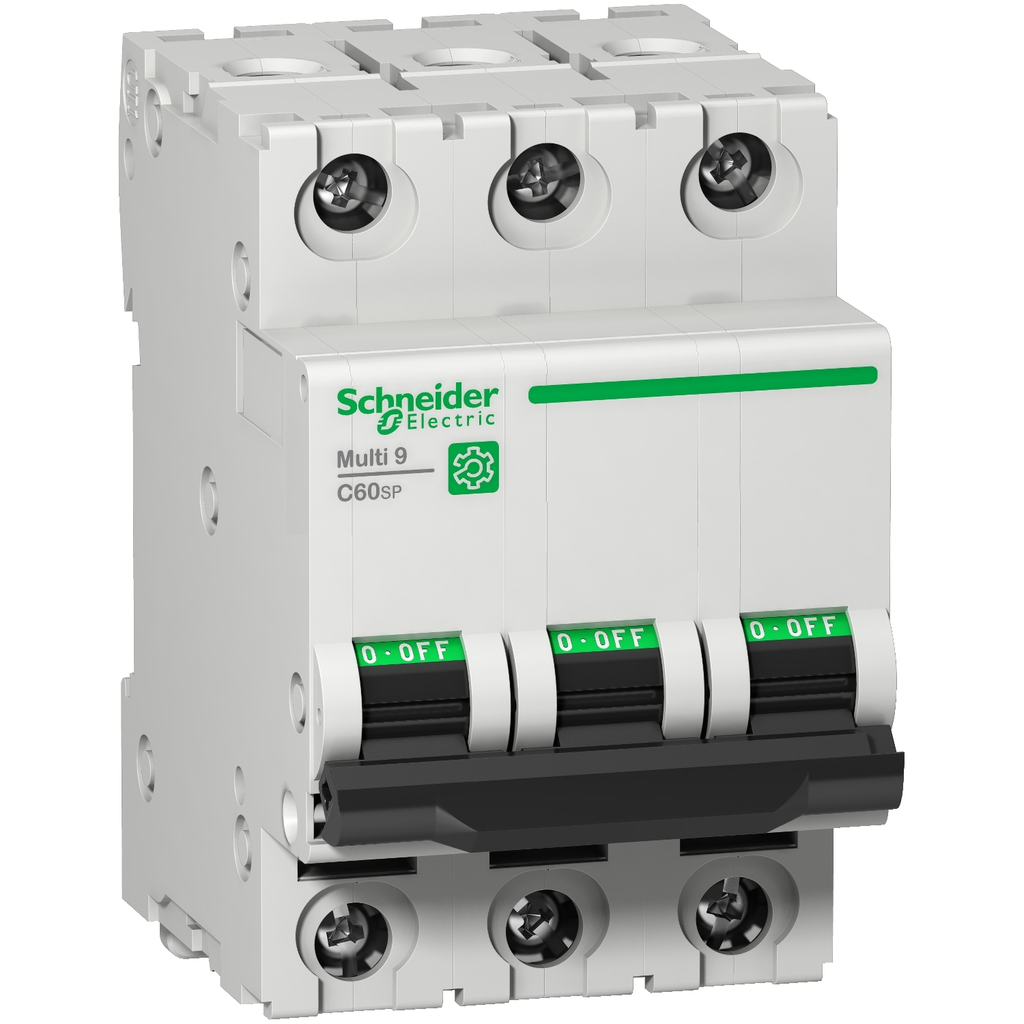

Miniature circuit breaker (MCB), Multi9 C60SP, 3P, 10A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)

MULTI9 C60SP 3P B 10A MCB

SQDM9F21310 M9F21310 3606481167941
315.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Miniature circuit breaker (MCB), Multi9 C60SP, 3P, 10A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)-1
  • Country of Origin: France
  • Depth: 2.83 in
  • Height: 3.19 in
  • Width: 2.13 in
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 10A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-
QTY
  • Product Description
  • Features
  • Specifications
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 10A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-
  • Connections Terminals
    • tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid
    • tunnel type terminal top or bottom) 1-25 mm² AW
  • Uimp Rated Impulse Withstand Voltage
    • 6 kVEN/IEC 60947-2
  • Prop 65
    • WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.016611277696957753
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 1.0272390377361367
    • 1 kg CO2 eq.
  • Standards
    • EN/IEC 60947-2
    • GB 14048.2
    • UL 1077
    • CSA C22.2 No 235
  • Ue Rated Operational Voltage
    • 240 V AC 50/60 Hz
    • 415 V AC 50/60 Hz
    • 440 V AC 50/60 Hz
  • Ui Rated Insulation Voltage
    • 500 V AC EN/IEC 60947-2
  • Ip Degree Of Protection
    • IP20 conforming to IEC 60529
    • IP40 (modular enclosure) conforming to IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 2 kg CO2 eq.
    • 2.359970612757773
  • Tropicalisation
    • 2 IEC 60068-1
  • Accessories
    • MGN26380
    • 26975
    • 26996
    • MGN26381
  • Ics Rated Service Breaking Capacity
    • 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC
    • 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC
    • 7.5 kA 75 % EN/IEC 60947-2
  • Persona Type Names
    • End User
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 31 kg CO2 eq.
    • 30.698884615384614
  • Line Rated Current
    • 10 A 25 °C EN/IEC 60947-2
  • Relative Humidity
    • 95-95 % 55-55 °C
  • Persona Type Ids
    • EU
    • OM
    • OM8
  • Auxiliaries
    • M9A26914
    • M9A26917
    • M9A26948
    • M9A26478
    • M9A26960
  • Magnetic Tripping Limit
    • 4 x In +/- 20 % AC
  • Wire Stripping Length
    • 14 mm for top or bottom connection
  • Carbon Footprint Of The Distribution Phase A4
    • 0.051193937117399106
    • 0.1 kg CO2 eq.
  • Tightening Torque
    • 2.5-2.5 N.m top or bottom
  • Suitability For Isolation
    • yes EN/IEC 60947-2
  • Product Certifications
    • IEC
    • CCC
    • UR
    • CSA
  • Physical Attributes
    • Color : Gray
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-15
    • Etim 10 : EC000042
    • Baan Price : 620.22
    • Baan Currency : USD
    • Device Type : LV equipment - Low voltage circuit breaker
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Average Life Duration : 15 year(s)
    • Manufacturing Carbon Footprint : 2.35997061275777
    • Distribution Carbon Footprint : 5.11939371173991e-02
    • Installation Carbon Footprint : 1.66112776969578e-02
    • Use Carbon Footprint : 30.6988846153846
    • End Of Life Carbon Footprint : 1.02723903773614
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1645
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : Multi9 OEM MCB
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : MCB
    • H And D Enrichment Class 3 : Circuit Breakers
    • H And D Enrichment Class 4 : MCB IEC 3P
    • H And Dod Responsibility : Multi9
    • H And Dod Platform : MCB
    • Contact Position Indicator : yes
    • Control Type : toggle
    • Curve Code : B
    • Device Application : distribution
    • Device Short Name : C60SP
    • Earth Leakage Protection : without
    • Electrical Durability : 10000 cycles
    • Energy Efficiency Optimized : False
    • Local Signalling : ON/OFF indication
    • Mechanical Durability : 20000 cycles
    • Mounting Mode : clip-on
    • Mounting Support : DIN rail
    • Network Type : AC
    • Number Of Protected Poles : 3
    • Package Weight Lbs : 337 g
    • Poles Description : 3P
    • Power Losses Per Pole : 1.9 W
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : miniature circuit-breaker
    • Provision For Padlocking : padlockable
    • Range : Multi9
    • Range Of Product : Multi9
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 34 kg CO2 eq.
    • Total Power Losses : 5.7 W
    • Trip Unit Technology : thermal-magnetic
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 34.39766843034884
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : miniature circuit-breaker
    • Range Of Product : Multi9
  • ETIM
    • ETIM 8 : EC000042
    • ETIM 9 : EC000042
  • Environment Attributes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 34.3976684303488
    • 9 Mm Pitches : 6
    • Ambient Air Temperature For Operation : -30-70 °C
    • Ambient Air Temperature For Storage : -40-80 °C
    • Environmental Disclosure : ENVPEP1304004EN
    • Eu Rohs Directive : Compliant
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : France
    • Height : 3.19 in
    • Width : 2.13 in
    • Depth : 2.83 in
