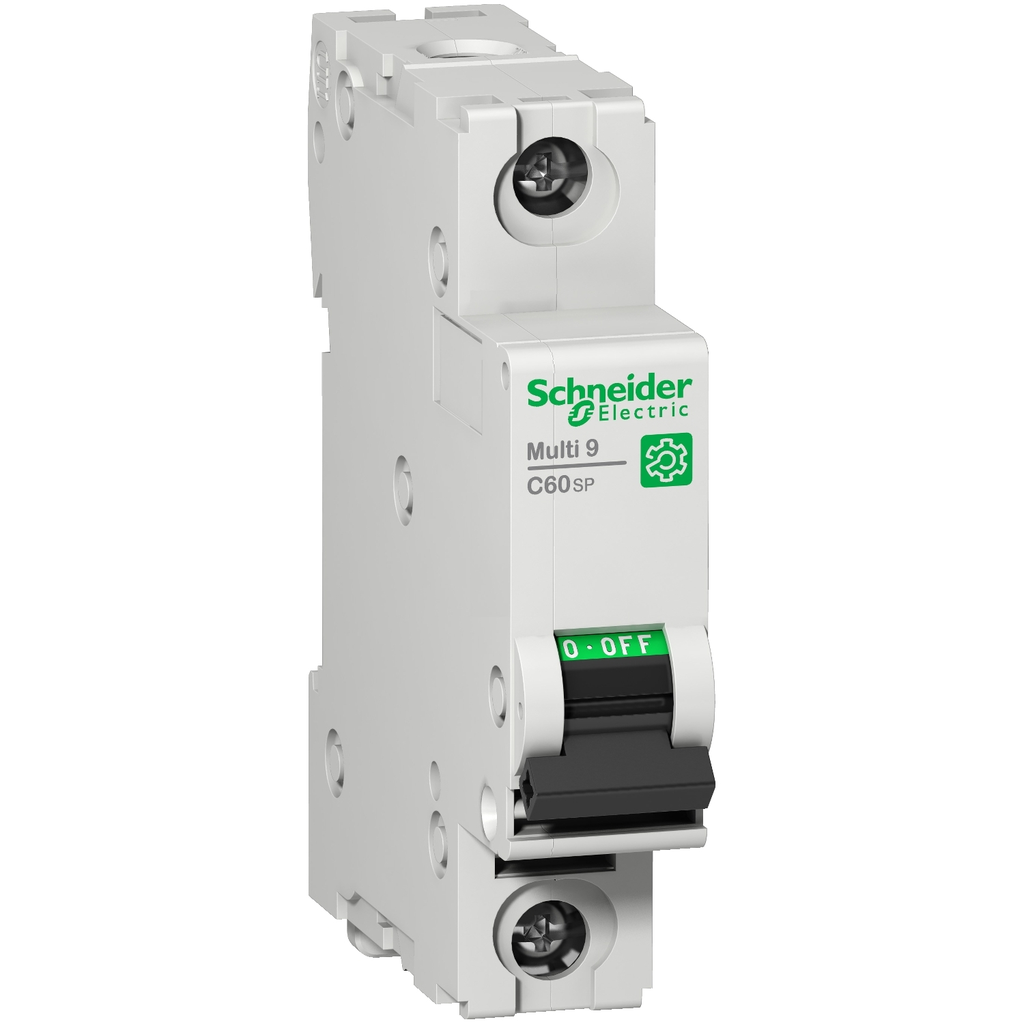

Multi9 - C60SP - MCB - 1P - 16 A - D Curve - 277 V - 10 kA - UL 1077

Multi9 - C60SP - MCB - 1P - 16 A - D Curve - 277 V - 10 kA - UL 1077

SQDM9F23116 M9F23116 785901718987
56.84 / EA
  • Amperage: 16 A
  • Certifications: CCC, CSA, IEC, UR
  • Country of Origin: France
  • Depth: 2.83 in, 72 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 240 V, 415 V, 60 V
  • Width: 0.71 in, 18 mm
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Offer Sustainability
    • Halogen Content Performance : Halogen free product
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
  • Complementary
    • Provision For Padlocking : Padlockable
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
    • Local Signalling : ON/OFF indication
    • Mounting Support : DIN rail
    • 9 mm Pitches : 2
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 8) - rigid || Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible with ferrule || Tunnel type terminal top or bottom) 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 8) - flexible
    • Mechanical Durability : 20000 cycles
    • Width : 0.71 in (18 mm)
    • Magnetic Tripping Limit : 12 x In +/- 20 % AC || 17 x In +/- 20 % DC
    • Height : 3.19 in (81 mm)
    • Earth-Leakage Protection : Without
    • Ui Rated Insulation Voltage : 500 V AC EN/IEC 60947-2
    • Electrical Durability : 10000 cycles
    • Tightening Torque : 22.13 lbf.in (2.5 N.m) top or bottom
    • Control Type : Toggle
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Mounting Mode : Clip-on
    • Contact Position Indicator : Yes
    • Depth : 2.83 in (72 mm)
    • Ics Rated Service Breaking Cap : 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC
    • Colour : Gray
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
  • Environment
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • Tropicalisation : 2 conforming to IEC 60068-1
    • IP Degree Of Protection : IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Pollution Degree : 3 EN/IEC 60947-2
  • Main
    • Suitability For ISOlation : Yes conforming to EN/IEC 60947-2
    • Poles Description : 1P
    • Standards : EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
    • Product Certifications : IEC || CCC || UR || CSA
    • Trip Unit Technology : Thermal-magnetic
    • Range : Multi 9
    • In Rated Current : 16 A 77 °F (25 °C) EN/IEC 60947-2
    • Product Name : Multi 9 C60
    • Curve Code : D
    • Network Type : DC || AC
    • Product Or Component Type : Miniature circuit-breaker
    • Number Of Protected Poles : 1
    • Breaking Capacity : 10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V DC CSA C22.2 No 235 || 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2
    • Device Short Name : C60SP
    • Device Application : Distribution
  • Ordering And Shipping Details
    • GTIN : 00785901718987
    • Category : 00948 - M9 GEN 2 CB UL1077 / IEC
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : FR
    • Discount Schedule : DE2
