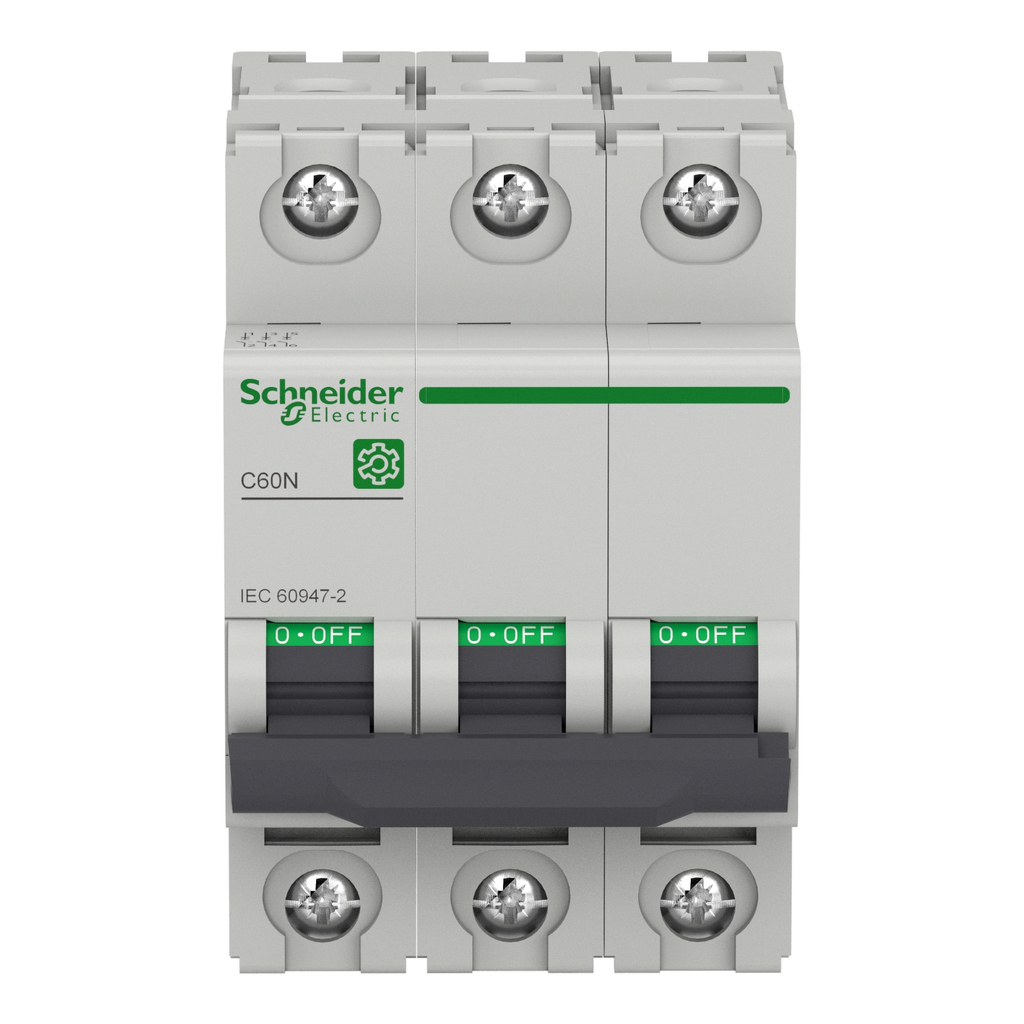

Multi9 - C60N - MCB - 3P - 40 A - C Curve - 415 V - 10 kA

Multi9 - C60N - MCB - 3P - 40 A - C Curve - 415 V - 10 kA

SQDM9F11340 M9F11340 785901340331
318.95 / EA
  • Amperage: 40 A
  • Certifications: CCC, EAC, KC
  • Country of Origin: France
  • Depth: 2.83 in, 72 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 125 V, 240 V, 415 V, 440 V
  • Weight: 0.36 kg, 0.79 lb
  • Width: 2.13 in, 54 mm
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 40A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 40A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Main
    • Range : Multi 9
    • Trip Unit Technology : Thermal-magnetic
    • Standards : EN/IEC 60947-2
    • Product Certifications : EAC || KC || CCC
    • Utilisation Category : Category A EN/IEC 60947-2
    • Breaking Capacity : 30 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
    • Product Name : Multi 9 C60
    • Number Of Protected Poles : 3
    • Product Or Component Type : Miniature circuit-breaker
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Curve Code : C
    • Network Type : DC || AC
    • In Rated Current : 40 A 122 °F (50 °C) EN/IEC 60947-2
    • Poles Description : 3P
    • Device Application : Distribution
    • Device Short Name : C60N
  • Offer Sustainability
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • Halogen Content Performance : Halogen free product
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Compliant
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Pollution Degree : 3 EN/IEC 60947-2
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • Overvoltage Category : IV
    • IP Degree Of Protection : IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
    • Heat Dissipation : 12.9 W 415 V - 40 A
    • Tropicalisation : 2 conforming to IEC 60068-1
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
  • Complementary
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.05 in² (1.5…35 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.05 in² (1.5…35 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.05 in² (1.5…35 mm²) - flexible with ferrule
    • Mounting Mode : Clip-on
    • Product Weight : 0.79 lb(US) (0.36 kg)
    • Tightening Torque : 30.98 lbf.in (3.5 N.m) top or bottom
    • Depth : 2.83 in (72 mm)
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
    • Limitation Class : 3
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • Ics Rated Service Breaking Cap : 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 30 kA 100 % EN/IEC 60947-2 - <= 125 V DC
    • Electrical Durability : 10000 cycles
    • Ui Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
    • Earth-Leakage Protection : Separate block
    • Colour : Gray
    • 9 mm Pitches : 6
    • Mounting Support : DIN rail
    • Local Signalling : ON/OFF indication
    • Height : 3.19 in (81 mm)
    • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
    • Control Type : Toggle
    • Mechanical Durability : 20000 cycles
    • Width : 2.13 in (54 mm)
    • Contact Position Indicator : Yes
    • Network Frequency : 50/60 Hz
    • Provision For Padlocking : Padlockable
  • Ordering And Shipping Details
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • GTIN : 00785901340331
    • Discount Schedule : DE2
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : FR
    • Returnability : No
