Multi9 - C60N - MCB - 2P - 16 A - D Curve - 415 V - 10 kA

Multi9 - C60N - MCB - 2P - 16 A - D Curve - 415 V - 10 kA

SQDM9F12216 M9F12216 360648057675
0.00 / EA
  • Amperage: 16 A
  • Certifications: CCC, EAC, KC
  • Country of Origin: Belgium
  • Depth: 2.83 in, 72 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 125 V, 240 V, 415 V, 440 V
  • Weight: 0.24 kg, 0.53 lb
  • Width: 1.42 in, 36 mm

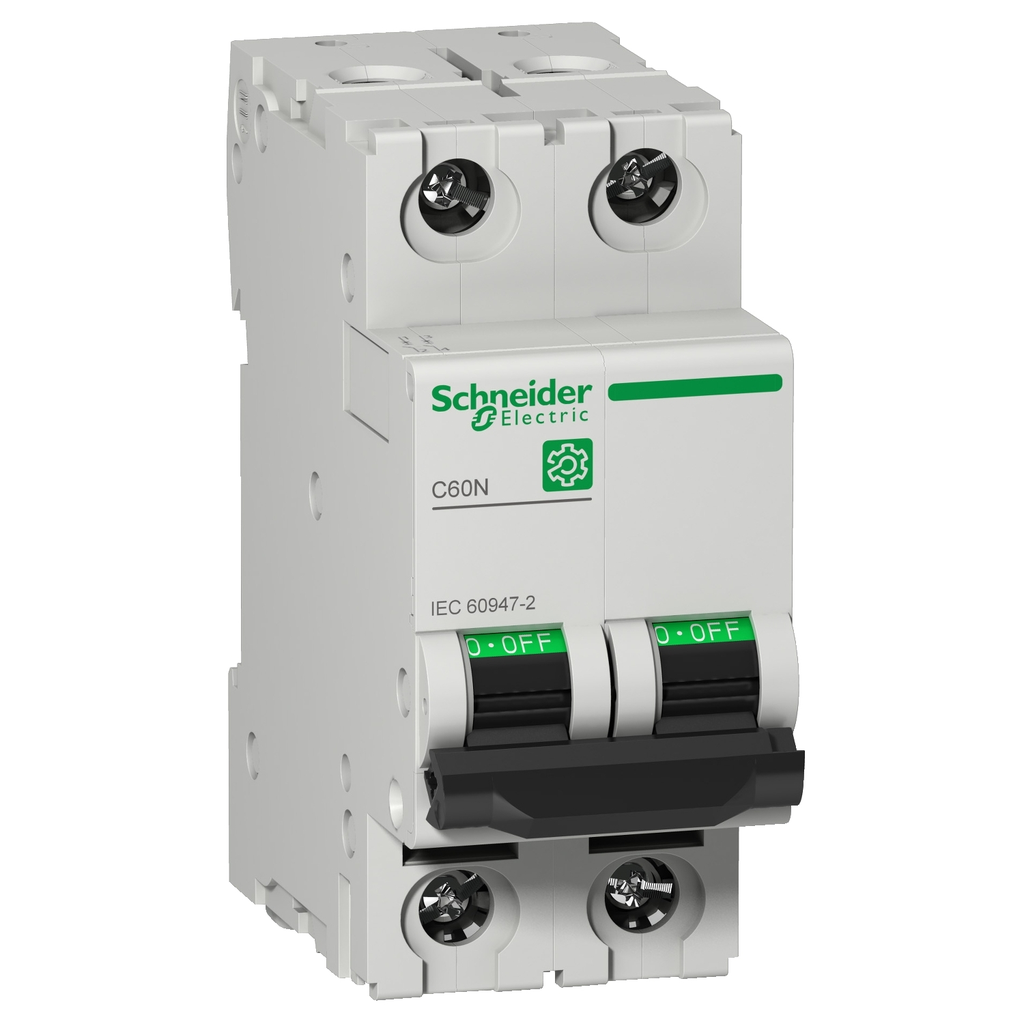

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 16A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Main
    • Breaking Capacity : 20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
    • Device Application : Distribution
    • Product Certifications : EAC || KC || CCC
    • Device Short Name : C60N
    • Utilisation Category : Category A EN/IEC 60947-2
    • Standards : EN/IEC 60947-2
    • In Rated Current : 16 A 122 °F (50 °C) EN/IEC 60947-2
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Product Name : Multi 9 C60
    • Trip Unit Technology : Thermal-magnetic
    • Product Or Component Type : Miniature circuit-breaker
    • Network Type : DC || AC
    • Number Of Protected Poles : 2
    • Curve Code : D
    • Range : Multi 9
    • Poles Description : 2P
  • Complementary
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • Mounting Support : DIN rail
    • Limitation Class : 3
    • Colour : Gray
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
    • Ics Rated Service Breaking Cap : 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
    • Magnetic Tripping Limit : 12 x In +/- 20 % AC || 17 x In +/- 20 % DC
    • Provision For Padlocking : Padlockable
    • Height : 3.19 in (81 mm)
    • Earth-Leakage Protection : Separate block
    • Network Frequency : 50/60 Hz
    • Width : 1.42 in (36 mm)
    • Depth : 2.83 in (72 mm)
    • Ui Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
    • Local Signalling : ON/OFF indication
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Mounting Mode : Clip-on
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • 9 mm Pitches : 4
    • Product Weight : 0.53 lb(US) (0.24 kg)
    • Contact Position Indicator : Yes
    • Control Type : Toggle
    • Mechanical Durability : 20000 cycles
    • Electrical Durability : 10000 cycles
  • Ordering And Shipping Details
    • Discount Schedule : DE2
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : BG
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • GTIN : 03606480576751
    • Returnability : Yes
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
    • Halogen Content Performance : Halogen free product
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
  • Environment
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • IP Degree Of Protection : IP20 conforming to IEC 60529 || IP40 modular enclosure)IEC 60529
    • Pollution Degree : 3 EN/IEC 60947-2
    • Tropicalisation : 2 IEC 60068-1
    • Overvoltage Category : IV
    • Heat Dissipation : 5 W 415 V - 16 A
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
