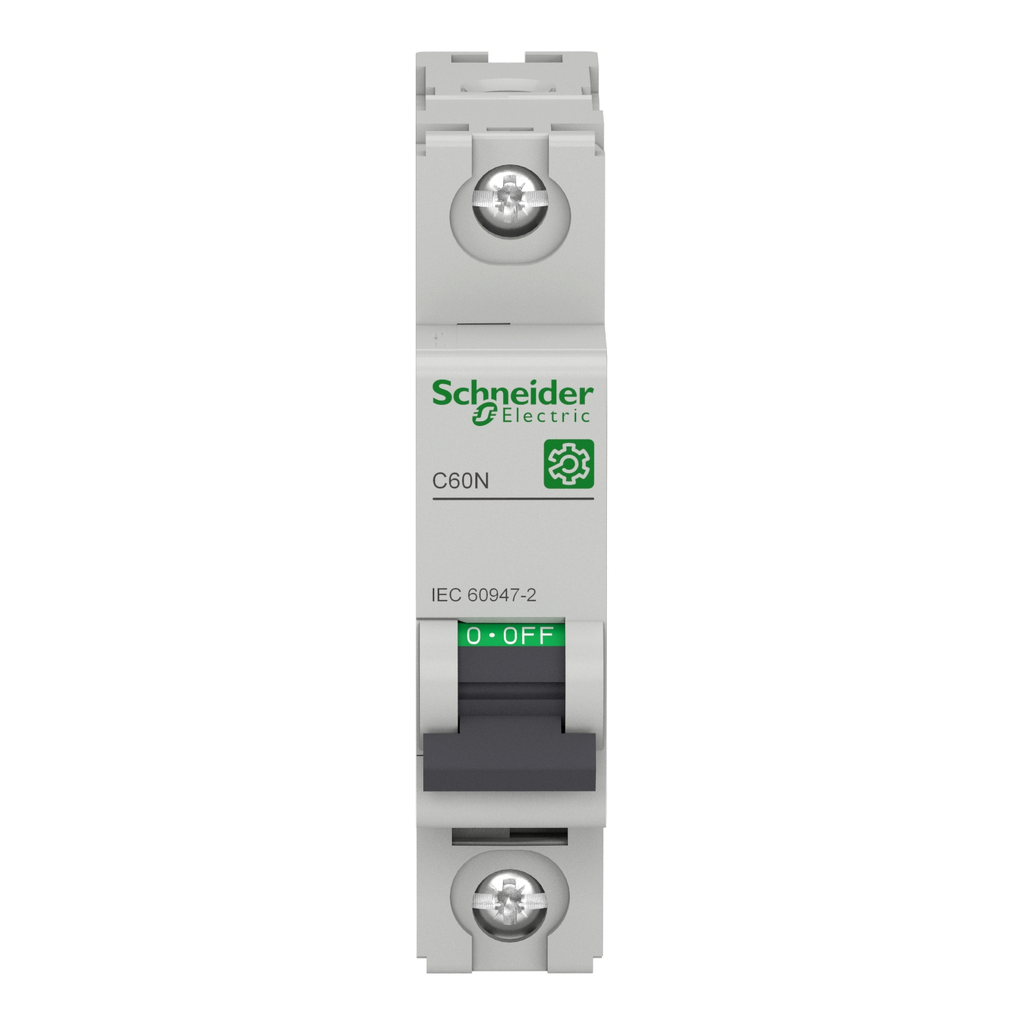

Multi9 - C60N - MCB - 1P - 25 A - C Curve - 240 V - 10 kA

MINIATURE CIRCUIT BREAKER 240/

SQDM9F11125 M9F11125 785901283553
95.68 / EA
  • Amperage: 25 A
  • Certifications: CCC, EAC, KC
  • Country of Origin: Belgium
  • Depth: 2.83 in, 72 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 240 V, 415 V, 72 V
  • Weight: 0.12 kg, 0.26 lb
  • Width: 0.71 in, 18 mm
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Offer Sustainability
    • Halogen Content Performance : Halogen free product
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Earth-Leakage Protection : Separate block
    • Network Frequency : 50/60 Hz
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • Electrical Durability : 10000 cycles
    • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
    • 9 mm Pitches : 2
    • Provision For Padlocking : Padlockable
    • Ics Rated Service Breaking Cap : 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 15 kA 100 % EN/IEC 60947-2 - <= 72 V DC
    • Colour : Gray
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
    • Contact Position Indicator : Yes
    • Product Weight : 0.26 lb(US) (0.12 kg)
    • Depth : 2.83 in (72 mm)
    • Mounting Support : DIN rail
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Mounting Mode : Clip-on
    • Control Type : Toggle
    • Local Signalling : ON/OFF indication
    • Width : 0.71 in (18 mm)
    • Limitation Class : 3
    • Height : 3.19 in (81 mm)
    • Mechanical Durability : 20000 cycles
    • Ui Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
  • Main
    • Product Certifications : EAC || KC || CCC
    • Device Application : Distribution
    • Curve Code : C
    • Standards : EN/IEC 60947-2
    • Product Name : Multi 9 C60
    • In Rated Current : 25 A 122 °F (50 °C) EN/IEC 60947-2
    • Network Type : DC || AC
    • Device Short Name : C60N
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Trip Unit Technology : Thermal-magnetic
    • Product Or Component Type : Miniature circuit-breaker
    • Range : Multi 9
    • Breaking Capacity : 15 kA Icu <= 72 V DC EN/IEC 60947-2 || 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
    • Number Of Protected Poles : 1
    • Utilisation Category : Category A EN/IEC 60947-2
    • Poles Description : 1P
  • Ordering And Shipping Details
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • Returnability : No
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : BG
    • GTIN : 00785901283553
    • Discount Schedule : DE2
  • Environment
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • IP Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
    • Pollution Degree : 3 EN/IEC 60947-2
    • Overvoltage Category : IV
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Tropicalisation : 2 IEC 60068-1
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • Heat Dissipation : 3.1 W 240 V - 25 A
