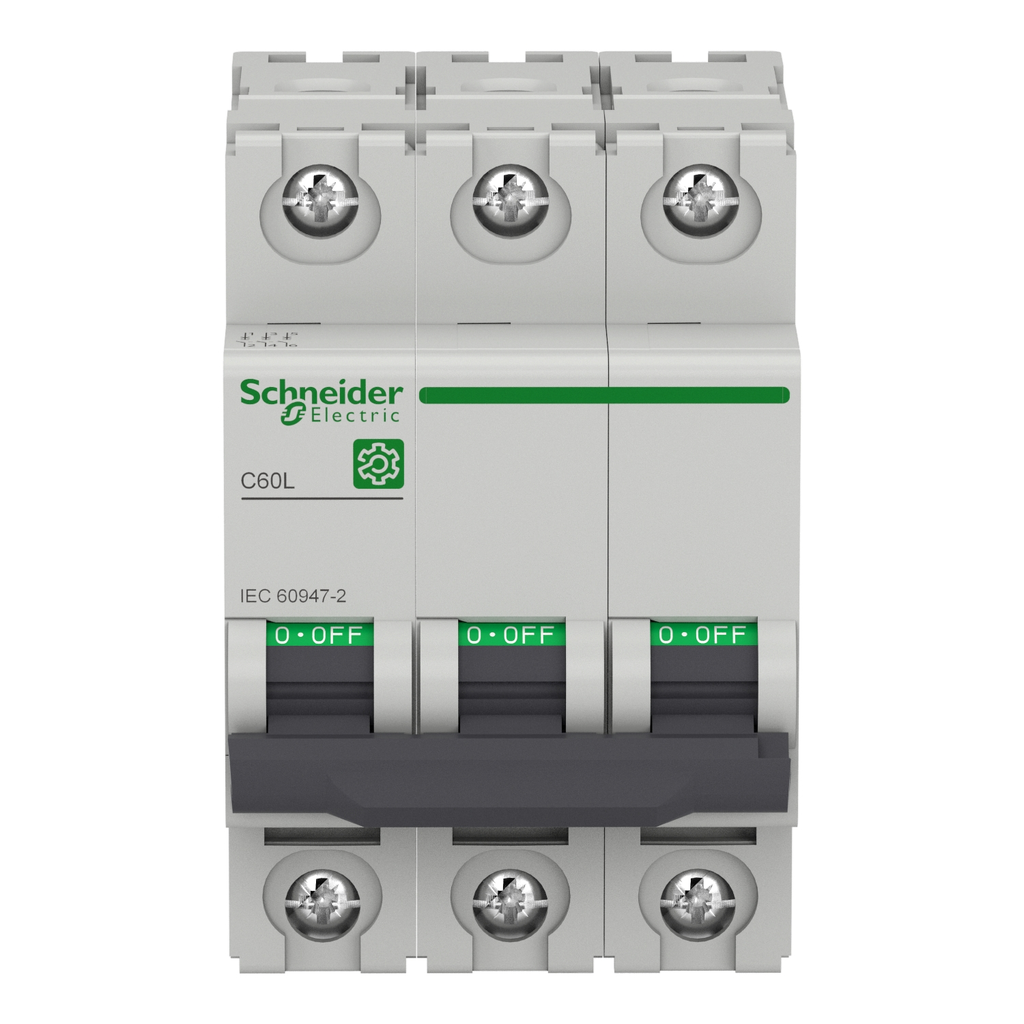

Multi9 - C60L - MCB - 3P - 16 A - C Curve - 415 V - 25 kA

Multi9 - C60L - MCB - 3P - 16 A - C Curve - 415 V - 25 kA

SQDM9F17316 M9F17316 785901773436
477.42 / EA
  • Amperage: 16 A
  • Certifications: CCC, EAC
  • Country of Origin: France
  • Depth: 2.83 in, 72 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 125 V, 240 V, 415 V, 440 V
  • Weight: 0.36 kg, 0.79 lb
  • Width: 2.13 in, 54 mm
This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Complementary
    • Width : 2.13 in (54 mm)
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
    • Provision For Padlocking : Padlockable
    • 9 mm Pitches : 6
    • Local Signalling : ON/OFF indication
    • Earth-Leakage Protection : Separate block
    • Mounting Mode : Clip-on
    • Control Type : Toggle
    • Ics Rated Service Breaking Cap : 25 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 12.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 10 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 50 kA 100 % EN/IEC 60947-2 - <= 125 V DC
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • Depth : 2.83 in (72 mm)
    • Electrical Durability : 10000 cycles
    • Limitation Class : 3
    • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
    • Product Weight : 0.79 lb(US) (0.36 kg)
    • Colour : Gray
    • Ui Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
    • Mechanical Durability : 20000 cycles
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Height : 3.19 in (81 mm)
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
    • Network Frequency : 50/60 Hz
    • Mounting Support : DIN rail
    • Contact Position Indicator : Yes
  • Ordering And Shipping Details
    • GTIN : 00785901773436
    • Country Of Origin : FR
    • Discount Schedule : DE2
    • Returnability : No
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • Nbr. Of Units In Pkg. : 4
  • Main
    • Device Application : Distribution
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Product Certifications : EAC || CCC
    • Product Or Component Type : Miniature circuit-breaker
    • Network Type : DC || AC
    • In Rated Current : 16 A 122 °F (50 °C) EN/IEC 60947-2
    • Trip Unit Technology : Thermal-magnetic
    • Utilisation Category : Category A EN/IEC 60947-2
    • Curve Code : C
    • Device Short Name : C60L
    • Product Name : Multi 9 C60
    • Range : Multi 9
    • Poles Description : 3P
    • Number Of Protected Poles : 3
    • Breaking Capacity : 50 kA Icu <= 125 V DC EN/IEC 60947-2 || 50 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 25 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
    • Standards : EN/IEC 60947-2
  • Offer Sustainability
    • Halogen Content Performance : Halogen free plastic parts & cables product
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
  • Environment
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Overvoltage Category : IV
    • Heat Dissipation : 7.5 W 415 V - 16 A
    • Tropicalisation : 2 IEC 60068-1
    • IP Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
    • Pollution Degree : 3 EN/IEC 60947-2
