Multi9 - C60L - MCB - 2P - 25 A - C Curve - 415 V - 25 kA

Multi9 - C60L - MCB - 2P - 25 A - C Curve - 415 V - 25 kA

SQDM9F17225 M9F17225 360648057807
0.00 / EA
  • Amperage: 25 A
  • Certifications: CCC, EAC
  • Country of Origin: France
  • Depth: 2.83 in, 72 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 125 V, 240 V, 415 V, 440 V
  • Weight: 0.24 kg, 0.53 lb
  • Width: 1.42 in, 36 mm

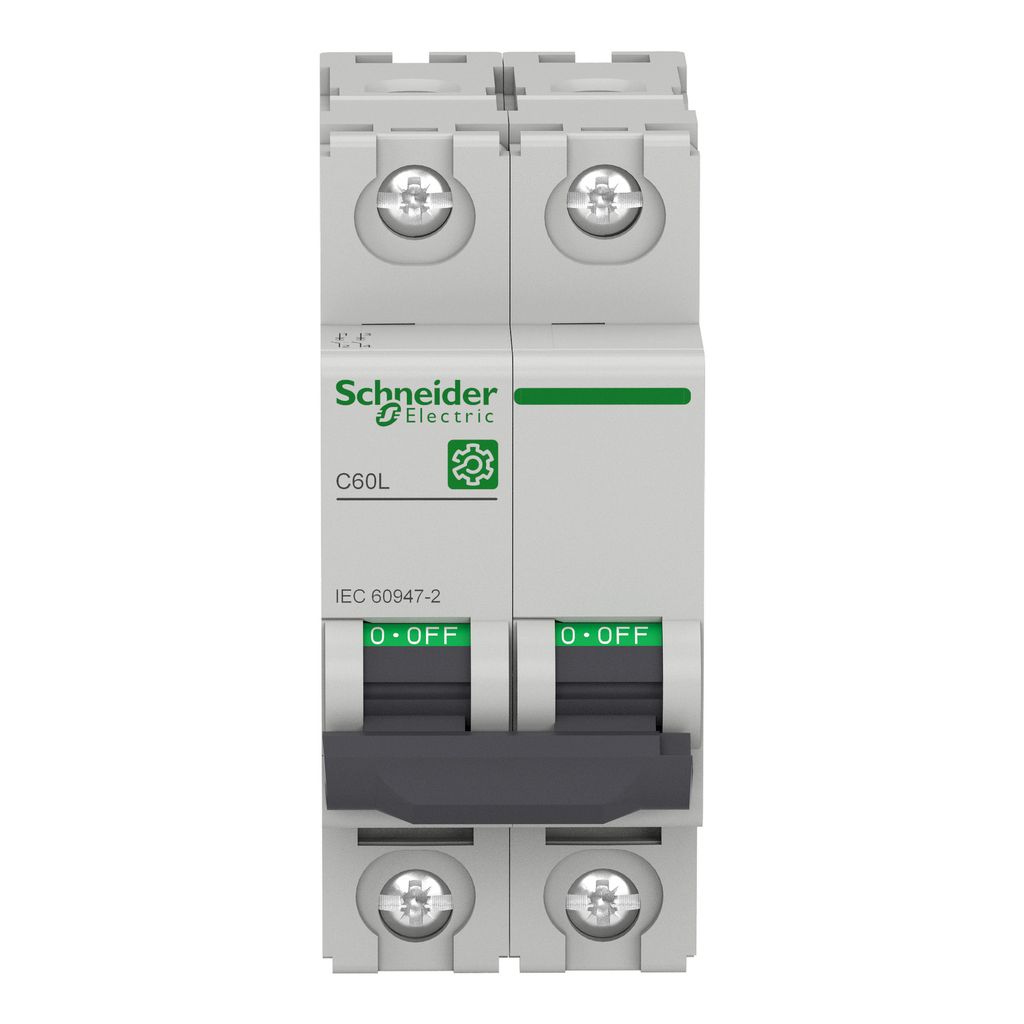

This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Environment
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • IP Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
    • Overvoltage Category : IV
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Tropicalisation : 2 IEC 60068-1
    • Heat Dissipation : 6.2 W 415 V - 25 A
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • Pollution Degree : 3 EN/IEC 60947-2
  • Ordering And Shipping Details
    • Country Of Origin : FR
    • Returnability : No
    • Category : 00908 - C60N SUPPLEMENTARY PROTECTORS
    • Discount Schedule : DE2
    • GTIN : 03606480578076
    • Nbr. Of Units In Pkg. : 1
  • Offer Sustainability
    • Halogen Content Performance : Halogen free plastic parts & cables product
    • Mercury Free : Yes
    • EU RoHs Directive : Compliant
    • Green Premium Status : Green Premium product
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Main
    • Poles Description : 2P
    • Product Certifications : EAC || CCC
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Breaking Capacity : 50 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 25 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2 || 30 kA Icu <= 125 V DC 50/60 Hz EN/IEC 60947-2
    • Curve Code : C
    • Number Of Protected Poles : 2
    • Range : Multi 9
    • Network Type : AC || DC
    • Product Or Component Type : Miniature circuit-breaker
    • Device Short Name : C60L
    • In Rated Current : 25 A 122 °F (50 °C) EN/IEC 60947-2
    • Standards : EN/IEC 60947-2
    • Device Application : Distribution
    • Product Name : Multi 9 C60
    • Utilisation Category : Category A EN/IEC 60947-2
    • Trip Unit Technology : Thermal-magnetic
  • Complementary
    • Electrical Durability : 10000 cycles
    • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
    • Colour : Gray
    • Local Signalling : ON/OFF indication
    • 9 mm Pitches : 4
    • Contact Position Indicator : Yes
    • Ui Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
    • Width : 1.42 in (36 mm)
    • Product Weight : 0.53 lb(US) (0.24 kg)
    • Limitation Class : 3
    • Network Frequency : 50/60 Hz
    • Provision For Padlocking : Padlockable
    • Depth : 2.83 in (72 mm)
    • Mounting Support : DIN rail
    • Ics Rated Service Breaking Cap : 25 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 12.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 10 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 30 kA 100 % EN/IEC 60947-2 - <= 125 V DC
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
    • Mounting Mode : Clip-on
    • Earth-Leakage Protection : Separate block
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Height : 3.19 in (81 mm)
    • Control Type : Toggle
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - rigid || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) - flexible with ferrule
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • Mechanical Durability : 20000 cycles
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
