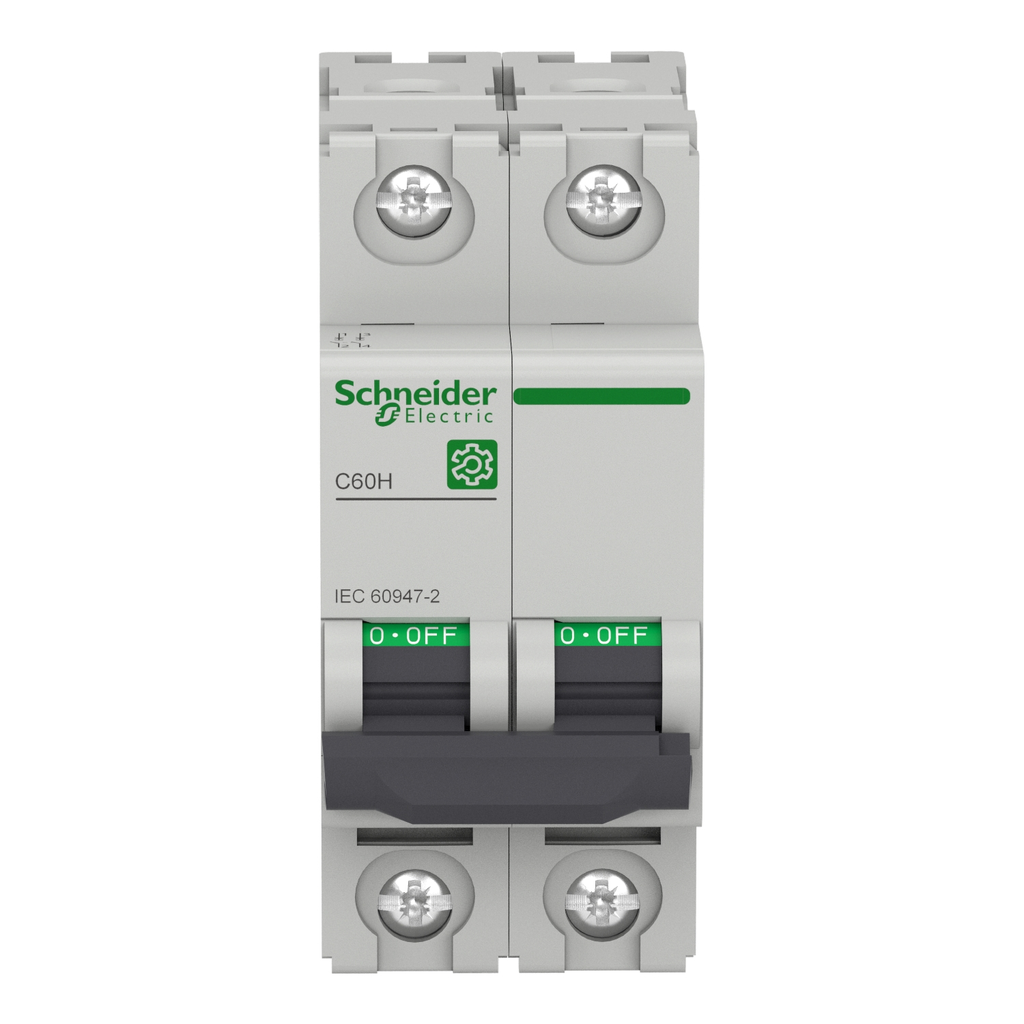

Multi9 - C60H - MCB - 2P - 20 A - C Curve - 415 V - 15 kA

MINIATURE CIRCUIT BREAKER 240/

SQDM9F14220 M9F14220 785901562917
268.11 / EA
  • Certifications: CCC, EAC
  • Depth: 72 mm
  • Height: 81 mm
  • Line Rated Current: 20 A, 50 °C
  • Mounting Type: Clip-On
  • Net Weight: 0.24 kg
  • Operating Temperature: -30-70 °C
  • Standard: EN/IEC 60947-2
  • Storage Temperature: -40-80 °C
  • Strip Length: 14 mm
  • Width: 36 mm
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 20A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 20A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • [Ui] Rated Insulation Voltage : 500 V AC 50/60 Hz EN/IEC 60947-2
  • Relative Humidity : 95-95 % 55-55 °C
  • Trip Unit Technology : thermal-magnetic
  • Product Name : Multi 9 C60
  • Suitability For Isolation : yes EN/IEC 60947-2
  • Heat Dissipation : 6-6 W 415 V - 20 A
  • Tropicalisation : 2 IEC 60068-1
  • [Ics] Rated Service Breaking Capacity : 15 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 7.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 25 kA 100 % EN/IEC 60947-2 - <= 125 V DC
  • Connections - Terminals : tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
  • Mounting Mode : clip-on
  • 9 Mm Pitches : 4
  • Line Rated Current : 20 A 50 °C EN/IEC 60947-2
  • Color : Gray
  • Provision For Padlocking : padlockable
  • Device Short Name : C60H
  • Ambient Air Temperature For Storage : -40-80 °C
  • Breaking Capacity Code : H
  • Overvoltage Category : IV
  • Ip Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
  • Tightening Torque : 2-2 N.m top or bottom
  • Product Or Component Type : miniature circuit-breaker
  • Local Signalling : ON/OFF indication
  • Network Frequency : 50/60 Hz
  • Wire Stripping Length : 14 mm top or bottom
  • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
  • Mounting Support : DIN rail
  • Range Of Product : Multi 9
  • Utilisation Category : category A EN/IEC 60947-2
  • Ambient Air Temperature For Operation : -30-70 °C
  • Maximum Width : 36 mm
  • Network Type : DC || AC
  • Control Type : toggle
  • Standards : EN/IEC 60947-2
  • Product Certifications : EAC || CCC
  • Poles Description : 2P
  • Number Of Protected Poles : 2
  • Device Application : distribution
  • Net Weight : 0.24 kg
  • Contact Position Indicator : yes
  • Breaking Capacity : 25 kA Icu <= 125 V DC EN/IEC 60947-2 || 30 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 15 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 10 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
  • Earth-Leakage Protection : separate block
  • Curve Code : C
  • Mechanical Durability : 20000 cycles
  • Maximum Depth : 72 mm
  • Range : Multi 9
  • [Uimp] Rated Impulse Withstand Voltage : 6 kVEN/IEC 60947-2
  • Electrical Durability : 10000 cycles
  • [Ue] Rated Operational Voltage : 240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
  • Pollution Degree : 3 EN/IEC 60947-2
  • Maximum Height : 81 mm
