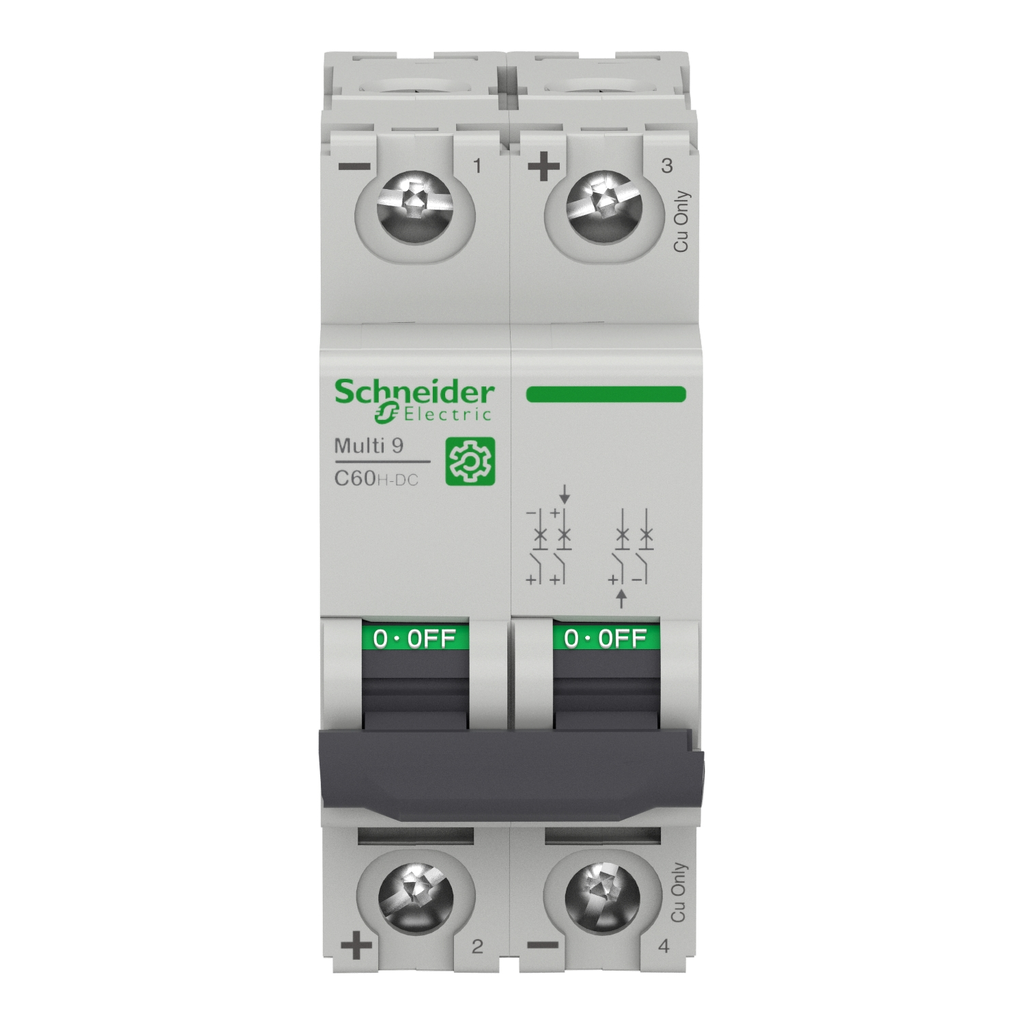

Multi9 - C60H-DC - MCB - 2P - 10 A - C Curve - 500 V DC - 10 kA

Multi9 - C60H-DC - MCB - 2P - 10 A - C Curve - 500 V DC - 10 kA

SQDM9U21210 M9U21210 785901776024
220.64 / EA
  • Certifications: CCC, IEC, UR
  • Depth: 73 mm
  • Height: 81 mm
  • Line Rated Current: 10 A, 25 °C
  • Net Weight: 0.128 kg
  • Standard: EN/IEC 60947-2, GB 14048.2, UL 1077
  • Storage Temperature: -40-85 °C
  • Strip Length: 14 mm
  • Width: 36 mm
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to EN/IEC 60947-2 standard and 20kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
  • Product Description
  • Specifications
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 2P circuit breaker with 2 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to EN/IEC 60947-2 standard and 20kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
  • Product Or Component Type : miniature circuit-breaker
  • Trip Unit Technology : thermal-magnetic
  • [Ui] Rated Insulation Voltage : 500 V DC EN/IEC 60947-2
  • Product Certifications : IEC || CCC || UR
  • Net Weight : 0.128 kg
  • Pollution Degree : 3 EN/IEC 60947-2
  • Device Short Name : C60H-DC
  • Maximum Height : 81 mm
  • Maximum Width : 36 mm
  • Mounting Mode : clip-on
  • Wire Stripping Length : 14 mm top or bottom
  • Line Rated Current : 10 A 25 °C EN/IEC 60947-2
  • Number Of Protected Poles : 2
  • Ip Degree Of Protection : IP20IEC 60529 || IP40 modular enclosure)IEC 60529
  • Earth-Leakage Protection : without
  • Electrical Durability : 3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC
  • Local Signalling : ON/OFF indication
  • [Ics] Rated Service Breaking Capacity : 7.5 kA 75 % EN/IEC 60947-2 - 440 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 500 V DC || 15 kA 75 % EN/IEC 60947-2 - 220 V DC || 7.5 kA 75 % GB 14048.2 - 440 V DC || 4.5 kA 75 % GB 14048.2 - 500 V DC || 15 kA 75 % GB 14048.2 - 220 V DC
  • Product Name : Multi 9 C60H-DC
  • Relative Humidity : 95-95 % 55-55 °C
  • Curve Code : C
  • Device Application : distribution
  • Connections - Terminals : tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 4) - rigid stranded || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 6) - flexible with ferrule || tunnel type terminal top or bottom) - 2 1-10 mm² AWG 18...AWG 8) - rigid stranded || tunnel type terminal top or bottom) - 2 1-10 mm² AWG 18...AWG 8) - flexible || tunnel type terminal top or bottom) - 2 1-10 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) - 3 1-1 mm² AWG 18) - flexible stranded
  • Control Type : toggle
  • Mechanical Durability : 20000 cycles
  • Suitability For Isolation : yes EN/IEC 60947-2
  • Heat Dissipation : 3.6-3.6 W 440 V - 10 A
  • 9 Mm Pitches : 4
  • [Uimp] Rated Impulse Withstand Voltage : 6 kVEN/IEC 60947-2
  • Range : Multi 9
  • Maximum Depth : 73 mm
  • Standards : EN/IEC 60947-2 || GB 14048.2 || UL 1077
  • Contact Position Indicator : yes
  • Color : Gray
  • Range Of Product : Multi 9
  • Magnetic Tripping Limit : 7...10 x In DC
  • [Ue] Rated Operational Voltage : 220 V DC || 440 V DC || 500 V DC
  • Breaking Capacity : 20 kA Icu 220 V DC EN/IEC 60947-2 || 10 kA Icu 440 V DC EN/IEC 60947-2 || 6 kA Icu 500 V DC EN/IEC 60947-2 || 5 kA AIR 12...500 V DC UL 1077 || 20 kA Icu 220 V DC GB 14048.2 || 10 kA Icu 440 V DC GB 14048.2 || 6 kA Icu 500 V DC GB 14048.2
  • Breaking Capacity Code : H
  • Provision For Padlocking : padlockable
  • Ambient Air Temperature For Operation : -25-70 °C
  • Mounting Support : DIN rail
  • Poles Description : 2P
  • Network Type : DC
  • Tropicalisation : 2 IEC 60068-2 || 2 GB 14048.2
  • Utilisation Category : category A EN/IEC 60947-2
  • Ambient Air Temperature For Storage : -40-85 °C
  • Tightening Torque : 2.5-2.5 N.m top or bottom
