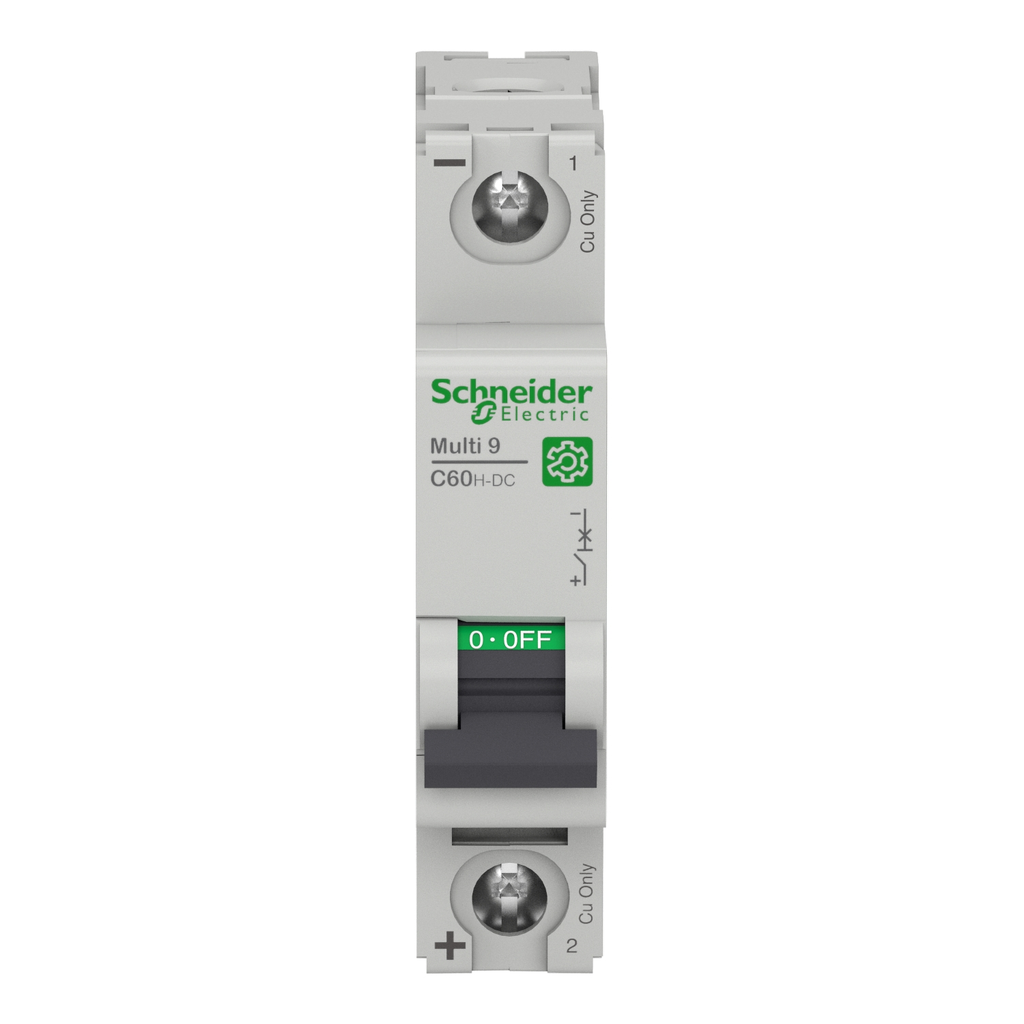

Multi9 - C60H-DC - MCB - 1P - 63 A - D Curve - 250 V DC - 10 kA

Multi9 - C60H-DC - MCB - 1P - 63 A - D Curve - 250 V DC - 10 kA

SQDM9U31163 M9U31163 785901777861
124.39 / EA
  • Amperage: 63 A
  • Certifications: CCC, IEC, UR
  • Country of Origin: China
  • Depth: 2.87 in, 73 mm
  • Height: 3.19 in, 81 mm
  • Mounting Type: Clip-On
  • Standard: EN/IEC 60947-2, GB 14048.2, UL 1077
  • Strip Length: 0.55 in, 14 mm
  • Voltage: 110 V, 220 V, 250 V
  • Weight: 0.128 kg, 0.28 lb
  • Width: 0.71 in, 18 mm
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 63A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
  • Product Description
  • Specifications
This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 63A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
  • Environment
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Pollution Degree : 3 EN/IEC 60947-2
    • Tropicalisation : 2 IEC 60068-2 || 2 GB 14048.2
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
    • Heat Dissipation : 6.1 W 220 V - 63 A
    • IP Degree Of Protection : IP20 conforming to IEC 60529 || IP40 modular enclosure)IEC 60529
  • Main
    • Product Certifications : IEC || CCC || UR
    • Device Short Name : C60H-DC
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • Product Or Component Type : Miniature circuit-breaker
    • Network Type : DC
    • Poles Description : 1P
    • Number Of Protected Poles : 1
    • In Rated Current : 63 A 77 °F (25 °C) EN/IEC 60947-2
    • Trip Unit Technology : Thermal-magnetic
    • Standards : EN/IEC 60947-2 || GB 14048.2 || UL 1077
    • Device Application : Distribution
    • Utilisation Category : Category A EN/IEC 60947-2
    • Breaking Capacity : 10 kA Icu 220 V DC EN/IEC 60947-2 || 6 kA Icu 250 V DC EN/IEC 60947-2 || 20 kA Icu 110 V DC EN/IEC 60947-2 || 5 kA AIR 12...250 V DC UL 1077 || 10 kA Icu 220 V DC GB 14048.2 || 6 kA Icu 250 V DC GB 14048.2 || 20 kA Icu 110 V DC GB 14048.2
    • Range : Multi 9
    • Product Name : Multi 9 C60H-DC
    • Curve Code : D
  • Offer Sustainability
    • REACh Free Of SVHC : Yes
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • EU RoHs Directive : Compliant
  • Complementary
    • Control Type : Toggle
    • Depth : 2.87 in (73 mm)
    • Ue Rated Operational Voltage : 250 V DC || 110 V DC || 220 V DC
    • Connections - Terminals : Tunnel type terminal top or bottom) 0.00…0.05 in² (1…35 mm²) AWG 18...AWG 2) - rigid stranded || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 4) - flexible || Tunnel type terminal top or bottom) 0.00…0.04 in² (1…25 mm²) AWG 18...AWG 4) - flexible with ferrule || Tunnel type terminal top or bottom) - 2 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - rigid stranded || Tunnel type terminal top or bottom) - 2 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - flexible || Tunnel type terminal top or bottom) - 2 0.00…0.02 in² (1…16 mm²) AWG 18...AWG 6) - flexible with ferrule || Tunnel type terminal top or bottom) - 3 0.01 in² (4 mm²) AWG 6) - flexible stranded
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • 9 mm Pitches : 2
    • Ics Rated Service Breaking Cap : 7.5 kA 75 % EN/IEC 60947-2 - 220 V DC || 4.5 kA 75 % EN/IEC 60947-2 - 250 V DC || 15 kA 75 % EN/IEC 60947-2 - 110 V DC || 7.5 kA 75 % GB 14048.2 - 220 V DC || 4.5 kA 75 % GB 14048.2 - 250 V DC || 15 kA 75 % GB 14048.2 - 110 V DC
    • Electrical Durability : 3000 cycles 250 V DC L/R = 2 ms || 6000 cycles 250 V DC
    • Tightening Torque : 30.98 lbf.in (3.5 N.m) top or bottom
    • Colour : Gray
    • Mounting Mode : Clip-on
    • Height : 3.19 in (81 mm)
    • Earth-Leakage Protection : Without
    • Contact Position Indicator : Yes
    • Mounting Support : DIN rail
    • Wire Stripping Length : 0.55 in (14 mm) top or bottom
    • Mechanical Durability : 20000 cycles
    • Ui Rated Insulation Voltage : 500 V DC EN/IEC 60947-2
    • Product Weight : 0.28 lb(US) (0.128 kg)
    • Local Signalling : ON/OFF indication
    • Magnetic Tripping Limit : 10...14 x In DC
    • Provision For Padlocking : Padlockable
    • Width : 0.71 in (18 mm)
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : DE2
    • Country Of Origin : CN
    • GTIN : 00785901777861
    • Category : 00948 - M9 GEN 2 CB UL1077 / IEC
    • Returnability : No
