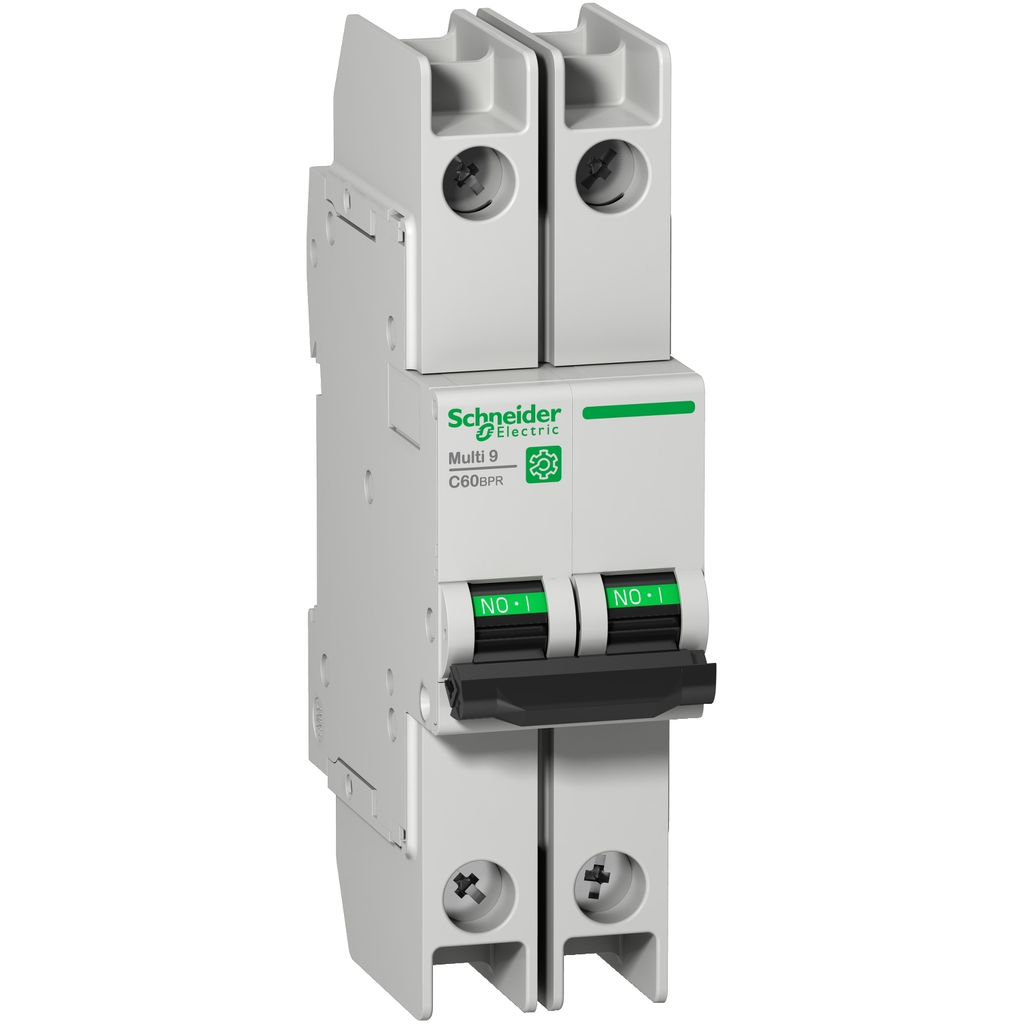

Multi 9 - C60BPR - MCB - 2P - 63 A - C Curve - 240 V - 10 kA - UL 489

Multi 9 - C60BPR - MCB - 2P - 63 A - C Curve - 240 V - 10 kA - UL 489

SQDM9F52263 M9F52263 785901129936
153.66 / EA
  • Amperage: 63 A
  • Certifications: CCC, CSA, IEC, UL
  • Country of Origin: France
  • Depth: 2.83 in, 72 mm
  • Height: 127 mm, 5 in
  • Mounting Type: Clip-On
  • Standard: CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489
  • Voltage: 240 V, 415 V, 440 V
  • Width: 1.42 in, 36 mm
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Ordering And Shipping Details
    • Category : 00949 - M9 GEN 2 CB UL489
    • GTIN : 00785901129936
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : DE2
    • Country Of Origin : FR
    • Returnability : No
  • Environment
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • IP Degree Of Protection : IP20 conforming to IEC 60529 || IP40 modular enclosure)IEC 60529
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Overvoltage Category : IV
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • Pollution Degree : 3 EN/IEC 60947-2
    • Tropicalisation : 2 IEC 60068-1
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Compliant
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
  • Main
    • Range : Multi 9
    • Product Or Component Type : Miniature circuit-breaker
    • Trip Unit Technology : Thermal-magnetic
    • Poles Description : 2P
    • Curve Code : C
    • Breaking Capacity : 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 10 kA AIR 240 V AC UL 489 || 10 kA AIR 240 V AC CSA C22.2 No 5
    • Device Short Name : C60BPR
    • Product Name : Multi 9 C60
    • Standards : EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
    • Device Application : Distribution
    • Network Type : AC
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • In Rated Current : 63 A 77 °F (25 °C) EN/IEC 60947-2
    • Number Of Protected Poles : 2
    • Product Certifications : IEC || CCC || CSA || UL
  • Complementary
    • Height : 5.00 in (127 mm)
    • Local Signalling : ON/OFF indication
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • Colour : Gray
    • Mechanical Durability : 20000 cycles
    • Depth : 2.83 in (72 mm)
    • Magnetic Tripping Limit : 8.5 x In +/- 20 % AC
    • Mounting Support : DIN rail
    • Provision For Padlocking : Padlockable
    • Contact Position Indicator : Yes
    • Connections - Terminals : Ring terminal top or bottom)
    • Earth-Leakage Protection : Without
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
    • Width : 1.42 in (36 mm)
    • Control Type : Toggle
    • Mounting Mode : Clip-on
    • Electrical Durability : 10000 cycles
    • 9 mm Pitches : 4
    • Ui Rated Insulation Voltage : 500 V AC EN/IEC 60947-2
    • Ics Rated Service Breaking Cap : 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
