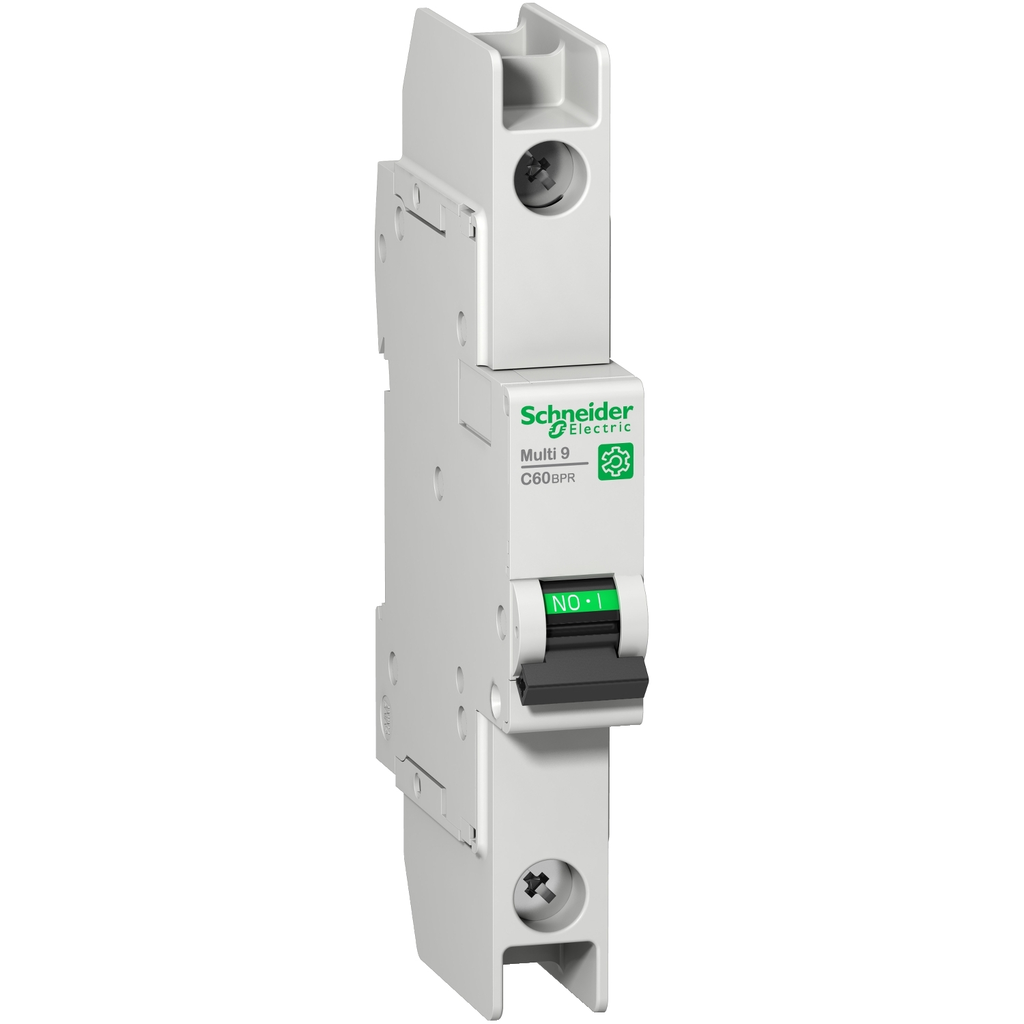

Multi 9 - C60BPR - MCB - 1P - 40 A - D Curve - 240 V - 10 kA - UL 489

Multi 9 - C60BPR - MCB - 1P - 40 A - D Curve - 240 V - 10 kA - UL 489

SQDM9F53140 M9F53140 785901134251
70.91 / EA
  • Amperage: 40 A
  • Certifications: CCC, CSA, IEC, UL
  • Country of Origin: France
  • Depth: 2.83 in, 72 mm
  • Height: 127 mm, 5 in
  • Mounting Type: Clip-On
  • Standard: CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489
  • Voltage: 240 V, 415 V, 60 V
  • Width: 0.71 in, 18 mm
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 40A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Product Description
  • Specifications
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 40A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
  • Complementary
    • Ue Rated Operational Voltage : 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
    • Magnetic Tripping Limit : 12 x In +/- 20 % AC || 17 x In +/- 20 % DC || 17 x In
    • Earth-Leakage Protection : Without
    • Provision For Padlocking : Padlockable
    • Width : 0.71 in (18 mm)
    • Connections - Terminals : Ring terminal top or bottom)
    • Height : 5.00 in (127 mm)
    • Colour : Gray
    • Contact Position Indicator : Yes
    • Uimp Rated Imp Wstd Voltage : 6 kVEN/IEC 60947-2
    • Mounting Support : DIN rail
    • 9 mm Pitches : 2
    • Electrical Durability : 10000 cycles
    • Ui Rated Insulation Voltage : 500 V AC EN/IEC 60947-2
    • Depth : 2.83 in (72 mm)
    • Tightening Torque : 17.70 lbf.in (2 N.m) top or bottom
    • Mechanical Durability : 20000 cycles
    • Ics Rated Service Breaking Cap : 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
    • Mounting Mode : Clip-on
    • Local Signalling : ON/OFF indication
    • Control Type : Toggle
  • Environment
    • IP Degree Of Protection : IP20 conforming to IEC 60529 || IP40 modular enclosure)IEC 60529
    • Pollution Degree : 3 EN/IEC 60947-2
    • Ambient Air Temp For Storage : -40…176 °F (-40…80 °C)
    • Relative Humidity : 95 % 131 °F (55 °C)
    • Ambient Air Temp For Op : -22…158 °F (-30…70 °C)
    • Tropicalisation : 2 IEC 60068-1
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Main
    • Network Type : DC || AC
    • Product Certifications : IEC || CCC || CSA || UL
    • Device Short Name : C60BPR
    • Breaking Capacity : 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 60 V DC UL 489 || 10 kA AIR 240 V AC UL 489 || 10 kA AIR 120 V AC UL 489 || 10 kA AIR 60 V DC CSA C22.2 No 5 || 10 kA AIR 240 V AC CSA C22.2 No 5 || 10 kA AIR 120 V AC CSA C22.2 No 5
    • Number Of Protected Poles : 1
    • Product Or Component Type : Miniature circuit-breaker
    • Trip Unit Technology : Thermal-magnetic
    • Device Application : Distribution
    • Curve Code : D
    • Standards : EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
    • Poles Description : 1P
    • Suitability For ISOlation : Yes EN/IEC 60947-2
    • In Rated Current : 40 A 77 °F (25 °C) EN/IEC 60947-2
    • Product Name : Multi 9 C60
    • Range : Multi 9
  • Ordering And Shipping Details
    • Discount Schedule : DE2
    • Nbr. Of Units In Pkg. : 1
    • Category : 00949 - M9 GEN 2 CB UL489
    • Returnability : No
    • GTIN : 00785901134251
    • Country Of Origin : FR
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • EU RoHs Directive : Compliant
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
