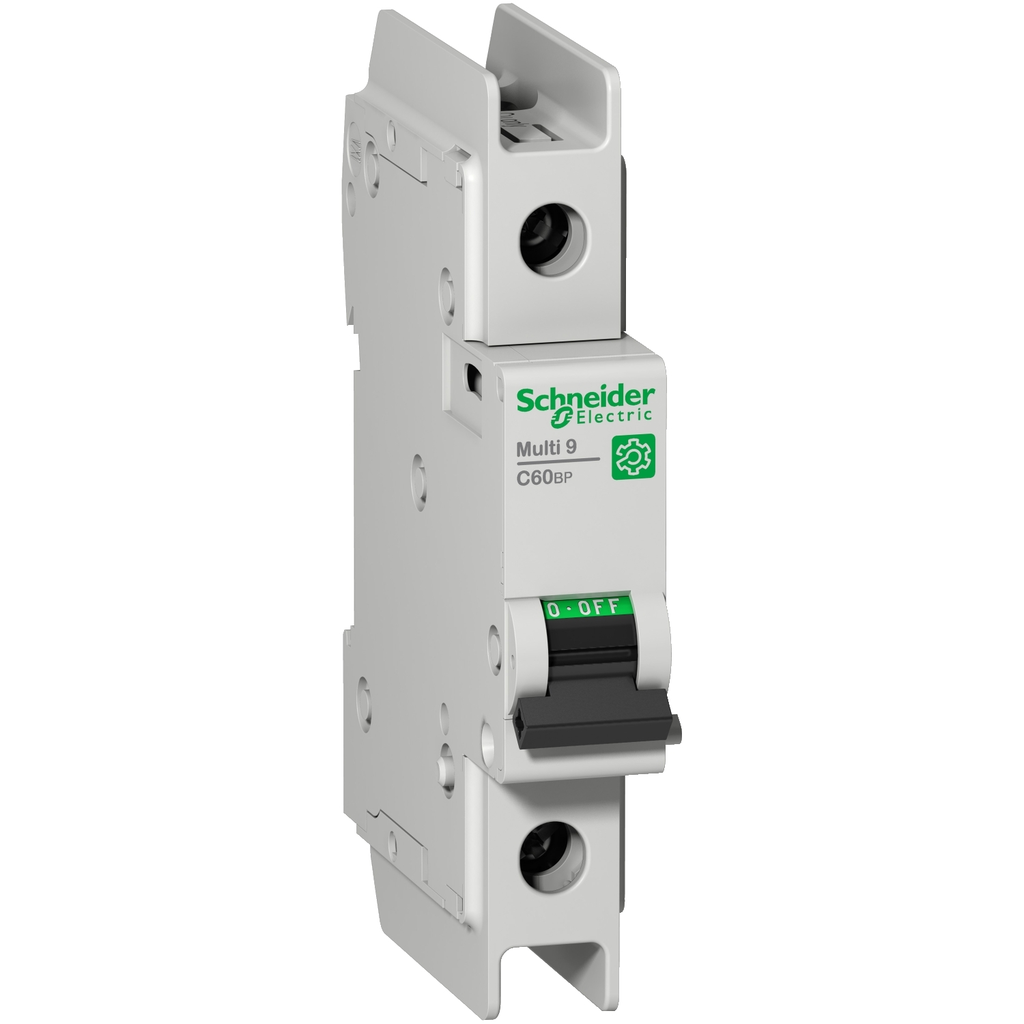

This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 50A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2

• Connections Terminals
• tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid
• tunnel type terminal top or bottom) 1-35 mm² AW
• IP Degree Of Protection
• IP20 conforming to IEC 60529
• IP40 (modular enclosure) conforming to IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.005782702430902838
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.3576014915290328
• 0.4 kg CO2 eq.
• Standards
• EN/IEC 60947-2
• GB 14048.2
• UL 489
• CSA C22.2 No 5
• ICS Rated Service Breaking Capacity
• 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC
• 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC
• 7.5 kA 75 % EN/IEC 60
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 1.179492551684945
• UI Rated Insulation Voltage
• 500 V AC EN/IEC 60947-2
• Tropicalisation
• 2 IEC 60068-1
• Accessories
• MGN26380
• MGN26381
• Connection Pitch
• 18 mm between devices
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 26 kg CO2 eq.
• 25.851692307692307
• Line Rated Current
• 50 A 25 °C EN/IEC 60947-2
• Relative Humidity
• 95-95 % 55-55 °C
• Persona Type Ids
• EU
• OM
• OM8
• Auxiliaries
• M9A26914
• M9A26917
• M9A26948
• M9A26478
• M9A26960
• M9A26946
• M9A27108
• Magnetic Tripping Limit
• 3 x In +/- 20 % AC
• 4.2 x In +/- 20 % DC
• Wire Stripping Length
• 14 mm for top or bottom connection
• Carbon Footprint Of The Distribution Phase A4
• 0.017821585432316777
• 0 kg CO2 eq.
• Tightening Torque
• 3.5-3.5 N.m top or bottom
• Network Type
• DC
• AC
• Suitability For Isolation
• yes EN/IEC 60947-2
• UE Rated Operational Voltage
• 240 V AC 50/60 Hz
• 415 V AC 50/60 Hz
• 60 V DC
• Product Certifications
• IEC
• CCC
• CSA
• UL
• UIMP Rated Impulse Withstand Voltage
• 6 kVEN/IEC 60947-2

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADFD0002485_3D-CAD
• Physical Attributes
• Color : Gray
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 8/13/2025
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 1.179492552
• Distribution Carbon Footprint : 0.017821585
• Installation Carbon Footprint : 0.005782702
• Use Carbon Footprint : 25.85169231
• End Of Life Carbon Footprint : 0.357601492
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1645
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Tier Id : 3
• Tier : 3
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : COMMERCIAL
• Market Segmentation : Commercial
• H And D Domain : Safety
• H And D Subrange : Multi9 OEM MCB
• H And D Enrichment Assignment : no
• H And D Enrichment Function : MCB
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCB IEC 1P
• H And Dod Responsibility : Multi9
• H And Dod Platform : MCB
• Contact Position Indicator : yes
• Curve Code : Z
• Device Short Name : C60BP
• Earth Leakage Protection : without
• Electrical Durability : 10000 cycles
• Energy Efficiency Optimized : FALSE
• Number Of Protected Poles : 1
• Package Weight Lbs : 130 g
• Power Losses Per Pole : 4.8 W
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : miniature circuit-breaker
• Provision For Padlocking : padlockable
• Range : Multi9
• Range Of Product : Multi9
• Returnability : No
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 27 kg CO2 eq.
• Total Power Losses : 4.8 W
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 27.13930946
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP1304004EN
• Pep Verification Date : 3/2/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Product Weight In G : 134.2776513
• Functional Unit Description : Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters: - Number of poles: 1 - Rated b
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Reference Lifetime In Y : 20
• Energy Consumption On Product Lifetime In Kwh : 63.072
• Energy Model Manufacturing A1 A3 : Electricity Mix; Production mix; Low voltage; BG
• Energy Model Installation A5 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Use B6 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model End Of Life C1 C4 : Electricity Mix; Production mix; Low voltage; UE-27
• Recyclability Potential In : 56
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.156268535
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.00826059
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.000114627
• Acidification Ap Mole Of H Equiv Installation A5 : 3.98339E-06
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.147511385
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000969761
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.00305654
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.048049019
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.029558892
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.034484308
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.002568525
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.002700268
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 27.09066079
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 1.149941599
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.017821585
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.005782702
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 25.81661538
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.355034783
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.835554335
• Climate Change Total Kg Co2 Eq Total Life Cycle : 27.13930946
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 1.179492552
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.017821585
• Climate Change Total Kg Co2 Eq Installation A5 : 0.005782702
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 25.85169231
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.357601492
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.838257328
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000153421
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000142772
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 7.00677E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 3.66483E-11
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 1.87274E-06
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 2.53116E-06
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -2.55615E-06
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 687.1968788
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 15.45690014
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.248289256
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.006287753
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 658.6153846
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 12.95733292
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -62.46527022
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 726.5751032
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 336.7571289
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.011993114
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.005318424
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 278.4
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 9.307496756
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -9.481487763
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 1.3285E-06
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 1.73725E-07
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 9.505E-10
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 2.43042E-11
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 1.14447E-06
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 4.91752E-09
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -1.48585E-08
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.002808047
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0.002808047
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.000172692
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 3.81367E-05
• Freshwater Eutrophication Kg P Eq Distribution A4 : 6.67617E-09
• Freshwater Eutrophication Kg P Eq Installation A5 : 9.96632E-08
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 7.07778E-05
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 8.97405E-05
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -8.98689E-05
• Hazardous Waste Disposed Of Kg Total Life Cycle : 8.117886955
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 8.082600325
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 2.60555E-06
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.131674396
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00010087
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 1.1887E-06
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 1.18838E-06
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 3.14444E-13
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 6.09264E-14
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 3.01458E-09
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 4.53774E-10
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -1.57535E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 1.92148E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 9.3081E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 3.55455E-11
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 7.35498E-12
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 1.19577E-07
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 1.00364E-08
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -2.46972E-08
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.763812555
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.019061669
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.514356923
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.232423366
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : -0.232423366
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 42.42637628
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 5.158267715
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 4.33512E-05
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 1.8193E-05
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 38.43692308
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.006110582
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.003898216
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.017891448
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.001066849
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 5.38316E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 2.20521E-06
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.016757723
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000169198
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000510059
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.073334575
• Materials For Recycling Kg Manufacturing A1 A3 : 0.218137307
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 5.27879E-05
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.073281787
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : -0.316113949
• Net Use Of Fresh Water M3 Total Life Cycle : 0.025640426
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.007787122
• Net Use Of Fresh Water M3 Distribution A4 : 1.57364E-06
• Net Use Of Fresh Water M3 Installation A5 : 1.45417E-06
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.021297231
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.003379991
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.009060139
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 4.479714966
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.96982849
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000624755
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.005477082
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 3.719446154
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.057532875
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.013279875
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 2.10827E-07
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 9.2129E-08
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 2.72832E-11
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1.15116E-11
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 1.10538E-07
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 2.45121E-09
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -1.6955E-09
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.057749643
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.003444452
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000149198
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 5.62552E-06
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.053806154
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000607083
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.002041669
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.001097222
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000314854
• Radioactive Waste Disposed Of Kg Distribution A4 : 4.44972E-07
• Radioactive Waste Disposed Of Kg Installation A5 : 1.87733E-07
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.000778505
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 3.04939E-06
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1.77852E-06
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.264395591
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.010617564
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.000590593
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 1.66018E-05
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.251815385
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.00197046
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.005633697
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.279946902
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 15.45690014
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 814.059814
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 15.80769024
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.248618612
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.006449024
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 785.0769231
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 13.01979706
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -62.52887007
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 126.8712538
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.074363206
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000331332
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000161328
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 126.4707692
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.062197242
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.063418132
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 1.279946902
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 1.52751934
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 685.9169319
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.9294552
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.248289256
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.006287753
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 658.6153846
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 12.95733292
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -62.46527022
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.10787556
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.276369503
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 126.7633726
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.350731049
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000331332
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.000161328
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 126.4707692
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.062197242
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.063418132
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.000410595
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Manufacturing A1 A3 : 1.73725E-07
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0
• Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0
• Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : miniature circuit-breaker
• Range Of Product : Multi9
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=446710321&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 27.13930946
• 9 MM Pitches : 2
• Ambient Air Temperature For Operation : -30-70 °C
• Environmental Disclosure : ENVPEP1304004EN
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1304004EN
• Pep Verification Date : 3/2/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Specifications
• Country of Origin : France
