Mounting plate - enclosure H500xW400mm - polyester powder over galvanised sheet

WHITE MOUNTING PLATE (19.7X15.

SQDNSYMM54WH NSYMM54WH 785901475200
38.23 / EA
http://schema.org/OutOfStock

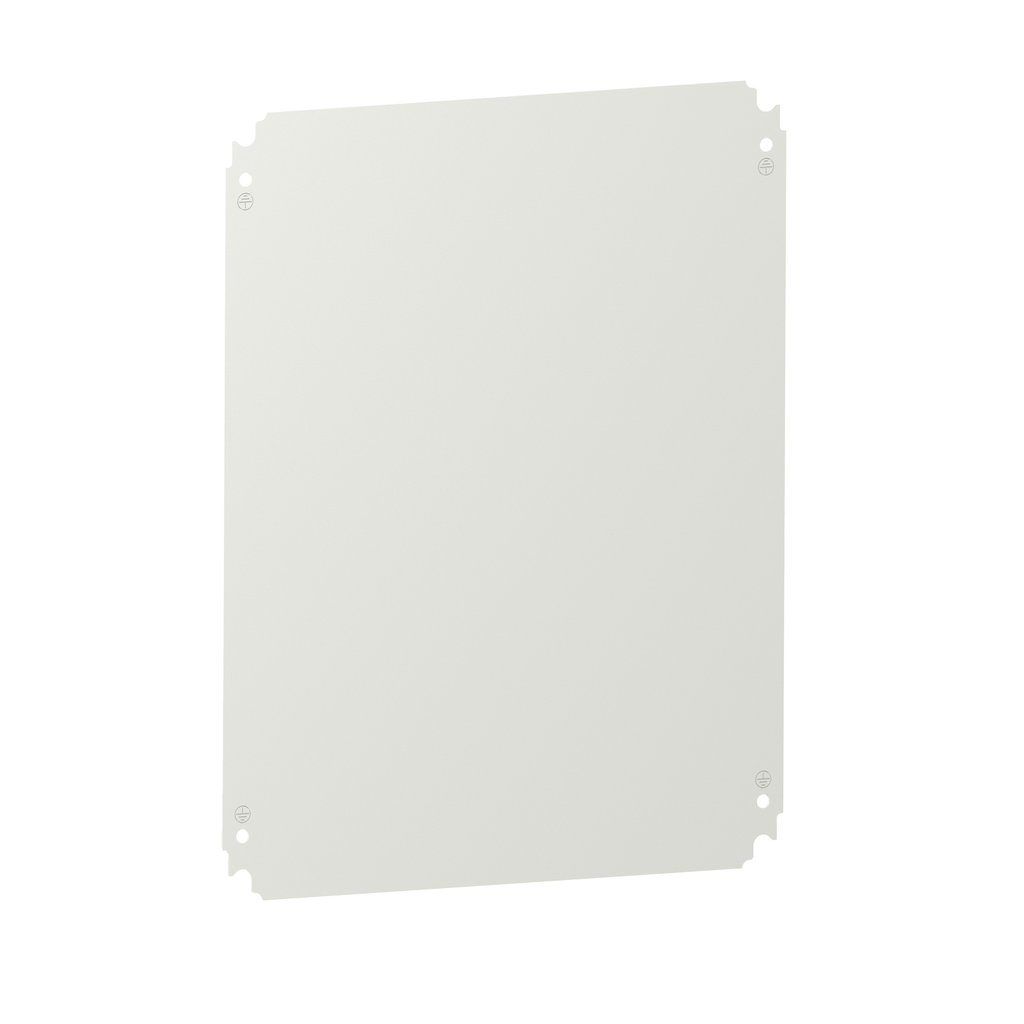

Mayer-DDS-Mounting plate - enclosure H500xW400mm - polyester powder over galvanised sheet-1
  • Depth: 125 mm
  • Finish: Epoxy-Polyester Powder
  • Height: 17.72 in
  • Material: Galvanized Steel
  • Thickness: 1.8 mm
  • Warranty Length: 18 mth
  • Width: 13.78 in
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : White
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Enclosure Nominal Dimensions : -, -
    • Fixing Mode : screwed on backstuds M8, by fixing element
    • Material : galvanised steel
    • Mounting Location : direct fixing on backstuds, step slide
    • Permanent Permissible Load : 90 kg
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-04-15
    • Return Indicator : Y
    • Stocking Flag : Y
    • Stock Policy : 1
    • Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1916
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • China Rohs Label : 1
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Application Market : only US market
    • Device Application : multi-purpose
    • Mounting Plate Description : plain
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mounting plate
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : Yes
    • Surface Finish : epoxy-polyester powder
    • Sustainable Packaging : No
    • Thickness : 1.8 mm
    • Accessory Separate Part Category : mounting accessory
    • Warranty In Months : 18
    • Pep Code : ENVPEP1109023EN
    • Offer Owner Code : 190789
    • Pn : 1
    • Height Nominal : 450 mm
    • Height Useful : 450 mm
    • Width Nominal : 350 mm
    • Width Real : 350 mm
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1109023EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1109023EN
  • General Attributes
    • Product Or Component Type : mounting plate
  • ETIM
    • ETIM 8 : EC000213
    • ETIM 9 : EC000213
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France, United States
    • Height : 17.72 in
    • Width : 13.78 in
    • Depth : |125 mm
