motion servo drive, Lexium 28, single and three phase, 200 to 240V, 750W

Lexium28 IO and CAN drive - 75

SQDLXM28AU07M3X LXM28AU07M3X 3606480711794
1064.21 / EA
http://schema.org/OutOfStock

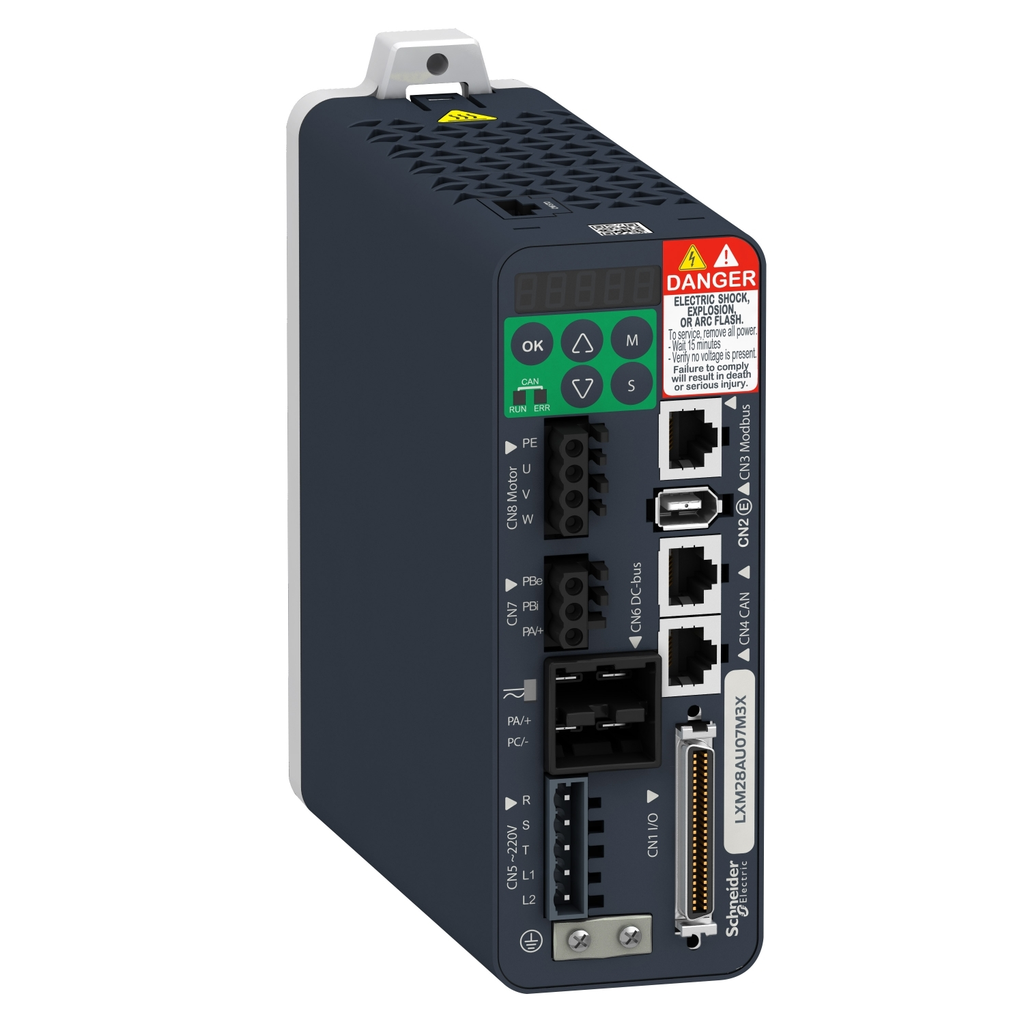

Mayer-DDS-motion servo drive, Lexium 28, single and three phase, 200 to 240V, 750W-1
  • Connection Type: RJ45 CN4)CANopen, CANmotion
  • Depth: 146 mm
  • Operating Position: Vertical
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 13.5A at 220V, a power of 750W/1HP and a continuous power of 750W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for CANopen, CANmotion integrated communication interfaces. Physical interface is RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (130mm, 1 motor stacks) at 500W, servo motor BCH2 (80mm, 2 motor stacks) at 750W and servo motor BCH2 (130mm, 1 motor stacks) at 600W. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
QTY
  • Features
  • Specifications
  • Features
    • Designed to cover a nominal power of 750W
    • Automatic tuning and motor identification
    • Optimized for easy integration and commissioning in machine
    • Increase profitability
    • PLCopen motion library
    • Improve efficiency
    • Simplify integration and maintenance
    • Intuitive commissioning and programming
    • Pre-defined servo bundles for all machine types
    • Energy efficient
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Interface : CANopen, Integrated, CANmotion, Integrated
  • Conformance Attributes
    • Product Certifications : CE, cULus
    • Standards : IEC 61800-5-1
  • Complementary Attributes
    • Line Rated Current : 4.5 A
    • Maximum Ambient Air Temperature For Operation : 55.0 °C
    • Maximum Current IRMS : 13.5 A
    • Maximum Leakage Current : 1.3 mA
    • Maximum Operational Altitude : 3000.0 m
    • Minimum Ambient Air Temperature For Operation : 0.0 °C
    • Minimum Operational Altitude : 0.0 m
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Electrical Connection : spring terminal 0.82...1 mm², AWG 18 L1-L2), spring terminal 0.82...1 mm², AWG 18 R, S, T), spring terminal 0.82...1 mm², AWG 18 U, V, W, PE), spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
    • EMC Filter Compatibility : type 022, type 020
    • Line Current : 6 A 181.8 % 220 V, single phase, 6 A 160.6 % 220 V, three phase
    • Marking : CE, cULus
    • Network Number Of Phases : 3, 1
    • Nominal Voltage : 220 V single phase, 220 V three phase
    • Phase : single phase, three phase
    • Protection Type : against reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
    • Safety Level : SIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
    • Status Led : 1 LED (Red) charge, 1 LED (Green) RUN, 1 LED (Red) error
    • Supply Voltage : 200-240 V single phase, 200-240 V three phase
    • Supply Voltage Description : three phase 220 V AC 50...60 Hz, single phase 220 V AC 50...60 Hz
    • Supply Voltage Limits : 200-255 V three phase, 170-255 V single phase
    • Transmission Rate : 250 kbit/s 100-250 m CANopen, CANmotion, 500 kbit/s 4-100 m CANopen, CANmotion, 1 Mbit/s 4-4 m CANopen, CANmotion
    • Us Rated Supply Voltage2 : 200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 230 V
    • Carbon Footprint Of The Distribution Phase A4 : 0.1690165541, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5988824324, 0.6 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0126892973
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 22 kg CO2 eq., 22.2815067568
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 2 041 kg CO2 eq., 2040.6250669921
    • Us Rated Supply Voltage5 : 200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1409001EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Connector Type : RJ45 CN4)CANopen, CANmotion
    • Continuous Power : 750 W 220 V
    • Control Signal Type : servo motor encoder feedback CN2
    • Derating Altitude Start : 1000.0 m
    • Derating Temperature Start : 40.0 °C
    • Device Short Name : LXM28A
    • Electrical Isolation : between power and control
    • Electromagnetic Compatibility : conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
    • EMC Filter : without EMC filter
    • Field Weakening : false
    • Format Of The Drive : compact housing
    • Maximum Operational Altitude : 3000.0 m
    • Method Of Access : slave
    • Minimum Ambient Air Temperature For Operation : 0.0 °C
    • Minimum Operational Altitude : 0.0 m
    • Network Frequency : 47.5...63 Hz
    • Nominal Power : 0.75 kW 220 V 16 kHz
    • Number Of Addresses : 1-127 CANopen, CANmotion
    • Operating Position : vertical
    • Overvoltage Category : III
    • Package Weight Lbs : 1.321 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : motion servo drive
    • Range Of Product : Lexium 28
    • Returnability : Yes
    • Safety Function : STO (safe torque off), Integrated
    • Shock Resistance : 10 gn, type I IEC 60721-3-3
    • Signalling Function : servo status and fault codes five 7-segment display units
    • Supply Frequency : 50/60 Hz - 5...5 %
    • Sustainable Packaging : No
    • Switching Frequency : 16 kHz
    • Total Lifecycle Carbon Footprint : 2 064 kg CO2 eq.
    • Type Of Cable : shielded motor cable 0-55 °C) copper
    • Type Of Cooling : integrated fan
    • Vibration Resistance : 3M4 3 mm 9-200 Hz)IEC 60721-3-3
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Maximum In Rated Current2 : 4.5 A
    • Medium Desc : motion servo drive, Lexium 28, single and three phase, 200 to 240V, 750W
    • Country Of Origin 6 : US
    • Stocking Flag : N
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1409001EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To control AC-servo motors BCH2 100% of the time for 10 years
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: China
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
    • Global Commercial Status : Commercialised
    • Maximum In Rated Current5 : 4.5 A
  • Environment Attributes Main
    • Take Back : Nej, No
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
    • Product Compatibility : servo motor BCH2 130 mm, 1 500 W, servo motor BCH2 80 mm, 2 750 W, servo motor BCH2 130 mm, 1 600 W
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 2063.6871620326
    • Ambient Air Temperature For Operation : 0-55 °C
    • Ambient Air Temperature For Storage : -25-65 °C
    • Circularity Profile : ENVEOLI1409001EN
    • Environmental Disclosure : ENVPEP1409001EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation
    • Pep Code : ENVPEP1409001EN
    • Pep Verification Date : 2020-11-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : single phase, three phase
    • Product Or Component Type : motion servo drive
    • Range Of Product : Lexium 28
  • Output Attributes
    • Discrete Output Number : 5 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
    • Output Current 3s Peak : 13.5 A 220 V, 13.5 A
    • Continuous Output Current : 4.5 A 16 kHz
    • Discrete Output Logic : positive or negative CN1)
    • Discrete Output Voltage : 12...24 V DC
    • Output Voltage : <= power supply voltage
  • Surge Protection And Filtering Attributes
    • EMC Filter Compatibility : type 022, type 020
    • EMC Filter : without EMC filter
  • Input Attributes
    • Analogue Input Type : V_REF voltage analog input - 10...10 V 10 kOhm 14 bits, T_REF voltage analog input
    • Discrete Input Number : 8 programmable CN1), 1 pulse train input (PTI) CN1), 2 fast capture CN1), 1 safety function STO CN9)
    • Analogue Input Number : 2
    • Discrete Input Logic : positive or negative CN1)
    • Discrete Input Voltage : 24 V DC logic
  • Specifications
    • Country of Origin : France, Sweden
    • Depth : 146 mm
