Motion controller LMC101 4 axis - Acc kit - Basic

Controller 4axis, access kit

SQDLMC101CAA10000 LMC101CAA10000 3606485305547
5100.62 / EA
http://schema.org/OutOfStock

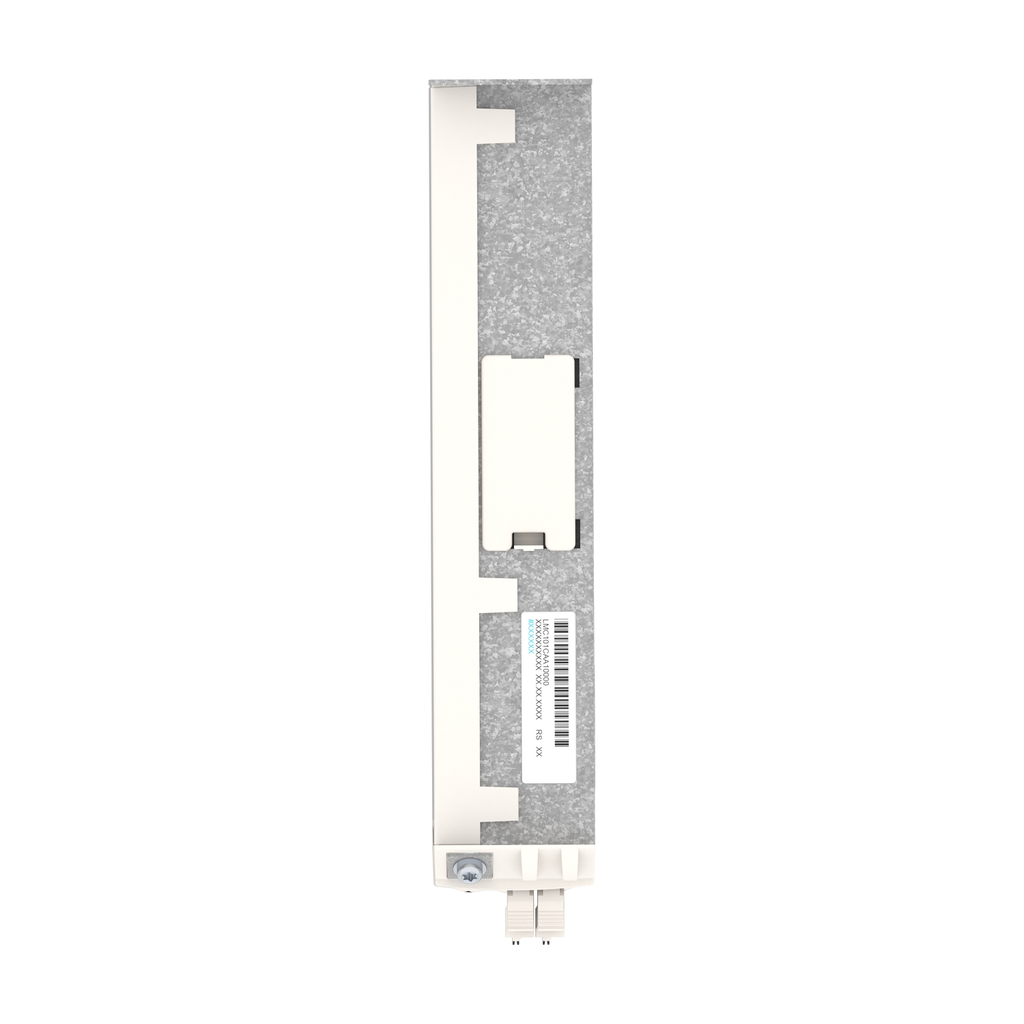

Mayer-DDS-Motion controller LMC101 4 axis - Acc kit - Basic-2
  • Warranty Length: 18 mth
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 4 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 4 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Integrated Connection Type : 2 Ethernet port RJ45 Sercos, 2 Ethernet port RJ45 Sercos, 2 Ethernet port RJ45 Sercos, 2 Ethernet port RJ45 Sercos, 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP, 1 Ethernet port RJ45 master encoder, 1 Ethernet port RJ45 master encoder, 1 Ethernet port RJ45 master encoder, 1 Ethernet port RJ45 master encoder, 1 serial link RJ45 RS232/RS485, 1 serial link RJ45 RS232/RS485, 1 serial link RJ45 RS232/RS485, 1 serial link RJ45 RS232/RS485, 1 CAN port SUB-D 9 CANopen, 1 CAN port SUB-D 9 CANopen, 1 CAN port SUB-D 9 CANopen, 1 CAN port SUB-D 9 CANopen, 1 USB port USB type A, 1 USB port USB type A, 1 USB port USB type A
    • US Rated Supply Voltage : 24 V DC, 24 V DC
    • Maximum Cable Distance Between Devices : <50 m
    • Maximum Leakage Current : 0.5 mA
  • Important Information Attributes
    • Persona Type Ids : EU, OM
    • Persona Type Names : End User, Original Equipment Manufacturer
    • Anti Bounce Filtering : 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable interrupt input
    • Memory Type : 512 MB RAM DDR2, 512 MB RAM DDR2, 128 kB NVRAM, 128 kB NVRAM
    • Programming Language : IL (instruction list), CFC (continuous function chart), SFC (sequential function chart), LD (ladder), ST (structured text), FBD (function block diagram)
    • Shock Resistance : 150 m/s² 6 ms operation)IEC 60721-3-3, 150 m/s² 6 ms operation)IEC 60721-3-3, 150 m/s² 6 ms operation)IEC 60721-3-3, 150 m/s² 6 ms operation)IEC 60721-3-3
    • Supply : power supply 24 VDC, power supply 24 VDC, power supply 24 VDC
    • Vibration Resistance : 3.5 mm 5-8.4 Hz, 3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz, 10 m/s² 8.4-150 Hz
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403026EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Package Weight Lbs : 2.210 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : Motion controller
    • Range Of Product : PacDrive 3
    • Returnability : Yes
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1403026EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20IEC 60529, IP20IEC 60529
    • Relative Humidity : 5-95 % without condensation, 5-95 % without condensation
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : 5-55 °C
    • Circularity Profile : ENVEOLI1403026EN
    • Environmental Disclosure : ENVPEP1403026EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1403026EN
  • General Attributes
    • Product Or Component Type : Motion controller
    • Range Of Product : PacDrive 3
  • Output Attributes
    • Discrete Output Current : 500 mA digital output, 500 mA digital output
    • Discrete Output Number : 8 digital output, 8 digital output
  • Surge Protection And Filtering Attributes
    • Anti Bounce Filtering : 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable digital input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable touch probe input, 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable interrupt input, 100 µs...4.29 s configurable interrupt input
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Discrete Input Current : 4 mA digital input, 4 mA digital input
    • Discrete Input Number : 8 digital input IEC 61131-2 Type 1, 8 digital input IEC 61131-2 Type 1, 8 digital input IEC 61131-2 Type 1, 4 touch probe input IEC 61131-2 Type 1, 4 touch probe input IEC 61131-2 Type 1, 4 touch probe input IEC 61131-2 Type 1
    • Discrete Input Voltage Type : DC
