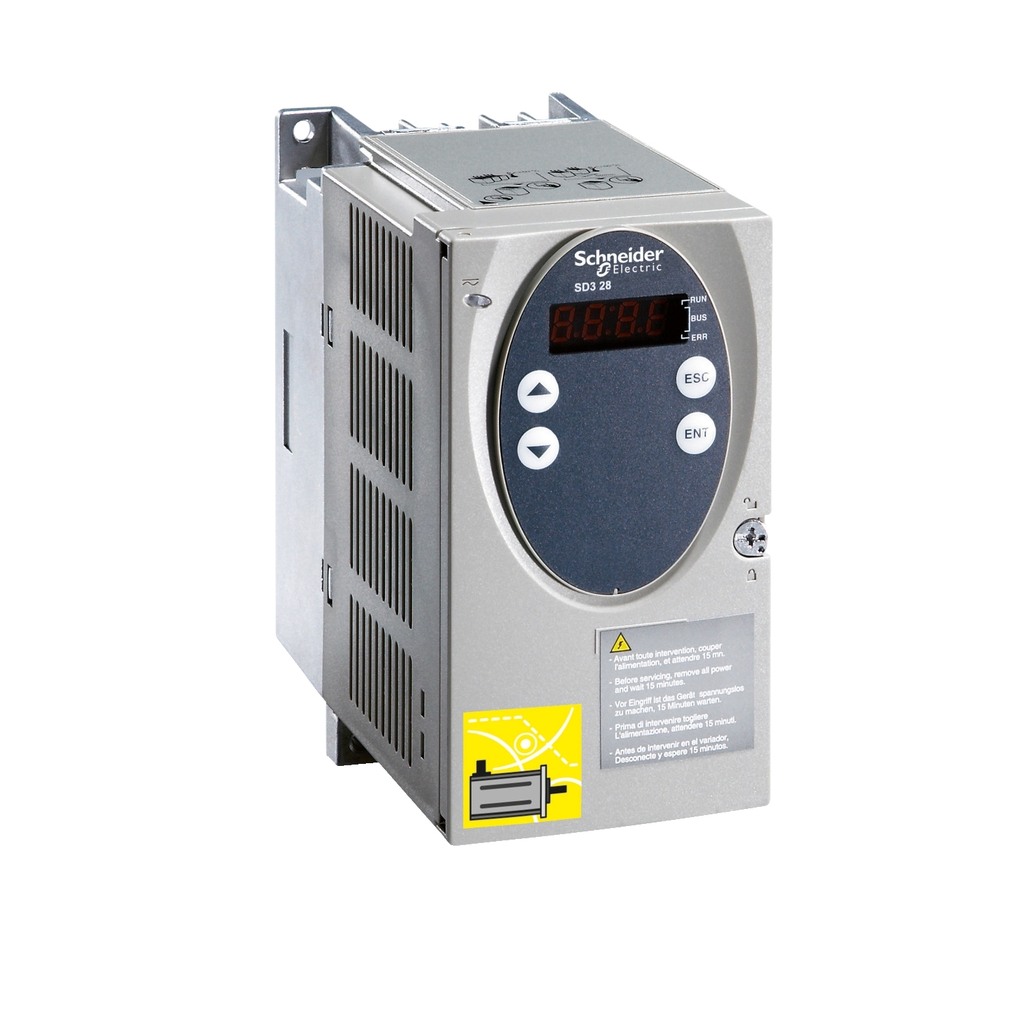

motion control stepper motor drive - SD328 - <= 6.8 A

motion control stepper motor drive - SD328 - <= 6.8 A

SQDSD328AU68S2 SD328AU68S2 338911922438
0.00 / EA
  • Certifications: CUL, TÜV, UL
  • Current: 0.2 mA, 5 A, 7 A
  • Depth: 140 mm
  • Height: 145 mm
  • Input Voltage: -10-10 V, 24 V
  • Net Weight: 1.2 kg
  • Number of Phases: 1
  • Output Voltage: 24 V, 30 V, 4.75-5.25 V, 5 V
  • Short Circuit Current: 0.5 kA
  • Standard: EN/IEC 50178, EN/IEC 61800-3, EN/IEC 61800-3 Environment 1, EN/IEC 61800-3 Environment 2, EN/IEC 61800-5-1
  • Warranty Length: 18 mth
  • Width: 72 mm
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated analogue input, Modbus fieldbus and CANopen fieldbus communication interface. High torque is available even at low speeds.  It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 6.8A, a nominal power of 420W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is furnished with RJ45 connector for CANopen interface, RJ45 connector for Modbus interface, spring terminal for CANopen interface for electrical connection. It is provided with fan cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.2kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, TUV, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
  • Product Description
  • Specifications
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated analogue input, Modbus fieldbus and CANopen fieldbus communication interface. High torque is available even at low speeds.  It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 6.8A, a nominal power of 420W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is furnished with RJ45 connector for CANopen interface, RJ45 connector for Modbus interface, spring terminal for CANopen interface for electrical connection. It is provided with fan cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.2kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, TUV, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
  • Communication Interface : analogue input, Integrated || Modbus fieldbus, Integrated || CANopen fieldbus, Integrated
  • Relative Humidity : 5-85 % without condensation
  • Net Weight : 1.2 kg
  • Installed Device : 127 stepper motor drives CANopen || 31 stepper motor drives Modbus
  • Electrical Connection : connector RJ45 CANopen interface || connector RJ45 Modbus interface || spring terminal CANopen interface
  • Inrush Current : 60 A
  • Maximum Leakage Current : 30 mA <10 m IEC 60990-3
  • Number Of Addresses : 1-127 CANopen || 1-247 Modbus
  • Current Consumption : 5 A 230 V main supply || 7 A 115 V main supply || <= 0.2 mA 24 V control voltage
  • Shock Resistance : 15 gn 11 ms EN/IEC 60068-2-27
  • Maximum Height : 145 mm
  • Ambient Air Temperature For Storage : -25-70 °C
  • Voltage State 0 Guaranteed : -3...5 V 24 V input signals
  • Bus Type : fieldbus
  • Maximum Output Frequency : 400 kHz pulse/direction interface A/B || 200 kHz pulse/direction interface pulse/direction
  • Network Frequency Limits : 50-60 Hz - 15...10 %)
  • Nominal Power : 280 W 115 V || 420 W 230 V
  • Resistance : 5 kOhm pulse/direction interface) || 10 kOhm analogue input signals)
  • Supply Voltage Type : AC/DC
  • Ip Degree Of Protection : IP20 || on upper part IP40 without removal of protective film)
  • Power Losses : <= 65 W
  • Maximum Motor Phase Current : 6.8 A
  • Product Or Component Type : motion stepper drive
  • Ambient Air Temperature For Operation : 0-50 °C
  • Format Of The Drive : block
  • Overvoltage Category : III
  • Supply Voltage Description : single phase 230 V || single phase 115 V
  • Local Signalling : 1 LED - ERR CANopen || 1 LED - RUN CANopen
  • Product Certifications : cUL || TÜV || UL
  • Mode Of Transmission : RTU Modbus
  • Voltage State 1 Guaranteed : 15...30 V 24 V input signals
  • Maximum Voltage Drop : <1 V 50 mA load 24 V output signals
  • Maximum Depth : 140 mm
  • Warranty : 18 months
  • Short-Circuit Current : 0.5 kA
  • Marking : CE
  • Phase : single phase
  • Maximum Mechanical Speed : 3000 rpm
  • Associated Fuse Rating : 10 A 115 V || 6 A 230 V
  • Analogue Input Type : voltage - 10...10 V 14 bits 0.25 ms
  • Residual Ripple : < 5 % 24 V control voltage)
  • Transmission Rate : 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen || 9600, 19200, 38400 bps Modbus
  • Device Short Name : SD328
  • Input Current : 10 mA 24 V input signals
  • Communication Service : 1 PDO configurable CANopen || read hold register (03), maximum 63 words Modbus || read/write multiple registers (23), maximum 63/59 words Modbus || write multiple registers (16), maximum 61 words Modbus || write single register (06) Modbus || 2 SDOs receive CANopen || 2 SDOs send CANopen || 3 PDOs as per DSP 402 CANopen || CiA DSP 402 profile CANopen || diagnostics (08) Modbus || emergency CANopen || note guarding, heartbeat CANopen || read device identification (43) Modbus
  • Output Voltage : <= 30 V 24 V output signals) || 4.75...5.25 V ENC+5V_OUT signal output)
  • Standards : EN/IEC 61800-5-1 || EN/IEC 61800-3 || EN/IEC 61800-3 environment 2 || EN/IEC 50178 || EN/IEC 61800-3 environment 1
  • Supply Voltage Limits : 200-240 V || 100-120 V
  • Data Format : 8 bits, 1 stop, even parity Modbus || 8 bits, no parity, 1 stop Modbus || 8 bits, no parity, 2 stop Modbus || 8 bits, odd parity, 1 stop Modbus
  • Input Voltage : 24 V -15 %/+20 % 24 V control voltage || -10...10 V analogue input signals
  • Electromagnetic Compatibility : electrostatic discharge level 3 EN/IEC 61000-4-2 || immunity to electrical transients level 4 EN/IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 EN/IEC 61000-4-3 || voltage/current impulse level 3 EN/IEC 61000-4-5
  • Operating Altitude : <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
  • Network Number Of Phases : 1
  • Safety Function : safe torque off safety function machine IEC/EN 61800-5-2 || safe torque off safety function machine ISO 13849-1 level d || safe torque off safety function system process EN/IEC 61508 level SIL2 || safe torque off safety function system process IEC/EN 61800-5-2
  • Range Of Product : Lexium SD3
  • Pollution Degree : level 2
  • Type Of Cooling : fan
  • Physical Interface : 2-wire RS 485 Modbus || RS422 - pulse/direction interface || RS422 - signal input ENC_A, ENC_B, ENC_I
  • Maximum Switching Current : 50 mA 24 V output signals)
  • Maximum Input Frequency : 200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction || 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
  • [Us] Rated Supply Voltage : 100...120 V - 15...10 % || 200...230 V - 15...10 %
  • Maximum Width : 72 mm
  • Vibration Resistance : 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm 3-13 Hz)EN/IEC 60068-2-6
  • Compatibility Code : SD328
  • Method Of Access : slave CANopen
