motion control stepper motor drive - SD326 - pulse/direction - <= 6.8 A

Stp. Dr. Pulse/Dir. 6.8A, Fan

SQDSD326DU68S2 SD326DU68S2 3389119224345
1196.12 / EA
http://schema.org/OutOfStock

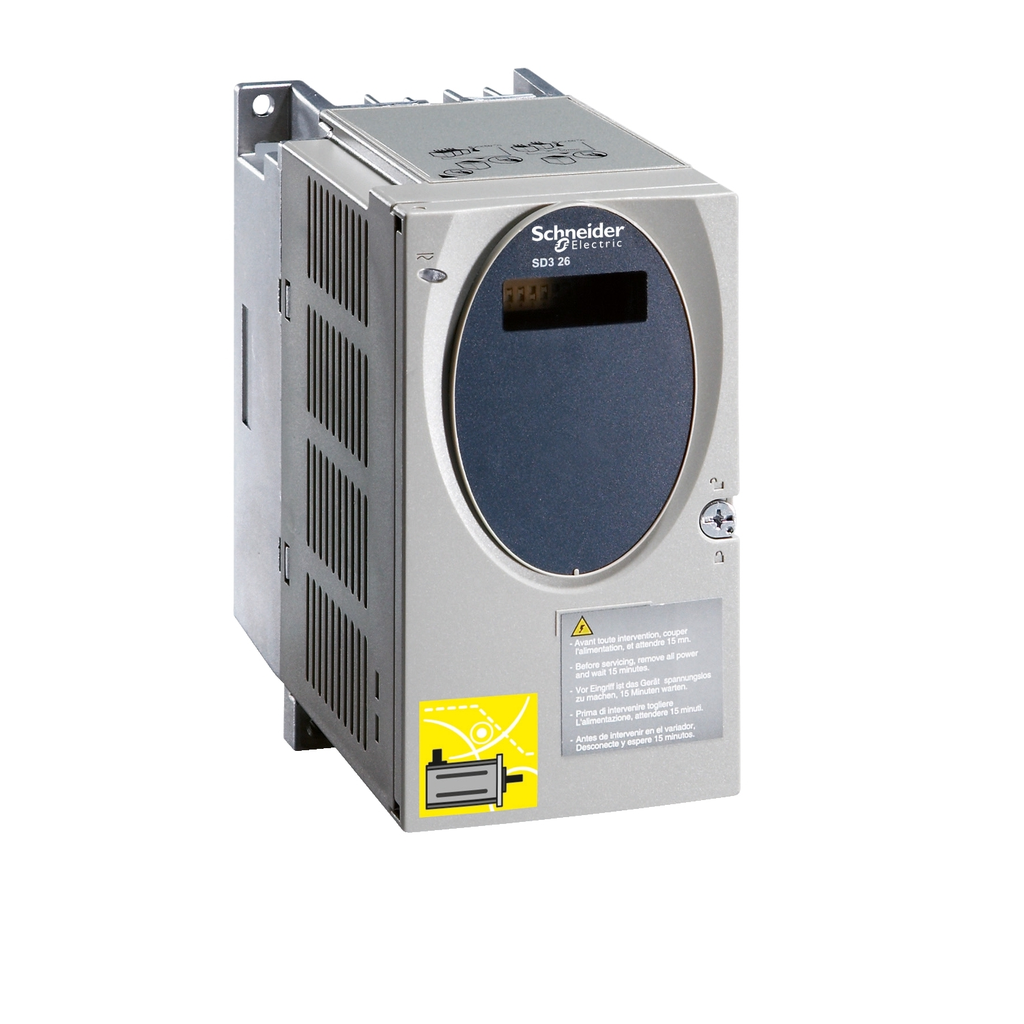

Mayer-DDS-motion control stepper motor drive - SD326 - pulse/direction - <= 6.8 A-1
  • Depth: 140 mm
  • Warranty Length: 18 mth
This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. High torque is available even at low speeds.  It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 6.8A, a nominal power of 420W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with fan cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.2kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.
QTY
  • Features
  • Specifications
  • Features
    • Truly simple
    • Extremely compact
    • High flexibility
    • Integrated safety function
    • Plug and play for easy automation
    • Universally applicable
    • Ready for operation within a very short period of time
    • IP20 and IP40 degree of protection
    • Wide range of operating temperature from 32°F to 122°F
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Interface : pulse/direction, Integrated
  • Conformance Attributes
    • Product Certifications : UL, cUL
    • Standards : EN 61800-3, EN/IEC 61800-5-1
  • Complementary Attributes
    • Maximum Voltage Drop : <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output
    • Maximum Input Frequency : 200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals
    • Maximum Leakage Current : 30 mA IEC 60990-3
    • Maximum Mechanical Speed : 3000 rpm
    • Maximum Motor Phase Current : 6.8 A
    • Maximum Switching Current : 200 mA readiness signal output)
    • Maximum Switching Voltage : 30 V DC readiness signal output)
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Associated Fuse Rating : 10 A 115 V, 6 A 230 V
    • Electromagnetic Compatibility : electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
    • Nominal Power : 280 W 115 V, 420 W 230 V
    • Supply Voltage Description : single phase 115 V, single phase 230 V
    • Supply Voltage Limits : 100-120 V, 200-240 V
    • Vibration Resistance : 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
    • Voltage State 0 Guaranteed : <= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals
    • Voltage State 1 Guaranteed : 15...30 V 24 V optocoupler input signals, 2.5...5.25 V 5 V optocoupler input signals
    • Us Rated Supply Voltage2 : 100...120 V - 15...10 %, 200...230 V - 15...10 %
    • Carbon Footprint Of The Distribution Phase A4 : 0.1666947452, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.5498406369
    • Carbon Footprint Of The Installation Phase A5 : 0.0107022038, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 27 kg CO2 eq., 26.5240605096
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 558 kg CO2 eq., 557.9455555556
    • Us Rated Supply Voltage5 : 100...120 V - 15...10 %, 200...230 V - 15...10 %
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Device Type : Motion - drive & motor
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI111103EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Compatibility Code : SD326
    • Device Short Name : SD326
    • Format Of The Drive : block
    • Inrush Current : 60 A
    • Marking : CE
    • Network Frequency Limits : 50-60 Hz - 15...10 %)
    • Overvoltage Category : III
    • Package Weight Lbs : 1.304 kg
    • Phase : single phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : motion stepper drive
    • Range Of Product : Lexium SD3
    • Returnability : No
    • Shock Resistance : 15 gn 11 ms IEC 60068-2-27
    • Short Circuit Current : 0.5 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 585 kg CO2 eq.
    • Type Of Cooling : fan
    • Medium Desc : motion control stepper motor drive - SD326 - pulse/direction - <= 6.8 A
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1111015EN
    • Database Version : 2016-11
    • Pep Verification Date : 2020-10-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To drive 3-phase stepper motors 70% of the time for 10 years
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Germany
    • Energy Model Installation A5 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
    • Supply Voltage Type : AC/DC
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • Ambient Air Temperature For Operation : 0-50 °C, 0-40 °C UL
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP20, on upper part: IP40 (without removal of protective film)
    • Operating Altitude : <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 585.1968536511
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI111103EN
    • Environmental Disclosure : ENVPEP1111015EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-85 % without condensation
    • Pep Code : ENVPEP1111015EN
    • Pep Verification Date : 2020-10-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Phase : single phase
    • Product Or Component Type : motion stepper drive
    • Range Of Product : Lexium SD3
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Input Current : 25 mA 5 V optocoupler input signals, 7 mA 24 V optocoupler input signals
    • Maximum Input Frequency : 200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals
  • Specifications
    • Depth : 140 mm
