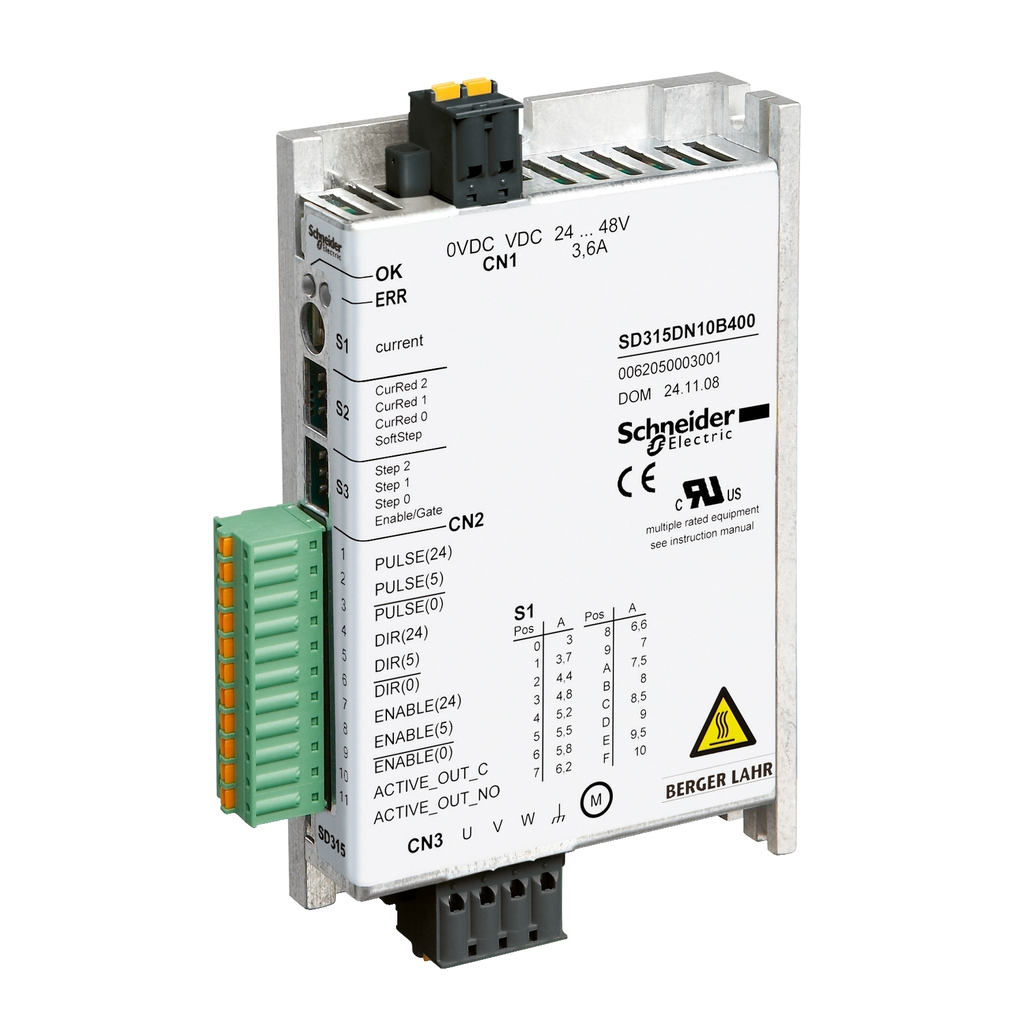

This product is part of the Lexium SD3 range, an offer of 3phase stepper drives and stepper motors. This is a stepper motor drives with pulse/direction interface. It is equipped with an oscillator mode. Its supply voltage varies from 24VDC to 48VDC. The

• US Rated Supply Voltage
• 24...48 V - 15...10 %
• Communication Interface
• pulse/direction, Integrated
• Analogue Input Type
• voltage 0...10 V 10 bits 50 kOhm
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Input Current
• 25 mA 5 V optocoupler input signals
• 7 mA 24 V optocoupler input signals
• Carbon Footprint Of The Installation Phase A5
• 0.0030400223
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.1561853822
• Maximum Switching Voltage
• 30 V DC readiness signal output)
• 30 V pulse/direction output signal)
• 10 V DC output signal)
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 8 kg CO2 eq.
• 7.5343113057
• Maximum Switching Current
• 200 mA readiness signal output)
• 50 mA pulse/direction output signal)
• 20 mA output signal)
• Voltage State 1 Guaranteed
• 15...30 V 24 V optocoupler input signals
• 2.5...5.25 V 5 V optocoupler input signals
• Vibration Resistance
• 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6
• 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
• 1.5 mm (f= 3-1
• Maximum Input Frequency
• 200 kHz 24 V optocoupler input signals
• 200 kHz 5 V optocoupler input signals
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 197 kg CO2 eq.
• 197.4268888889
• Electromagnetic Compatibility
• electrostatic discharge level 3 conforming to IEC 61000-4-2
• immunity to electrical transients level 4 conforming to IEC 61000-4-4
• immu
• Relative Humidity
• 5-85 % without condensation
• Residual Ripple
• < 5 % 24 V control voltage)
• Carbon Footprint Of The Distribution Phase A4
• 0.0473505971
• 0 kg CO2 eq.
• Operating Altitude
• <= 3280.84 ft (1000 m) without derating
• > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, lateral distance of > 20 mm)
• > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with
• Voltage State 0 Guaranteed
• <= 5 V 24 V optocoupler input signals
• <= 0.4 V 5 V optocoupler input signals
• Shock Resistance
• 15 gn 11 ms IEC 60068-2-27
• Local Signalling
• 1 LED - ERR
• 1 LED - RUN
• Resistance
• 10 kOhm external potentiometer)
• Maximum Voltage Drop
• <1 V 50 mA load readiness signal output
• <0.5 V pulse/direction output signal

• Complementary Attributes
• Maximum Leakage Current : 30 mA
• Maximum Motor Phase Current : 10 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Device Type : Motion - drive & motor
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 7.5343113057
• Distribution Carbon Footprint : 0.0473505971
• Installation Carbon Footprint : 0.0030400223
• Use Carbon Footprint : 197.4268888889
• End Of Life Carbon Footprint : 0.1561853822
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI111103EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1901
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Associated Fuse Rating : 10 A
• Current Consumption : <= 7.5 mA
• Device Short Name : SD315
• Format Of The Drive : block
• Network Number Of Phases : 1
• Package Weight Lbs : 371.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : motion stepper drive
• Range Of Product : Lexium SD3
• Returnability : No
• Supply Voltage Description : single phase 24 V
• Supply Voltage Type : DC
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 205 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 205.1677761962
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP111115EN
• Pep Verification Date : 2020-10-01
• PCR Version : PCR-ed3-EN-2015 04 02
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 367
• Functional Unit Description : To drive 3-phase stepper motors 70% of the time for 10 years
• Functional Unit Quantity : 1
• Functional Unit Unit : unité (unit)
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 402.96
• Energy Model Manufacturing A1 A3 : Energy model used: Germany
• Energy Model Installation A5 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model Use B6 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model End Of Life C1 C4 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
