motion controller, Modicon M262, 3ns per instruction, 24 axes, Ethernet, Sercos

Name: motion controller, Modicon M262, 3ns per instruction, 24 axes, Ethernet, Sercos
Brand: SCHNEIDER ELECTRIC
SKU: SQDTM262M35MESS8T
Price: 7269.88 USD
Availability: OutOfStock

SQDTM262M35MESS8T TM262M35MESS8T 3606489604226

7269.88 / EA

http://schema.org/OutOfStock

Mayer-DDS-motion controller, Modicon M262, 3ns per instruction, 24 axes, Ethernet, Sercos-1

Depth: 90 mm

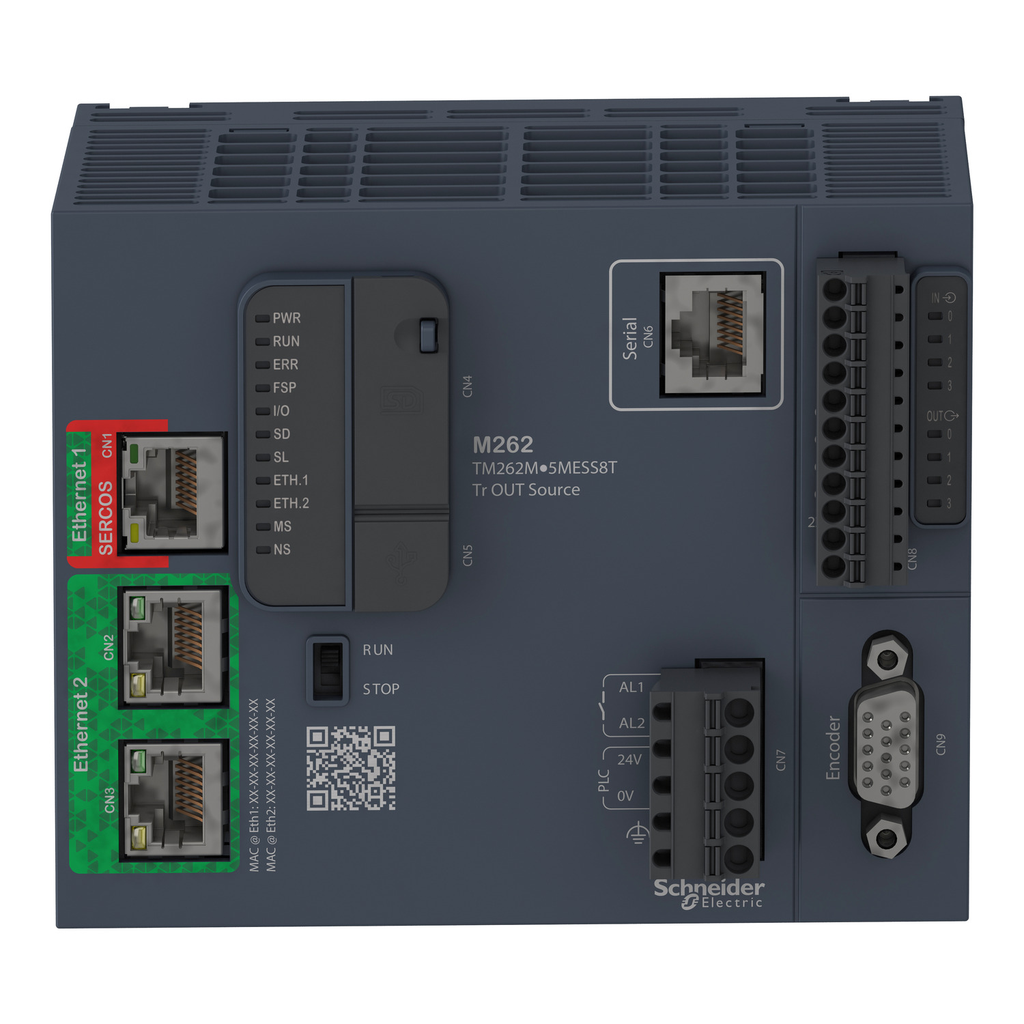

Modicon M262 logic/motion controllers are designed for performance-demanding machines, IIoT-ready and combine logic, motion and safety control applications. TM262M35MESS8T is specialized in the motion control of 4 fast digital inputs and 4 fast digital ouputs, 1 encoder input and up to 24 synchronized axes, embedding a safety control application according to SIL3. This motion controller embeds 3 Ethernet-based networks (EtherNet/IP, Modbus/TCP, Sercos), one serial port (Modbus, ASCII, Machine Expert protocols). Modicon M262 are logic/motion controllers with embedded cloud connectivity, figuring cybersecurity capabilities, supporting monitoring, analytics and predictive maintenance. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor, reaches a 5ns/instruction performance. This motion controller has one communication bus (Ethernet, CANopen), one IO bus, one IO port, one encoder connector. It measures 125mm width, 90mm depth, and 100 mm height. It weighs 0.670kg. This controller is designed for machinery requiring integrated IIoT connectivity or encrypted communication. Certified with CE, cULus HazLoc, RCM, EAC, Achilles L2, EU RO Mutual, Conform to UL 61010-1/-2-201, CSAC22.2 No. 61010-1/-2-201, ANSI/ISA 12-12-01, EN 61131-2. This controller is compatible with TMS CANopen/Ethernet smart communication module, Modicon TM3 IO expansion modules, configured by EcoStruxure Machine Expert. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks. Modicon M262 logic/motion controllers are the IIoT-ready controllers for performance machines. Modicon M262 logic/motion controllers embed Industrial Internet of Things (IIoT) protocols and encryption to provide direct cloud connectivity & digital services.

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Assets

Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0000748_3D-CAD

Communications & Management Attributes

Communication Port Protocol : Modbus SL IO scanner, ASCII modem management, EtherNet/IP adapter, EtherNet/IP scanner, Modbus TCP client/server, Modbus TCP IO scanner, Modbus TCP NVL, Ethernet RSTP, Modbus SL client/server, Modbus SL modem management, Machine Expert, ASCII manager, Sercos III master
Communication Service : MQTTs, OPC UA server (Encrypt), OPC UA client (Encrypt), HTTPs Methods (API), web server, web visu, TLS 1.2, TLS 1.3, SNTP, NTP client/server, FTP client/server, FTPs server, SQL client (remote access), DHCP client, DHCP server, DNS client, POP3s client, SMTP client, SNMP client/server

Conformance Attributes

Product Certifications : CE, cULus, cULus HazLoc Class I Division 2 CSA 22-2 No 213, RCM, EAC, Achilles, KC
Standards : UL 61010-1, UL 61010-2-201, CSA C22.2 No 61010-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 213, ANSI/ISA 12-12-01, IEC 61131-2

Complementary Attributes

Integrated Connection Type : Ethernet/Sercos 1 RJ45 10/100BASE-T, Ethernet 2 2 RJ45 100/1000BASE-T, serial link RJ45 RS232/RS485, 1 encoder female SUB-D 15 RS422/SSI, Smart Communication Bus, TM3 IO bus, USB type mini B
Maximum Cable Distance Between Devices : shielded cable <3 m fast input, shielded cable <3 m fast output, unshielded cable <50 m input, unshielded cable <50 m output, shielded cable <30 m RS485 link, shielded cable <15 m RS232
Maximum Number Of Connected Devices : EtherNet/IP: 64, Modbus TCP: 64, Modbus TCP/EtherNet/IP: 128
Maximum Number Of I O Expansion Module : 7 TM3 IO module (remote I/O-Architecture), 7 TM3 IO module (local I/O-Architecture), 64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture)
Maximum Tungsten Load : <1.5 W, <1.5 W
Maximum Current Per Output Common : 0.5 A Q0...Q3 fast output
Maximum Leakage Current : 10 µA output
Maximum Output Frequency : 300 kHz
Us Rated Supply Voltage : 24 V DC - 15...20 %

Important Information Attributes

Persona Type Ids : EU, OM, OM8
Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Application Structure : 8 event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
Clock Drift : <= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C
Configurable Filtering Time : 0.001 ms fast input, 0.002 ms fast input, 0.005 ms fast input, 0.01 ms fast input, 0.05 ms fast input, 0.0.5 ms fast input, 1 ms fast input, 4 ms fast input, 12 ms fast input
Data Storage Equipment : <= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional)
Electrical Connection : removable spring terminal block for inputs and outputs, removable spring terminal block for connecting the 24 V DC power supply
Electromagnetic Emission : conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBµV/m30-230 kHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions230-1000 MHz IEC 55011
Insulation : between fast input and internal logic 550 V AC, non-insulated between inputs, between output and internal logic 550 V AC, non-insulated between outputs, between input and output 550 V AC, between supply and internal logic 550 V AC, non-insulated between supply and ground
Local Signalling : 1 LED (green/red) for PWR, 1 LED (green/red) for RUN, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for stop forced, 1 LED (green/red) for I/O error (I/O), 1 LED (green/orange) for SD card activity, 1 LED (green/orange) for SL activity, 1 LED (green/red) for ETH1 state, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for EIP MS, 1 LED (green/red) for EIP NS, 1 LED (green/red) for Sercos
Memory Capacity : 32 MB program RAM, 32 MB OS/website RAM, 192 MB system memory RAM
Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Positioning Functions : libraries axes coordinated, libraries axes synchronous, Sercos 3 motion bus
Protection Type : short-circuit and overload protection with automatic reset, reverse polarity protection, short-circuit protection
Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-4, 3 V 0.1...80 MHz, 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2 GHz...3 GHz IEC 61000-4-3
Resistance To Electrostatic Discharge : 4 kV on contact IEC 61000-4-2, 8 kV on air IEC 61000-4-2
Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
Response Time : <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output
Transmission Rate : 115 kbit/s 15-15 m RS485, 115 kbit/s 3-3 m RS232, 480 Mbit/s 3-3 m USB, 10/100 Mbit/s Ethernet1, 10/100/1000 Mbit/s Ethernet2
Upstream Connectivity : IIoT-ready machine to cloud, connected machine to plant
Vibration Resistance : 1 gn 8.4-200 Hz panel mounting, 3.5 mm 2-8.4 Hz symmetrical rail, 1 gn 8.4-200 Hz symmetrical rail, 3.5 mm 2-8.4 Hz panel mounting
Voltage State 0 Guaranteed : <= 5 V DC, <= 5 V DC, <= 5 V DC, <= 5 V DC
Voltage State 1 Guaranteed : >= 15 V DC, >= 15 V DC, >= 15 V DC, >= 15 V DC
Carbon Footprint Of The Distribution Phase A4 : 0.10683, 0.1 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.42708, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0086323
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 19 kg CO2 eq., 18.701
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 1 185 kg CO2 eq., 1184.6
Medium Desc : motion controller, Modicon M262, 3ns per instruction, 24 axes, Ethernet, Sercos
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Global Commercial Status : Commercialised
Return Indicator : Y
Country Of Origin 6 : US
Stocking Flag : N
Device Type : PLC System - PLC CPU
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 20 year(s)
Legacy Weee Scope : In
Scope Perimeter : At least in Europe
Eoli Availability Display : Yes
End Of Life Doc Ref : ENVEOLI1904006EN
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant By Exemption
Rohs Eur Full Compliance Status : Compliant By Exemption
China Rohs In Scope : Yes
With Recycled Cardboard : Yes
Without Single Use Plastic : Yes
Product Contributes To Saved And Avoided Emissions : No
Function Option Id : ADVANCED
Function Option : Advanced
Market Segmentation Id : INDUSTRIAL
Market Segmentation : Industrial
Product Kit Identifier : N
Cycle Time : 0.5 ms
Data Backed Up : 1 GB built-in flash memory backup of user programs
Encoder Type : incremental encoder
Execution Time For 1 Kinstruction : 0.003 ms
Overvoltage Protection : with
Immunity To Microbreaks : 0.01 ms
Inrush Current : 40 A
Power Consumption In W : 82 W
Product Availability : Stock - Normally stocked in distribution facility
Product Or Component Type : Motion controller
Range Of Product : Logic/motion controller - Modicon M262
Realtime Clock : with
Reset Time : 200 ms automatic reset fast output
Returnability : Yes
Shock Resistance : 15 gn 11 ms
Software Version : EIME v5.8.1
Supply Voltage Limits : 20.4-28.8 V DC
Sustainable Packaging : Yes
Total Lifecycle Carbon Footprint : 1 204 kg CO2 eq.
Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code : ENVPEP1904006EN
Database Version : 2016-11
Pep Verification Date : 2021-10-01
Pcr Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Data Source : referent product
Functional Unit Description : For logic control of multiple input and output arrangements (TM262L) and for motion control of up to 16 synchronized axes, embedding a safety control application capable of attaining SIL3 (TM262M) 100% of the time for 10 years.
Energy Model Manufacturing A1 A3 2 : Energy model used: Indonesia
Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
Height Nominal : 100 mm
Width Nominal : 125 mm

Environment Attributes Main

Ambient Air Temperature For Operation : -20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-50 °C vertical installation), -20-45 °C flat mounting), -20-45 °C flat mounting), -20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-45 °C flat mounting)
Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Take Back : Nej
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Mercury Free : Yes
Carbon Footprint : 1203.8
Ambient Air Temperature For Storage : -40-85 °C
Circularity Profile : ENVEOLI1904006EN
Environmental Disclosure : ENVPEP1904006EN
Eu Rohs Directive : Compliant By Exemption
Ip Degree Of Protection : IP20
Operating Altitude : 0...6561.68 ft (0...2000 m)
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : Yes
Product Compatibility : external encoder 5/24 V DC no encoder power supply
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Storage Altitude : 0-3000 m
Pep Code : ENVPEP1904006EN
Pep Verification Date : 2021-10-01
Pcr Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review

General Attributes

Product Or Component Type : Motion controller
Range Of Product : Logic/motion controller - Modicon M262

ETIM

ETIM 8 : EC000236
ETIM 9 : EC000236

Output Attributes

Discrete Output Current : 0.5 A fast output Q0...Q3)
Discrete Output Logic : source
Discrete Output Number : 4 transistor fast output
Discrete Output Type : transistor
Discrete Output Voltage : 24 V DC
Maximum Current Per Output Common : 0.5 A Q0...Q3 fast output
Maximum Output Frequency : 300 kHz
Output Voltage Limits : 30 V DC

Surge Protection And Filtering Attributes

Configurable Filtering Time : 0.001 ms fast input, 0.002 ms fast input, 0.005 ms fast input, 0.01 ms fast input, 0.05 ms fast input, 0.0.5 ms fast input, 1 ms fast input, 4 ms fast input, 12 ms fast input
Surge Withstand : 1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5

Input Attributes

Discrete Input Current : 7.5 mA fast input
Discrete Input Logic : sink
Discrete Input Number : 4 , discrete input fast input IEC 61131-2 Type 1
Discrete Input Voltage : 24 V
Discrete Input Voltage Type : DC
Input Impedance : 2.81 kOhm input

Specifications

Country of Origin : Mexico, Singapore
Depth : 90 mm

motion controller, Modicon M262, 3ns per instruction, 24 axes, Ethernet, Sercos
