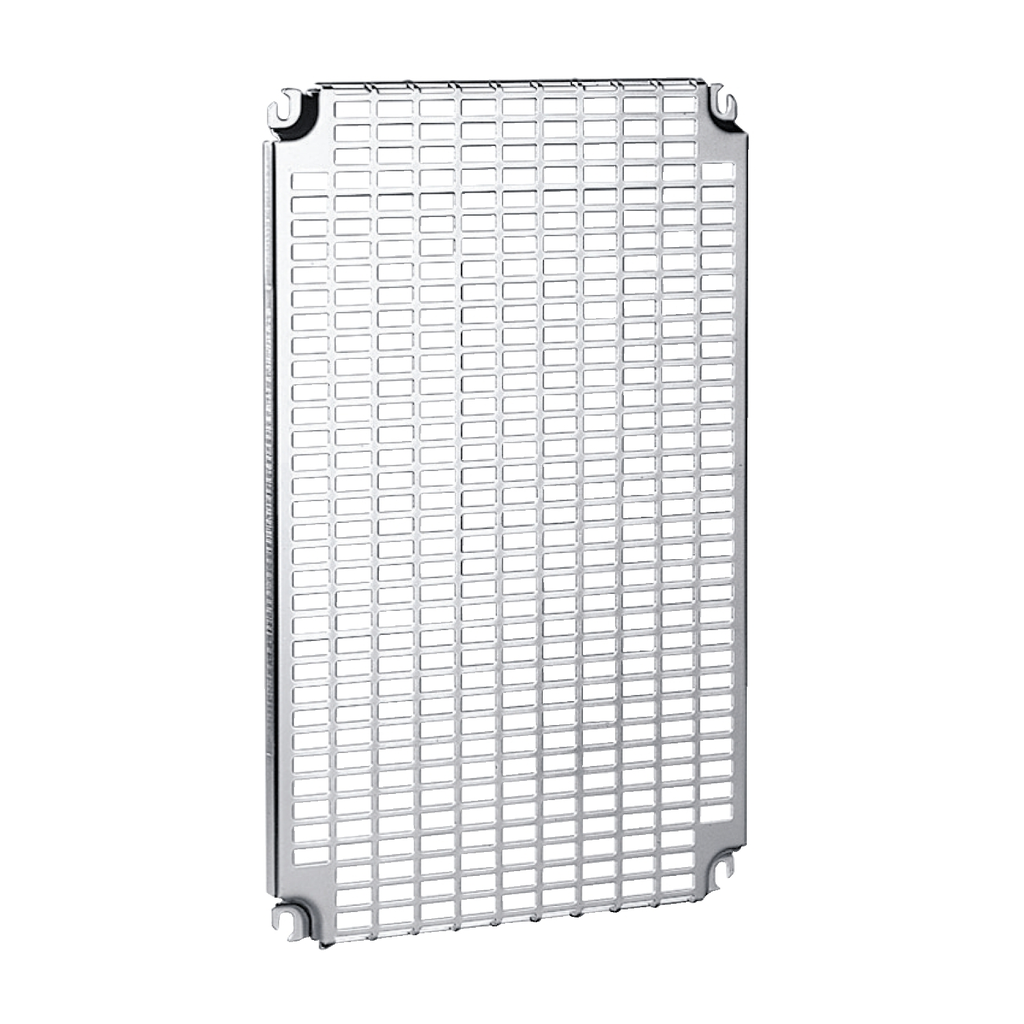

Monobloc perforated plates with universal perforations for CRN, S3D, PLM. For enclosures H is400 x W is300 mm. Multi-purpose accessory. Step slide or direct fixing on back studs mounting (M8 screws). Telequick perforated. Cut-out dimensions is 11x26mm. Steel made, zinc coated surface finish. 198 slots. Variant particularity is Installation in rear of enclosure.

• Features
• Height 15.7 inches
• Width 11.8 inches
• Telequick perforated with 198 slots
• Universal perforations 0.43in x 1.0in

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Enclosure Nominal Dimensions : - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm, - H: 400 mm W: 300 mm
• Fixing Mode : screwed on backstuds M8, by fixing element
• Mounting Location : direct fixing on backstuds, step slide
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-18
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Cut Out Dimensions : 11 x 26 mm
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Material : steel
• Mounting Plate Description : Telequick perforated
• Package Weight Lbs : 720.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : mounting plate
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Thickness : 2 mm
• Accessory Separate Part Category2 : mounting accessory
• Medium Desc : Monobloc perforated plates , H400xW300mm with universal perforations 11x26mm
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2202003EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2202003EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2202003EN
• General Attributes
• Product Or Component Type : mounting plate
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Depth : 15 mm
