module network TM4 1 Profibus DP slave

module network TM4 1 Profibus DP slave

SQDTM4PDPS1 TM4PDPS1 360648064906
0.00 / EA
  • Certifications: C-tick, CULus
  • Current: 290 mA
  • Depth: 90 mm
  • Height: 90 mm
  • Net Weight: 0.1 kg
  • Standard: EIA-485, EN/IEC 61131-2, UL 508
  • Width: 25 mm

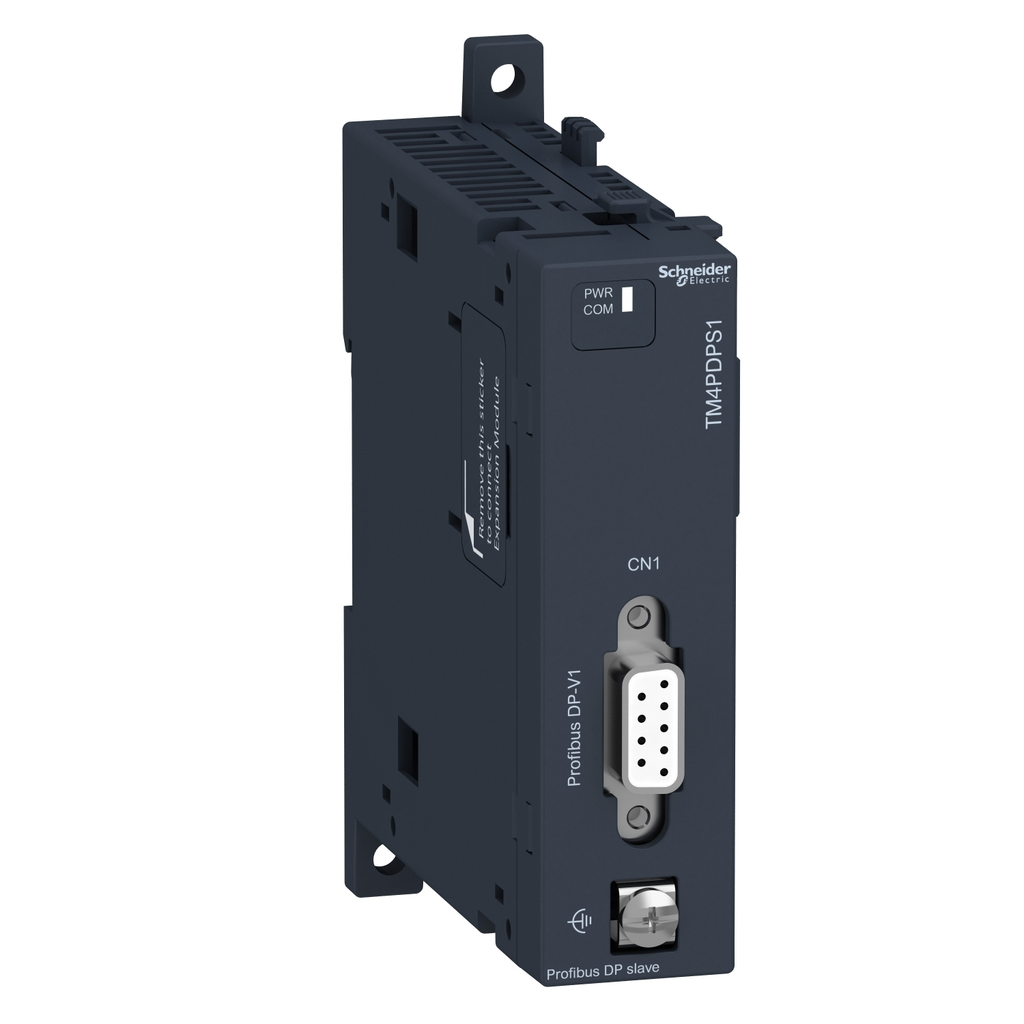

This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.
  • Product Description
  • Specifications
This communication module is proposed as an option Modicon M241/251 controllers. This module provides slave Profibus DP. It is equipped with a 9-way SUB-D connector.
  • Net Weight : 0.1 kg
  • Storage Altitude : 0-3000 m
  • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2...2.7 GHz EN/IEC 61000-4-3
  • Vibration Resistance : 1 mm 5-13.2 Hz symmetrical rail || 3 gn 8.7-150 Hz symmetrical rail || 1 mm 5-13.2 Hz panel mounting || 0.7 gn 13.2-100 Hz panel mounting
  • Current Consumption : 290 mA 5 V DC communication bus
  • Power Dissipation In W : 1.5 W
  • Insulation : between bus and internal logic 1000 V DC
  • Surge Withstand : 1 kV power lines (DC) common mode EN/IEC 61000-4-5 || 2 kV power lines (AC) common mode EN/IEC 61000-4-5 || 2 kV relay output common mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 1 kV shielded cable common mode EN/IEC 61000-4-5 || 0.5 kV power lines (DC) differential mode EN/IEC 61000-4-5 || 1 kV power lines (AC) differential mode EN/IEC 61000-4-5 || 1 kV relay output differential mode EN/IEC 61000-4-5 || 0.5 kV I/O differential mode EN/IEC 61000-4-5
  • Ambient Air Temperature For Storage : -25-70 °C
  • Local Signalling : for power supply 1 LED (green/yellow) || for communication 1 LED (green/red)
  • Maximum Height : 90 mm
  • Transmission Rate : 1.5 Mbit/s 200-200 m || 500 kbit/s 400-400 m || 187.5 kbit/s 1000-1000 m || 9.6...93.75 kbit/s 1200-1200 m || 3...12 Mbit/s 100-100 m
  • Product Or Component Type : Profibus DP communication module
  • Ambient Air Temperature For Operation : -10-55 °C horizontal installation || -10-50 °C vertical installation
  • Integrated Connection Type : Profibus DP female SUB-D 9
  • Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
  • Marking : CE
  • Maximum Depth : 90 mm
  • Electrical Connection : screw connector terminal for connecting the functional ground || SUB-D 9 1 female connector for connecting Profibus
  • Product Compatibility : Modicon M241 logic controller || Modicon M251 logic controller
  • Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
  • Pollution Degree : 2
  • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL) || 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
  • Maximum Width : 25 mm
  • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Ip Degree Of Protection : IP20 with protective cover in place
  • Resistance To Fast Transients : 2 kV EN/IEC 61000-4-4 power lines) || 2 kV EN/IEC 61000-4-4 relay output) || 1.5 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 Ethernet line) || 1 kV EN/IEC 61000-4-4 serial link)
  • Standards : EN/IEC 61131-2 || UL 508 || EIA-485
  • Product Certifications : C-tick || cULus
  • Shock Resistance : 15 gn 11 ms
  • Resistance To Electrostatic Discharge : 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air Marine specification (LR, ABS, DNV, GL) || 6 kV on contact Marine specification (LR, ABS, DNV, GL)
  • Communication Port Protocol : Profibus DP V0 || Profibus DP V1
  • Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz EN/IEC 55011 || radiated emissions 80...50 dμV/m QP150-30000 kHz Marine specification (LR, ABS, DNV, GL) || radiated emissions 54 dBμV/m QP100-2000 MHz Marine specification (LR, ABS, DNV, GL) || conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz EN/IEC 55011 || conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz EN/IEC 55011 || conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz EN/IEC 55011 || radiated emissions 40 dBμV/m QP class A30-230 MHz EN/IEC 55011 || radiated emissions 60...54 dBμV/m QP30-100 MHz Marine specification (LR, ABS, DNV, GL) || radiated emissions 24 dBμV/m QP156-165 MHz Marine specification (LR, ABS, DNV, GL) || conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A230-1000 MHz EN/IEC 55011
  • Range Compatibility : Modicon M251 || Modicon M241
