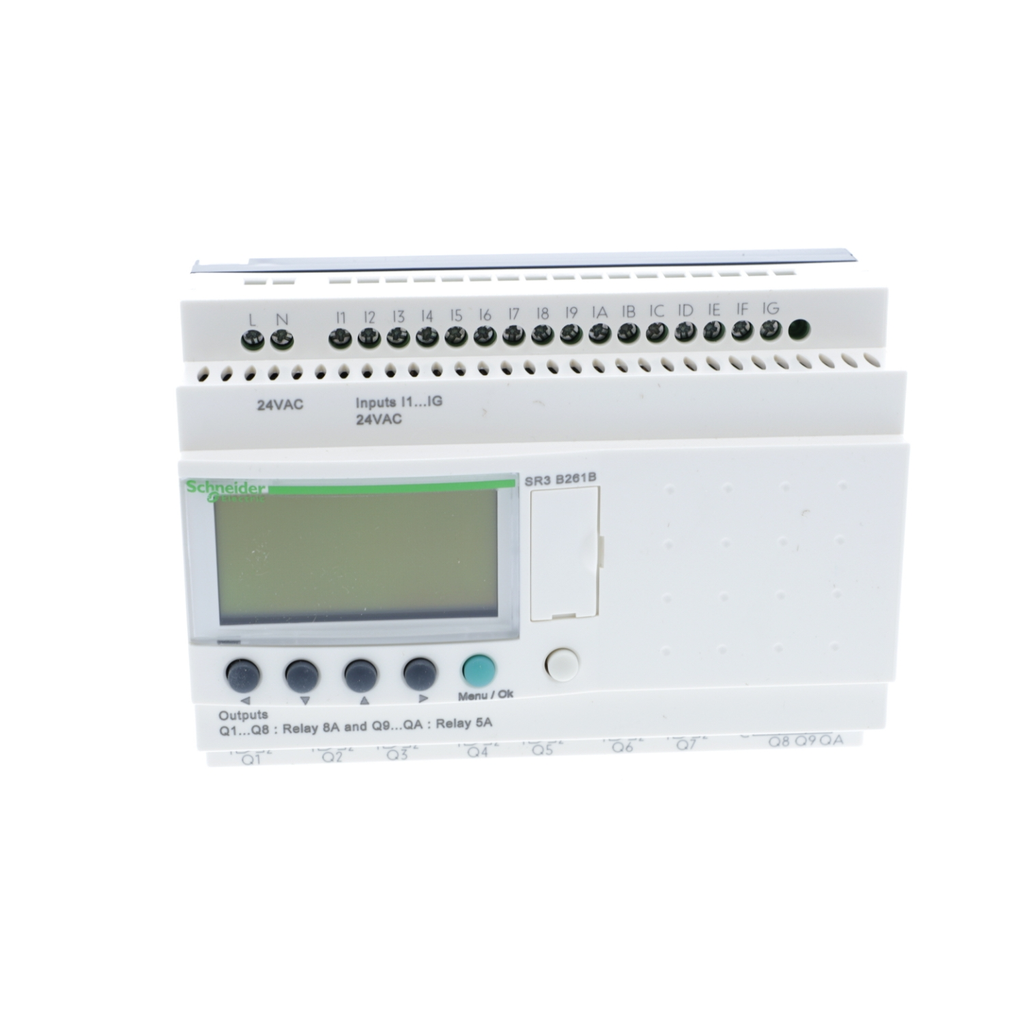

Modular smart relay, Zelio Logic, 24 I/O, 24 V AC, clock, display

Modular smart relay, Zelio Logic, 24 I/O, 24 V AC, clock, display

SQDSR3B261B SR3B261B 785901571902
418.20 / EACH
  • Certifications: CSA, C-tick, GL, GOST, UL
  • Net Weight: 0.4 kg
  • Number of Outputs: 10
  • Operating Temperature: -20-40 °C In Non-ventilated Enclosure IEC 60068-2-1 And IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 And IEC 60068-2-2
  • Standard: EN/IEC 60068-2-27 Ea, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 61000-4-12, EN/IEC 61000-4-2 Level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 Level 3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 Level 3
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 10 relay outputs with normally opened contact and 16 discrete inputs. It is a smart relay with a rated supply voltage of 24V, a maximum supply current of 280mA (without extension) and a power consumption of 7.5VA without extension. It is an IP20 and IP40 rated product. It weighs 0.4kg. This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-3 and EN/IEC 61000-4-12 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
  • Product Description
  • Specifications
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 10 relay outputs with normally opened contact and 16 discrete inputs. It is a smart relay with a rated supply voltage of 24V, a maximum supply current of 280mA (without extension) and a power consumption of 7.5VA without extension. It is an IP20 and IP40 rated product. It weighs 0.4kg. This product meets EN/IEC 61000-4-5, EN/IEC 61000-4-11, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-6 level 3, EN/IEC 60068-2-6 Fc, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-3 and EN/IEC 61000-4-12 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
  • Pollution Degree : 2 EN/IEC 61131-2
  • Overvoltage Category : III EN/IEC 60664-1
  • Maximum Supply Current : 280 mA without extension) || 415 mA with extensions)
  • Net Weight : 0.4 kg
  • Response Time : 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
  • Operating Rate In Hz : 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
  • Electrical Durability : AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1
  • Environmental Characteristic : EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2
  • Backup Time : 10 years 25 °C
  • Number Or Control Scheme Lines : 0-500 FBD || 0-240 ladder
  • Power Consumption In Va : 10 VA with extensions || 7.5 VA without extension
  • Warranty : 18 months
  • Current State 1 Guaranteed : >= 2 mA discrete input)
  • Switching Capacity In Ma : >= 10 mA 12 V relay output)
  • Discrete Input Number : 16
  • Ambient Air Temperature For Operation : -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
  • Clock : with
  • Current State 0 Guaranteed : <= 0.5 mA discrete input)
  • Local Display : with
  • Product Certifications : GOST || GL || UL || CSA || C-tick
  • Supply Frequency : 50/60 Hz
  • Standards : EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-6 level 3 || EN/IEC 60068-2-6 Fc || EN/IEC 60068-2-27 Ea || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-3 || EN/IEC 61000-4-12
  • Maximum Altitude Transport : 3048 m
  • Number Of Outputs : 10 relay
  • Voltage State 0 Guaranteed : <= 5 V discrete input
  • Contacts Type And Composition : NO relay output
  • Disturbance Radiated/Conducted : class B EN 55022-11 group 1
  • Output Thermal Current : 5 A for 2 outputs relay output || 8 A for 8 outputs relay output
  • Range Of Product : Zelio Logic
  • Tightening Torque : 0.5 N.m
  • Connections - Terminals : screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
  • Protection Type : against inversion of terminals (control instructions not executed)
  • Clock Drift : 12 min/year 0-55 °C || 6 s/month 25-25 °C
  • Isolation Voltage : 1780 V
  • Operating Altitude : 6561.68 ft (2000 m)
  • Cycle Time : 6-90 ms
  • Voltage State 1 Guaranteed : >= 14 V discrete input
  • Supply Voltage Limits : 20.4-28.8 V
  • Input Impedance : 4.6 kOhm discrete input
  • Ip Degree Of Protection : IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
  • [Uimp] Rated Impulse Withstand Voltage : 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
  • Product Or Component Type : modular smart relay
  • Discrete Input Frequency : 47...53 Hz || 57...63 Hz
  • Immunity To Microbreaks : 10 ms repeated 20 times
  • Output Voltage Limits : 5...30 V DC relay output) || 24...250 V AC
  • Relative Humidity : 95-95 % without condensation or dripping water
  • Ambient Air Temperature For Storage : -40-70 °C
  • Discrete Input Current : 4.4 mA
  • Checks : program memory on each power up
  • Discrete Input Voltage : 24 V AC
  • Mechanical Durability : 10000000 cycles relay output
  • [Us] Rated Supply Voltage : 24 V
