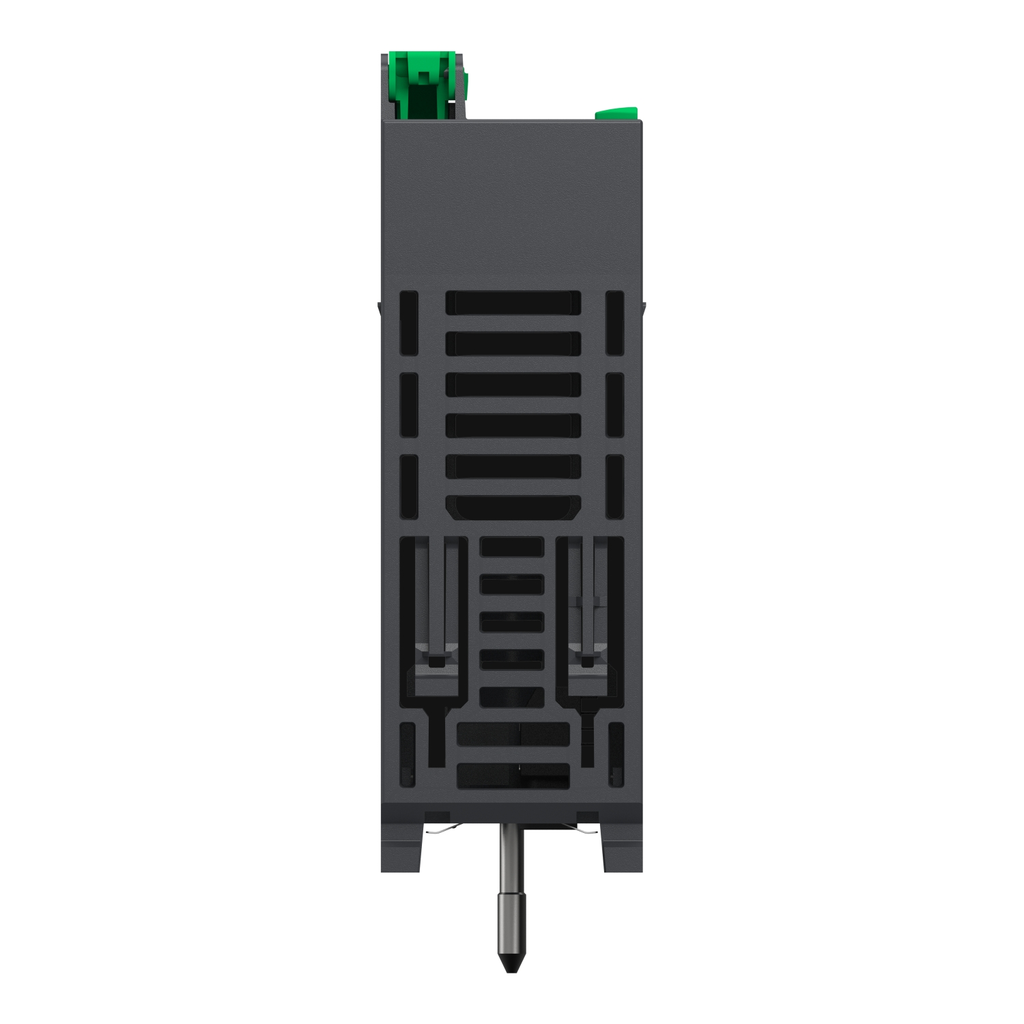

Modicon X80 Peripheral Remote IO Adaptor module

Modicon X80 Peripheral Remote IO Adaptor module

SQDBMXPRA0100 BMXPRA0100 785901680918
640.17 / EACH
  • Certifications: ATEX Zone 2/22, CE, CSA, EAC, IECEx Zone 2/22, Merchant Navy, RCM, UL
  • Standard: CSA C22.2 No 61010-2-201, EN/IEC 60079-0, EN/IEC 61000-6-5, EN/IEC 61010-2-201, EN/IEC 61131-2, EN/IEC 61850-3, IACS E10, UL 61010-2-201
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
  • Product Description
  • Specifications
This peripheral remote I/O adaptor module is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This adaptor module has 1 port with real time clock. It is an I/O adaptor module with a current consumption of 95mA and a power dissipation of 2.3W. It supports 448kB internal, 96kB removable memory capacity. This product is robust, high quality and based on the latest innovative technology. It is furnished with is EtherNet/IP for device network for integrated connections. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, C-Tick, Merchant Navy, GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with 0 to 1024 discrete I/O module, 0 to 256 analog I/O module and 0 to 2 Ethernet module. Modicon X80 is a common platform of modules that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC).
  • Environmental Characteristic : hazardous location class I division 2
  • Marking : CE
  • Maximum Altitude Transport : 3000 m
  • Ip Degree Of Protection : IP20
  • Warranty : 18 months
  • Local Signalling : for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for external fault (I/O) 1 LED (red) || for activity on Ethernet network (ETH ACT) 1 LED (green) || for memory card fault (CARD ERR) 1 LED (red) || for Ethernet link diagnostics (STS) 1 LED (green) || for Ethernet network status (link) 1 LED (green)
  • Communication Port Protocol : Modbus TCP
  • Ambient Air Temperature For Storage : -40-85 °C
  • Standards : EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5 || EN/IEC 61850-3 || EN/IEC 60079-0
  • Application Structure : 1 master task
  • Integrated Connection Type : Ethernet/IP device network
  • Power Dissipation In W : 2.3 W
  • Product Compatibility : 0-1024 discrete I/O module || 0-256 analog I/O module || 0-2 Ethernet module
  • Average Consumption In Ma : 95 mA
  • Memory Capacity : 448 kB internal || 96 kB removable
  • Relative Humidity : 95-95 % without condensation
  • Ambient Air Temperature For Operation : -25-70 °C
  • Operating Altitude : <= 6561.68 ft (2000 m)
  • Product Or Component Type : peripheral remote I/O adaptor
  • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
  • Range Of Product : Modicon X80
  • Number Of Port : 1
  • Module Format : standard
  • Realtime Clock : with
  • Product Certifications : CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
