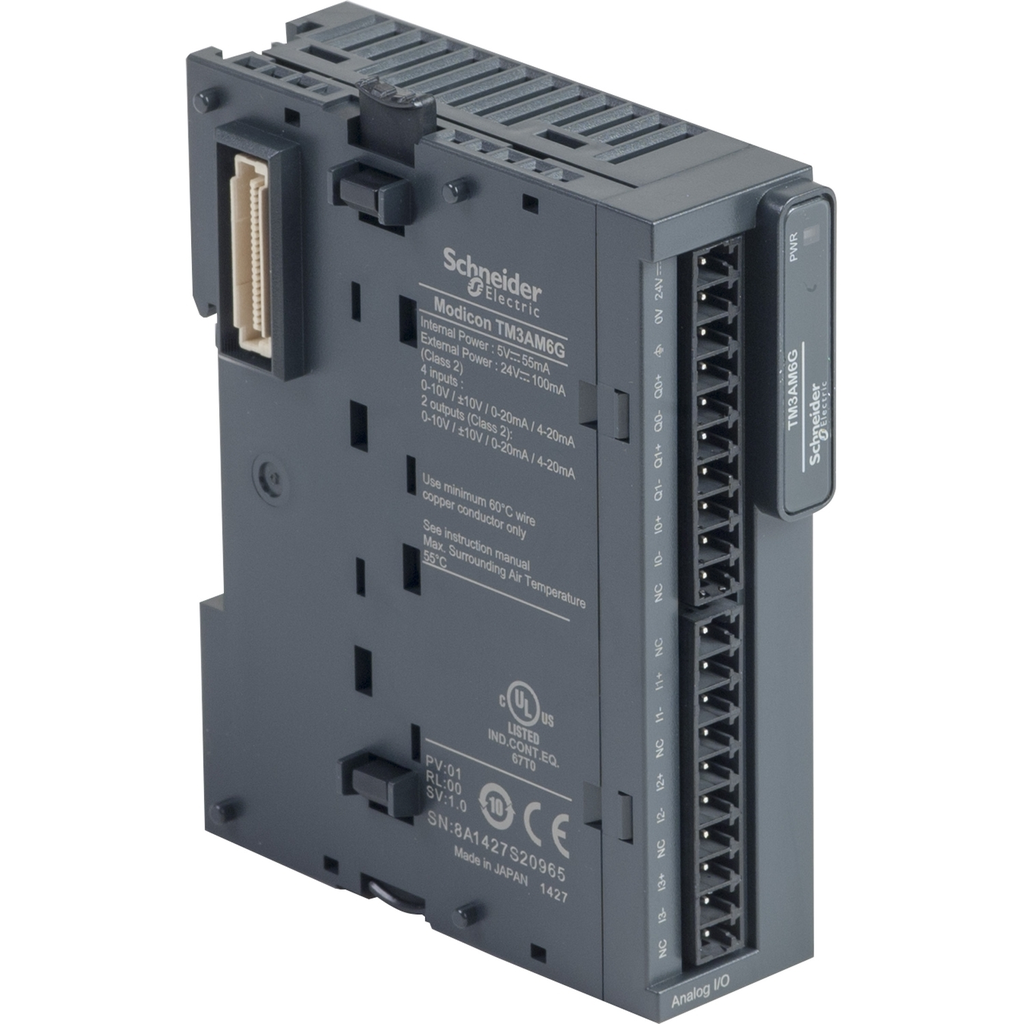

IO analog module, Modicon TM3, 4 inputs, 2 output, spring, 24V DC

TM3-4 ANALOG IN. 2 ANALOG OUT.

SQDTM3AM6G TM3AM6G 3606480648953
398.20 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CULus, CULus HazLoc, EAC, RCM, UKCA
  • Current: 100 mA, 24 V, 45 mA, 5 V, 55 mA
  • Depth: 70 mm
  • Height: 90 mm
  • Impedance: 1 mOhm, 50 ohm
  • Net Weight: 0.1 kg
  • Standard: IEC 61131-2
  • Storage Temperature: -25-70 °C
  • Width: 23.6 mm
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
QTY
  • Product Description
  • Specifications
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.1kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Complementary
    • Electrical Connection : 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs || 10 x 1.5 mm² removable spring terminal block pitch 3.81 mm for inputs, outputs and supply
    • Height : 90 mm
    • Input Impedance : <= 50 Ohm current || >= 1 MOhm voltage
    • Load Type : resistive
    • Type Of Cable : twisted shielded pairs cable <30 m input/output
    • Non-Linearity : +/- 0.2 %FS
    • Lsb Value : 2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
    • Permissible Continuous Overload : 13 V voltage || 40 mA current
    • Marking : CE
    • Analogue Input Resolution : 12 bits || 11 bits + sign
    • Net Weight : 0.1 kg
    • Absolute Accuracy Error : +/- 1 % of full scale || +/- 0.2 % of full scale at 25 °C
    • Current Consumption : 45 mA 5 V DC via bus connector no load || 55 mA 5 V DC via bus connector full load || 55 mA 24 V DC via external supply no load || 100 mA 24 V DC via external supply full load
    • Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time
    • Analogue Output Resolution : 12 bits || 11 bits + sign
    • Temperature Drift : +/- 0.01 %FS/°C
    • Supply Voltage Limits : 20.4-28.8 V
    • Stabilisation Time : 1 ms
    • Load Impedance Ohmic : 1 kOhm voltage || 300 Ohm current
    • Output Ripple : 20 mV
    • Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
    • Local Signalling : for PWR 1 LED (green)
    • Surge Withstand : 1 kV power supply common mode IEC 61000-4-5 || 0.5 kV power supply differential mode IEC 61000-4-5 || 1 kV I/O common mode IEC 61000-4-5 || 0.5 kV I/O differential mode IEC 61000-4-5
    • Cross Talk : <= 1 LSB
    • Width : 23.6 mm
    • Depth : 70 mm
    • [Us] Rated Supply Voltage : 24 V DC
    • Insulation : between input and supply 1500 V AC || between input and internal logic 500 V AC || between output and supply 1500 V AC || between output and internal logic 500 V AC
    • Sampling Duration : 1 ms || 10 ms
    • Repeat Accuracy : +/-0.5 %FS input || +/-0.5 %FS output
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1402009EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1402009EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : CE || UKCA || RCM || EAC || cULus || cULus HazLoc
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    • Standards : IEC 61131-2
    • Immunity To Microbreaks : 10 ms
    • Ambient Air Temperature For Operation : -10-55 °C horizontal installation || -10-35 °C vertical installation
    • Storage Altitude : 0-3000 m
    • Pollution Degree : 2
    • Shock Resistance : 15 gn 11 ms
    • Resistance To Magnetic Fields : 30 A/m IEC 61000-4-8
    • Vibration Resistance : 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
    • Ambient Air Temperature For Storage : -25-70 °C
    • Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
    • Ip Degree Of Protection : IP20
    • Resistance To Fast Transients : 1 kV IEC 61000-4-4 I/O)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Electromagnetic Emission : radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
  • Specifications
    • Range Of Product : Modicon TM3
    • Analogue Output Type : current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
    • Product Or Component Type : input/output analog module
    • Analogue Input Number : 4
    • Analogue Output Number : 2
    • Range Compatibility : Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
    • Analogue Input Type : current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
