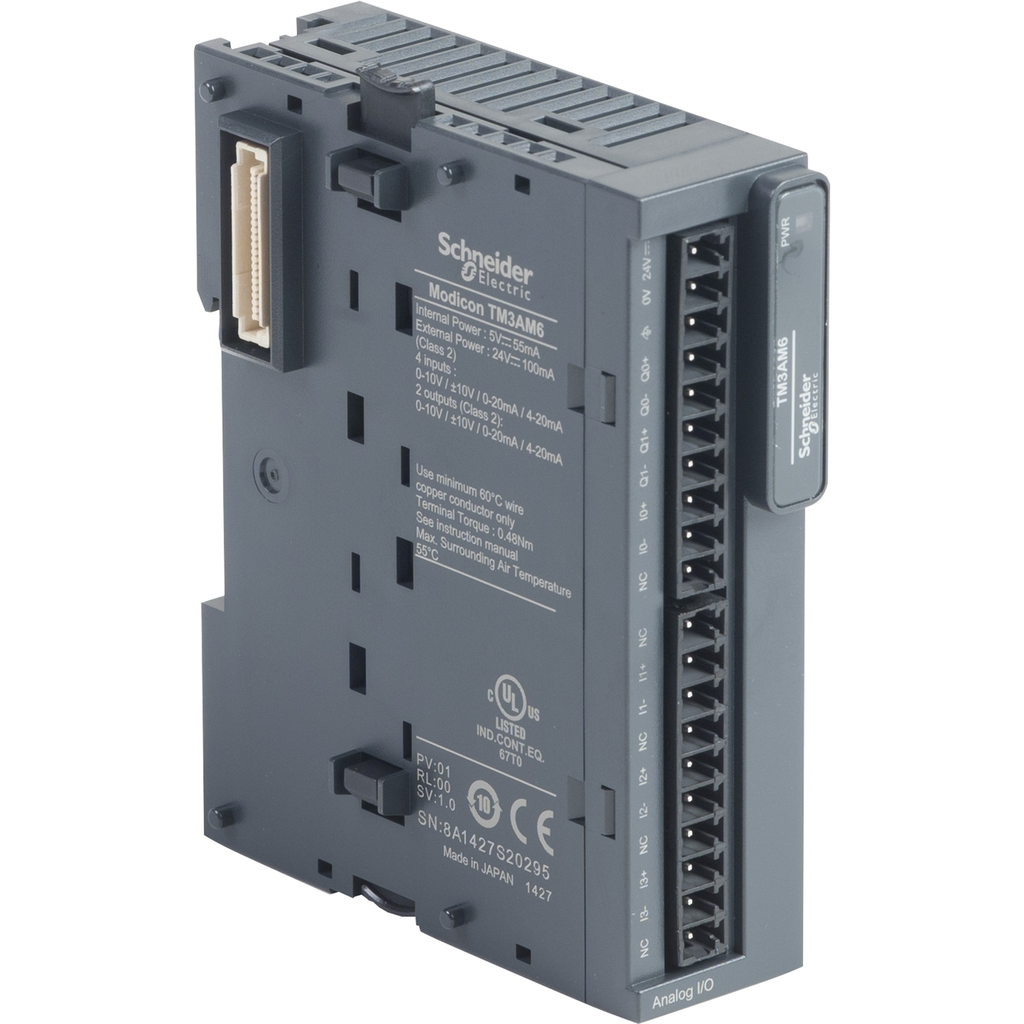

Input/output analog module, Modicon TM3, 4 inputs, 2 output (screw) 24 VDC

Input/output analog module, Modicon TM3, 4 inputs, 2 output (screw) 24 VDC

SQDTM3AM6 TM3AM6 785901333258
272.93 / EACH
  • Current: 100 mA, 24 V, 45 mA, 5 V, 55 mA
  • Depth: 70 mm
  • Height: 90 mm
  • Impedance: 1 mOhm, 50 ohm
  • Net Weight: 0.11 kg
  • Standard: EN/IEC 61010-2-201, EN/IEC 61131-2
  • Width: 23.6 mm
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Product Description
  • Specifications
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
  • Range Of Product : Modicon TM3
  • Range Compatibility : Modicon M221 || Modicon M241 || Modicon M251 || Modicon M262
  • Product Or Component Type : input/output analog module
  • Analogue Input Number : 4
  • Analogue Output Type : current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
  • Analogue Output Number : 2
  • Analogue Input Type : current 4...20 mA || current 0...20 mA || voltage 0...10 V || voltage - 10...10 V
  • Environment
    • Electromagnetic Emission : radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Electrostatic Discharge : 8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
    • Immunity To Microbreaks : 10 ms
    • Ip Degree Of Protection : IP20
    • Resistance To Magnetic Fields : 30 A/m EN/IEC 61000-4-8
    • Vibration Resistance : 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
    • Shock Resistance : 15 gn 11 ms
    • Relative Humidity : 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
    • Storage Altitude : 0-3000 m
    • Resistance To Fast Transients : 1 kV EN/IEC 61000-4-4 I/O)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Pollution Degree : 2
    • Ambient Air Temperature For Operation : -10-55 °C horizontal installation || -10-35 °C vertical installation
    • Ambient Air Temperature For Storage : -25-70 °C
    • Standards : EN/IEC 61010-2-201 || EN/IEC 61131-2
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
  • Offer Sustainability
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Disclosure : ENVPEP1402009EN
    • Circularity Profile : ENVEOLI1402009EN
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Rohs Exemption Information : Yes
  • Complementary
    • Maximum Width : 23.6 mm
    • Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time
    • Stabilisation Time : 1 ms
    • Permissible Continuous Overload : 13 V voltage || 40 mA current
    • Current Consumption : 45 mA 5 V DC via bus connector no load || 55 mA 5 V DC via bus connector full load || 55 mA 24 V DC via external supply no load || 100 mA 24 V DC via external supply full load
    • Load Type : resistive
    • Supply Voltage Limits : 20.4-28.8 V
    • Marking : CE
    • Load Impedance Ohmic : 1 kOhm voltage || 300 Ohm current
    • Sampling Duration : 1 ms || 10 ms
    • Repeat Accuracy : +/-0.5 %FS input || +/-0.5 %FS output
    • Output Ripple : 20 mV
    • Surge Withstand : 1 kV power supply common mode EN/IEC 61000-4-5 || 0.5 kV power supply differential mode EN/IEC 61000-4-5 || 1 kV I/O common mode EN/IEC 61000-4-5 || 0.5 kV I/O differential mode EN/IEC 61000-4-5
    • Absolute Accuracy Error : +/- 1 % of full scale || +/- 0.2 % of full scale 25 °C
    • Mounting Support : top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
    • Net Weight : 0.11 kg
    • Analogue Input Resolution : 12 bits || 11 bits + sign
    • Insulation : between input and supply 1500 V AC || between input and internal logic 500 V AC || between output and supply 1500 V AC || between output and internal logic 500 V AC
    • Maximum Height : 90 mm
    • Electrical Connection : 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs, outputs and supply
    • Local Signalling : for PWR 1 LED (green)
    • [Us] Rated Supply Voltage : 24 V DC
    • Temperature Drift : +/- 0.01 %FS/°C
    • Maximum Depth : 70 mm
    • Lsb Value : 2.44 mV 0...10 V voltage || 4.88 mV - 10...10 V voltage || 4.88 µA 0...20 mA current || 3.91 µA 4...20 mA current
    • Input Impedance : <= 50 Ohm current || >= 1 MOhm voltage
    • Type Of Cable : twisted shielded pairs cable <30 m input/output
    • Non-Linearity : +/- 0.2 %FS
    • Cross Talk : <= 1 LSB
    • Analogue Output Resolution : 12 bits || 11 bits + sign
