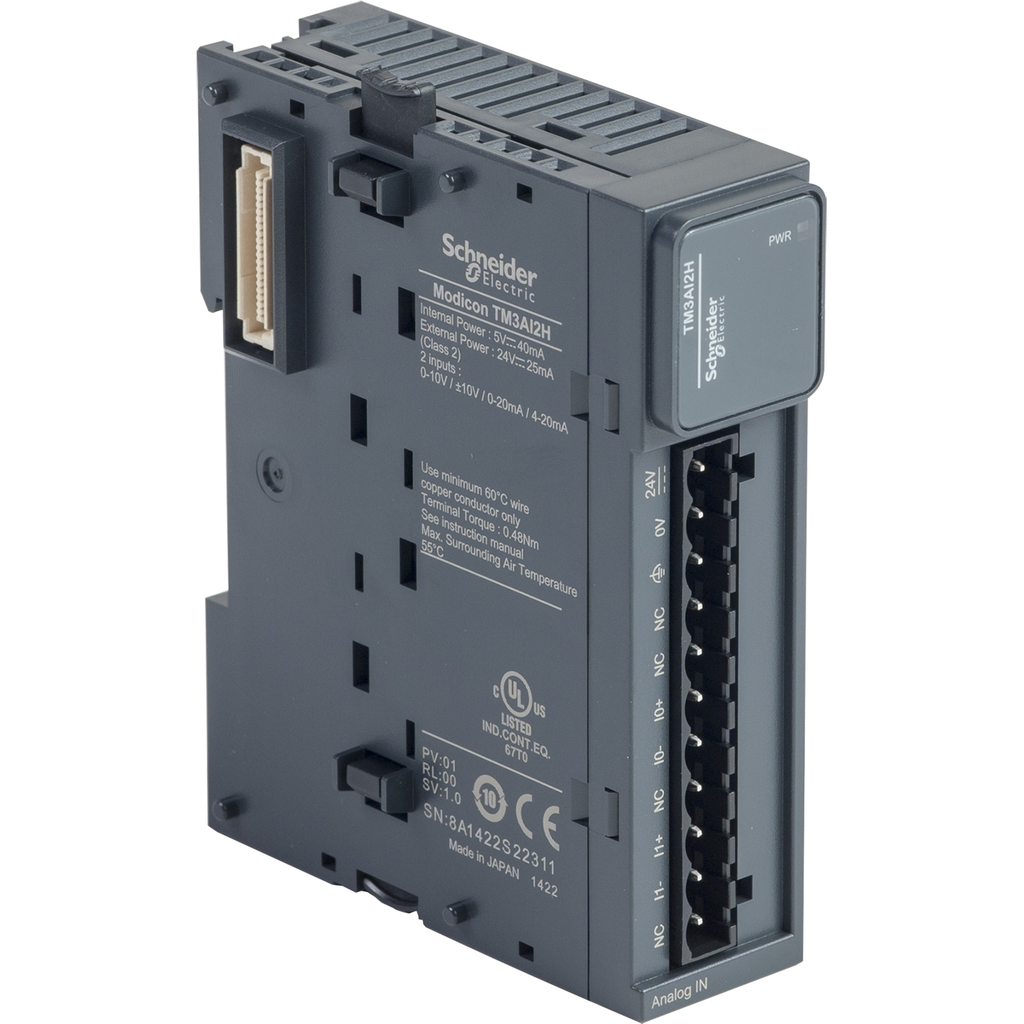

analog input module, Modicon TM3, 2 inputs high resolution, screw, 24V DC

TM3-2 ANALOG INPUTS HIGH RES.

SQDTM3AI2H TM3AI2H 3606480648885
325.41 / EA
http://schema.org/OutOfStock
Mayer-DDS-analog input module, Modicon TM3, 2 inputs high resolution, screw, 24V DC-1
  • Country of Origin: Japan
  • Depth: 2.76 in
  • Height: 3.54 in
  • Width: 0.93 in
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 2 inputs with 15bit + sign and 16bit resolution. It is an input module with a rated supply voltage
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 2 inputs with 15bit + sign and 16bit resolution. It is an input module with a rated supply voltage
  • Current Consumption
    • 30 mA 5 V DC via bus connector no load
    • 40 mA 5 V DC via bus connector full load
    • 40 mA 5 V DC via b
  • Mounting Support
    • top hat type TH35-15 rail IEC 60715
    • top hat type TH35-7.5 rail IEC 60715
    • plate or panel with fixing kit
  • Resistance To Magnetic Fields
    • 30 A/m IEC 61000-4-8
  • Range Compatibility
    • Modicon M221
    • Modicon M241
    • Modicon M251
    • Modicon M262
  • Analogue Input Type
    • current 4...20 mA
    • current 0...20 mA
    • voltage 0...10 V
    • voltage - 10...10 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Permissible Continuous Overload
    • 13 V voltage
    • 40 mA current
  • Carbon Footprint Of The Installation Phase A5
    • 0.0058833718780732834
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.5 kg CO2 eq.
    • 0.5341846124131088
  • Resistance To Conducted Disturbances
    • 10 V 0.15...80 MHz IEC 61000-4-6
    • 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 1
  • Electrical Connection
    • 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and supply
    • 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 14 kg CO2 eq.
    • 14.434905846397077
  • Vibration Resistance
    • 3.5 mm 5-8.4 Hz DIN rail
    • 3 gn 8.4-150 Hz DIN rail
  • Type Of Cable
    • twisted shielded pairs cable <30 m input
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 23 kg CO2 eq.
    • 22.767616570511613
  • Resistance To Fast Transients
    • 1 kV IEC 61000-4-4 I/O)
  • Relative Humidity
    • 10-95 %, without condensation in operation)
    • 10-95 %, without condensation in storage)
    • 10-95 %, without condensation in stora
  • Surge Withstand
    • 1 kV power supply common mode IEC 61000-4-5
    • 0.5 kV power supply differential mode IEC 61000-4-5
    • 0.5 kV power supply differ
  • Us Rated Supply Voltage
    • 24 V DC
  • Electromagnetic Emission
    • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011
    • radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz
  • Resistance To Electrostatic Discharge
    • 8 kV in air IEC 61000-4-2
    • 4 kV on contact IEC 61000-4-2
  • Carbon Footprint Of The Distribution Phase A4
    • 0.04988872964154122
    • 0 kg CO2 eq.
  • Insulation
    • between input and supply 1500 V AC
    • between input and internal logic 500 V AC
  • Analogue Input Resolution
    • 16 bits
    • 15 bits + sign
  • Lsb Value
    • 0.153 mV 0...10 V voltage
    • 0.305 mV - 10...10 V voltage
    • 0.305 µA 0...20 mA current
    • 0.244 µA
  • Resistance To Electromagnetic Fields
    • 10 V/m 80 MHz...1 GHz IEC 61000-4-3
    • 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3
    • 1 V/m 2 GHz...3 GHz IEC 61000-4-3
    • 1 V/
  • Shock Resistance
    • 15 gn 11 ms
  • Input Impedance
    • <= 50 Ohm current
    • >= 1 MOhm voltage
  • Local Signalling
    • 1 LED (green) for PWR
  • Ambient Air Temperature For Operation
    • -10-55 °C horizontal installation
    • -10-35 °C vertical installation
  • Product Certifications
    • CE
    • UKCA
    • RCM
    • EAC
    • cULus
    • cULus HazLoc
  • Conformance Attributes
    • Standards : IEC 61131-2
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Etim 10 : EC001420
    • Baan Price : 698.65
    • Baan Currency : USD
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Manufacturing Carbon Footprint : 14.4349058463971
    • Distribution Carbon Footprint : 4.98887296415412e-02
    • Installation Carbon Footprint : 5.88337187807328e-03
    • Use Carbon Footprint : 22.7676165705116
    • End Of Life Carbon Footprint : 0.534184612413109
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1402009EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1901
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Conversion Time : 1 ms + 1 ms per channel + 1 controller cycle time
    • Cross Talk : <= 1 LSB
    • Immunity To Microbreaks : 10 ms
    • Marking : CE
    • Non Linearity : +/- 0.01 %FS
    • Package Weight Lbs : 220.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : analog input module
    • Range Of Product : Modicon TM3
    • Repeat Accuracy : +/-0.5 %FS
    • Returnability : Yes
    • Sampling Duration : 1 ms
    • Supply Voltage Limits : 20.4-28.8 V
    • Sustainable Packaging : Yes
    • Temperature Drift : +/- 0.006 %FS/°C
    • Total Lifecycle Carbon Footprint : 38 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 37.792479130841414
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : analog input module
    • Range Of Product : Modicon TM3
  • ETIM
    • ETIM 8 : EC001420
    • ETIM 9 : EC001420
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 37.7924791308414
    • Ambient Air Temperature For Storage : -25-70 °C
    • Circularity Profile : ENVEOLI1402009EN
    • Environmental Disclosure : ENVPEP1402009EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP20
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
  • Input Attributes
    • Analogue Input Number : 2
  • Specifications
    • Country of Origin : Japan
    • Height : 3.54 in
    • Width : 0.93 in
    • Depth : 2.76 in
