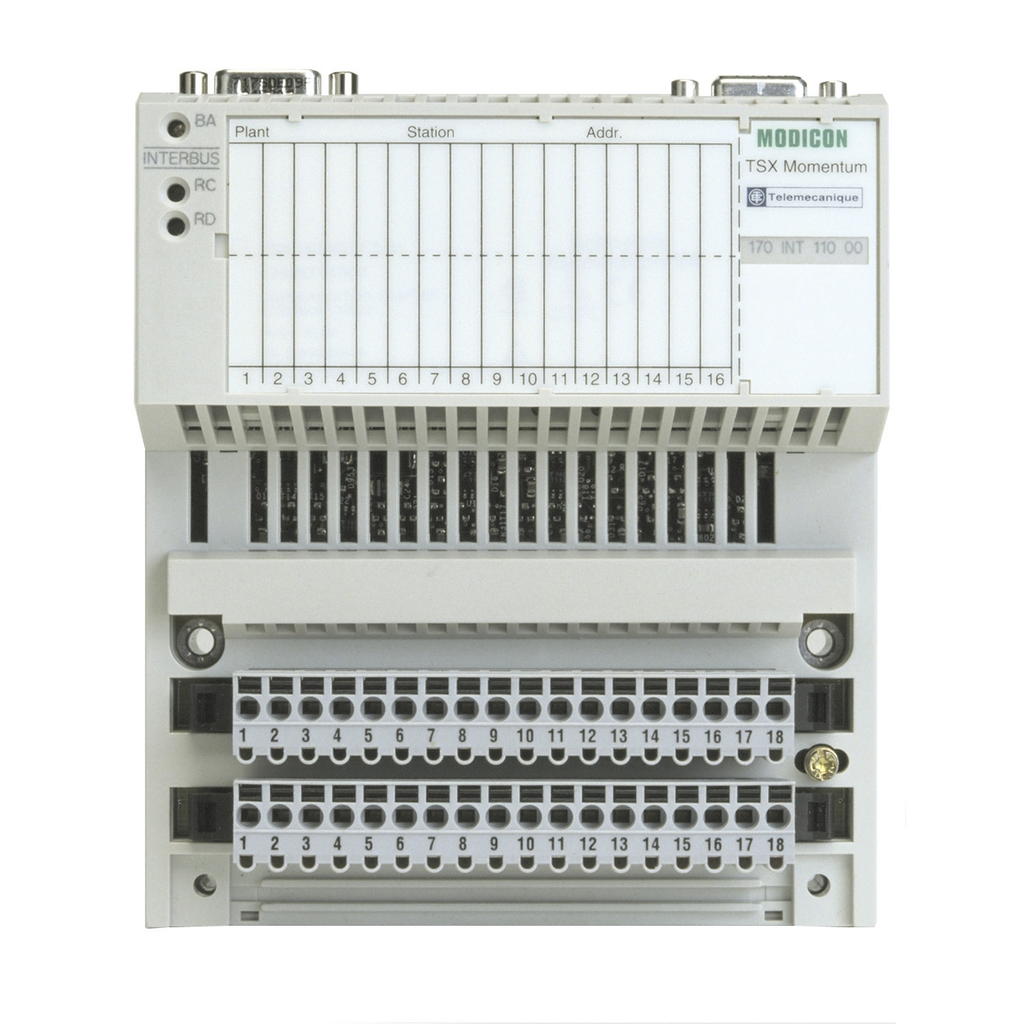

Modicon Momentum - Interbus communication adaptor - twisted pair

IB-S COMM. ADAPTER

SQD170INT11000 170INT11000 3595861000360
352.02 / EA
http://schema.org/OutOfStock
Mayer-DDS-Modicon Momentum - Interbus communication adaptor - twisted pair-1
  • Country of Origin: France
  • Warranty Length: 18 mth
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
QTY
  • Product Description
  • Features
  • Specifications
This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The Interbus communication adaptor supports ring topology. It offers twisted pair cable transmission support medium and 500kbps data transmission rate. The adaptor is accessible through the continuous shift register and master/slave method. It is furnished with 2 D-sub (DE-09) connectors for connecting Interbus. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Electrical Connection
    • 2 connectors SUB-D 9 for connecting Interbus
  • Maximum Cable Distance Between Devices
    • 12800 m
    • 400 m between two modules
  • Persona Type Names
    • End User
    • OEM - Control Panelbuilder
    • System Integrator
  • Relative Humidity
    • 95-95 % without condensation
  • Persona Type Ids
    • EU
    • OM8
    • SI
  • Resistance To Electrostatic Discharge
    • 4 kV contact IEC 801-2
    • 8 kV on air IEC 801-2
  • Resistance To Electromagnetic Fields
    • 10 V/m 80...1000 MHz IEC 801-3
  • Local Signalling
    • 1 LED (green) for bus enable (BA)
    • 1 LED (green) for remote bus check (RC)
    • 1 LED (green) for remote bus disabled (RD)
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2023
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 4
    • Tier : 4
    • Function Option Id : ADVANCED
    • Function Option : Advanced
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Number Of Devices Per Segment : 0-254
    • Package Weight Lbs : 188.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Interbus communication adaptor
    • Range Of Product : Modicon Momentum automation platform
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Interbus communication adaptor
    • Range Of Product : Modicon Momentum automation platform
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=697002&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
