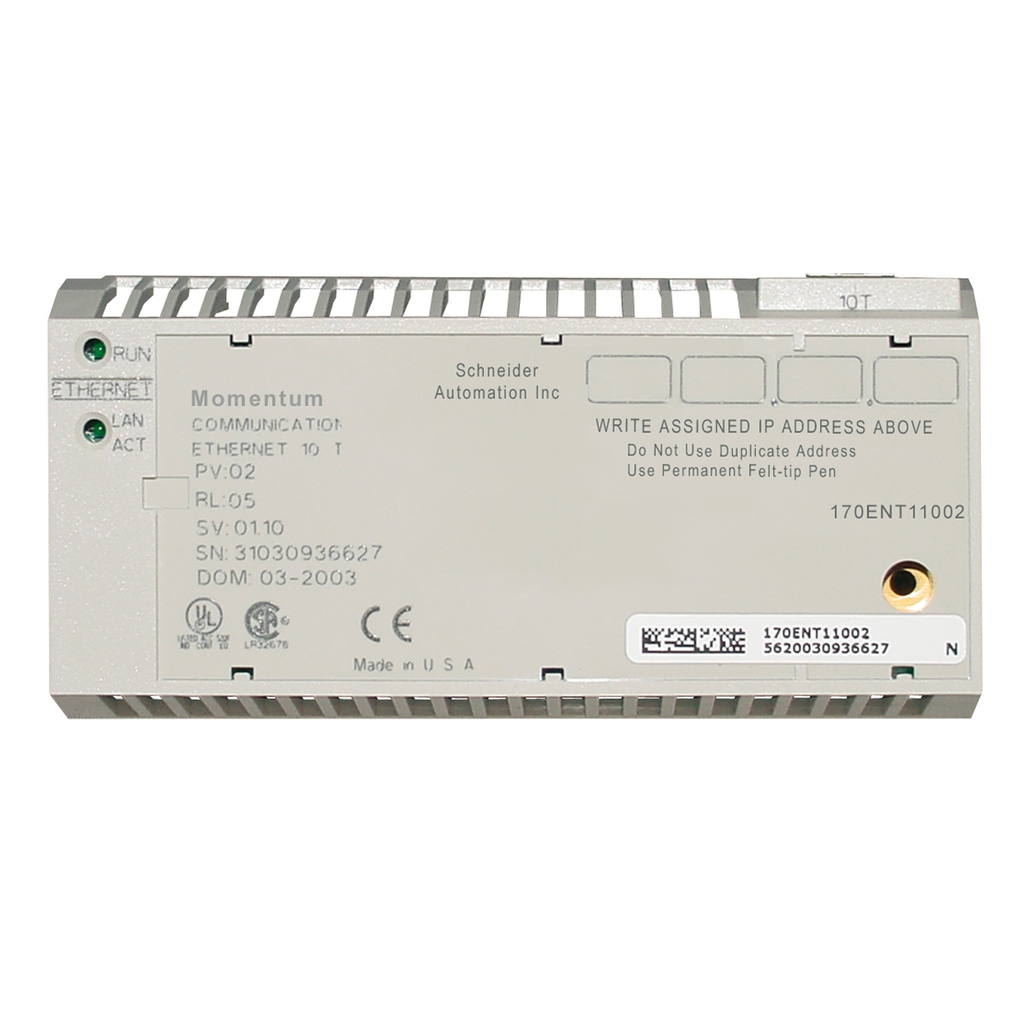

This adaptor is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. The ethernet TCP/IP communication adaptor supports multidrop and star network topology. It offers shielded twisted pair cable transmission support medium and 10/100Mbps data transmission rate. The adaptor is accessible through the peer to peer and master/slave method. It is furnished with 1 RJ45 connector for 100BASE-TX. It is an IP20 rated product. It weighs 0.07kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || UL
• Ambient Air Temperature For Operation : 0-60 °C
• Resistance To Electromagnetic Fields : 10 V/m 80...1000 MHz IEC 801-3
• Standards : CSA
• Ambient Air Temperature For Storage : -40-85 °C
• Relative Humidity : 95-95 % without condensation
• Resistance To Electrostatic Discharge : 4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
• Protective Treatment : TC
• Ip Degree Of Protection : IP20
• Operating Altitude : <= 16404.2 ft (5000 m)
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Packaging Without Single Use Plastic : Yes
• Scip Number : e618c0ab-f100-4cee-8aef-090f73ce1a54
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Maximum Cable Distance Between Devices : 1000 m without repeater
• Addressing : unique IEEE global address || IP address user assigned
• Electrical Connection : 1 connector RJ45 for 100BASE-TX
• Number Of Devices Per Segment : 0-32
• Module Configuration : BOOTP server to assign IP parameters
• Supply : from I/O base
• Marking : CE
• Fail State : fail safe
• Net Weight : 0.07 kg
• Control Parameter : CRC-32
• Topology : multidrop, star network
• Local Signalling : 1 LED (green) for Ethernet network 10 Mbits/s (10T) || 1 LED (green) for Ethernet network state (ST) || 1 LED (green) for module active (RUN) || 1 LED (yellow) for Ethernet network 10 Mbits/s (100T)
• Port Ethernet : 100BASE-TX
• Specifications
• Country of Origin : France
• Weight : 0.07 kg
• Range Of Product : Modicon Momentum automation platform
• Product Or Component Type : Ethernet TCP/IP communication adaptor
• Transmission Support Medium : shielded twisted pairs cable
• Communication Port Protocol : Ethernet TCP/IP
• Method Of Access : peer to peer || master/slave
• Transmission Rate : 10/100 Mbit/s
