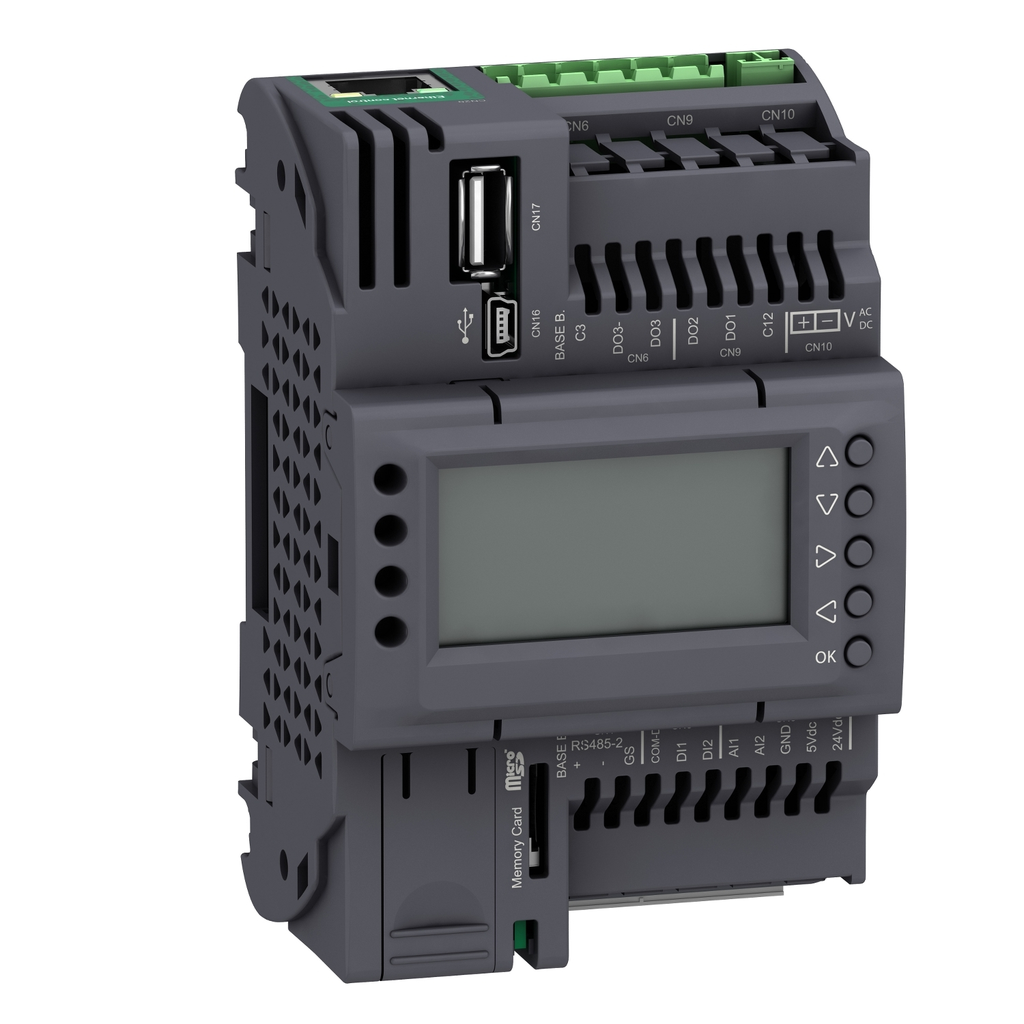

Controller, Modicon M171/M172/M173, performance display 7 IO, Ethernet, Modbus

PERFORMANCE PLC DISPLAY 7 I/O

SQDTM172PDG07R TM172PDG07R 3606481390073
368.10 / EA
http://schema.org/OutOfStock
  • Certifications: CE, CSA, CURus, EAC, RCM
  • Depth: 60.5 mm
  • Height: 110 mm
  • Impedance: 20 kOhm
  • Net Weight: 0.2 kg
  • Standard: CAN/CSA-E60730-1, CSA E60730-2-9, EN 60068-2-27, EN 60068-2-6 Fc, EN 60730-1, EN 60730-2-9, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, UL 60730-1, UL 60730-2-9, UL94 (material V0)
  • Storage Temperature: -30-70 °C
  • Width: 72 mm
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It offers 2 configurable by pair analogue input. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.2kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
QTY
  • Product Description
  • Specifications
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It offers 2 configurable by pair analogue input. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.2kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1803011EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1803011EN
    • Upgradeability : Upgradeable through digital modules and upgraded components
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Range Of Product : Modicon M171/M172
    • Discrete Output Number : 1 relay outputs SPDT with independent common || 2 relay outputs SPST with same common
    • Variant : programmable
    • Product Or Component Type : programmable controllers
    • Number Of Inputs/Outputs : 7
    • Discrete Output Current : 3 A relay SPST || 3 A relay SPDT
    • Analogue Input Number : 2 configurable by pair
    • Discrete Input Number : 2
    • Product Specific Application : HVAC
  • Environment
    • Product Certifications : EAC || CSA || RCM || CE || cURus
    • Standards : EN 60730-1 || UL 60730-1 || IEC 61000-4-6 || IEC 61000-4-3 || UL 60730-2-9 || IEC 61000-4-4 || IEC 61000-4-2 || CSA E60730-2-9 || IEC 61000-4-5 || EN 60068-2-6 Fc || IEC 61000-4-11 || EN 60730-2-9 || EN 60068-2-27 || CAN/CSA-E60730-1 || UL94 (material V0)
    • Pollution Degree : 2
    • Ambient Air Temperature For Operation : -20-60 °C
    • Directives : 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
    • Ambient Air Temperature For Storage : -30-70 °C
    • Relative Humidity : 5-95 % non-condensing
    • Ip Degree Of Protection : IP20
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Complementary
    • Power Consumption In W : 10 W 24 V AC/DC
    • Height : 110 mm
    • Mounting Support : DIN rail || panel mounting with accessory
    • Discrete Input Voltage : 24 V AC/DC
    • Display Type : Backlit LCD - 128 x 64 pixels
    • Net Weight : 0.2 kg
    • Number Of Port : 1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
    • [Us] Rated Supply Voltage : 24 V +/- 10 % AC || 20...38 V DC
    • Sensor Power Supply : 5-5 V DC 40 mA supplied by the controller || 24-24 V DC 100 mA supplied by the controller
    • Local Signalling : for programmable 1 LED (red) || for programmable 1 LED (yellow) || for programmable 1 LED (green) || for power 1 LED (green)
    • Input Impedance : 20 kOhm
    • Discrete Input Current : 5 mA AC/DC
    • Realtime Clock : built-in clock, clock drift <= 30 s/month at -20-60 °C
    • Width : 72 mm
    • Analogue Input Type : NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) || voltage 0...10 V 1 digit > 10 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) || impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 1500 Ohm || PTC temperature probe - 55...150 °C 0.1 °C 1500 Ohm || Pt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm || current 0...20 mA/4...20 mA 1 digit < 150 Ohm || direct input 10 kOhm Dry contact)
    • Overvoltage Category : II
    • Depth : 60.5 mm
    • Input/Output Number : 2 digital input || 2 analog input || 3 digital output
    • Discrete Input Logic : sink or source (positive/negative) up to 2 kHz
    • Measurement Accuracy : 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit || daOhm 0...300 daOhm +/- 2.5 daOhm || NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2.5 °C || Pt 1000 - 50...100 °C +/- 1.5 °C || Pt 1000 100…400 °C +/- 2.4 °C || Pt 1000 400...850 °C +/- 10 °C || hOhm 0...750 hOhm +/- 8.5 hOhm || hOhm 750 hOhm...1500 hOhm +/- 24 hOhm
