Modicon M172 Optimized and Performance expansion 12 I/Os

M172 Opt. & Perf. Expansion 12

SQDTM172E12R TM172E12R 3606481267610
237.66 / EA
http://schema.org/OutOfStock

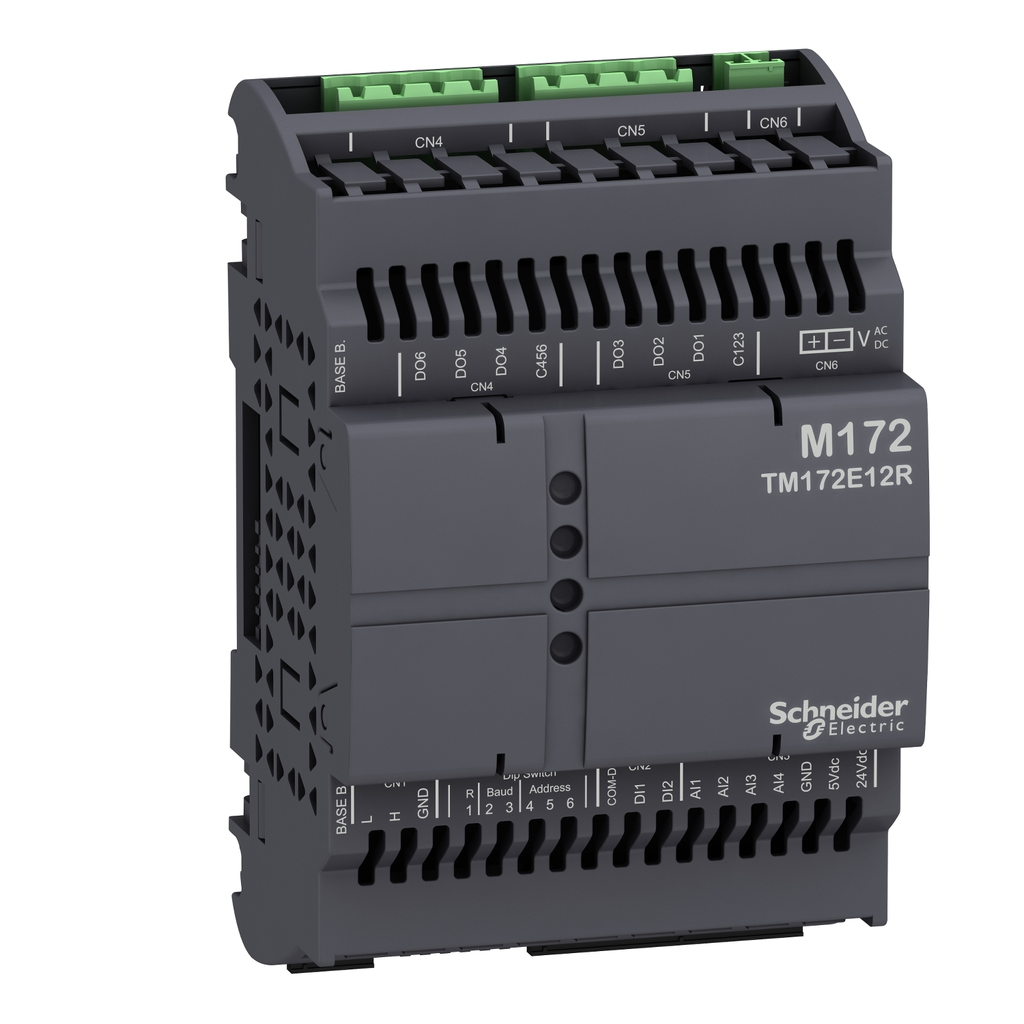

Mayer-DDS-Modicon M172 Optimized and Performance expansion 12 I/Os-1
  • Country of Origin: Sweden
  • Depth: 59 mm
This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 2 digital inputs, 4 analog inputs, and 6 digital outputs. It is connected via the CAN expansion bus of the M172 and M173 logic controllers. It increases the number of I/O up to 78 on M173 logic controllers, and up to 238 on M172 logic controllers. DIs are high-speed counters. The AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs. DOs are SPST 3A with the same common. It measures 72mm wide, 59mm deep, 110mm high, and weighs 0.140kg. It allows the expansion of the number of IOs on the HVAC controllers. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with M173 Optimized and M172 logic controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
QTY
  • Product Description
  • Features
  • Specifications
This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 2 digital inputs, 4 analog inputs, and 6 digital outputs. It is connected via the CAN expansion bus of the M172 and M173 logic controllers. It increases the number of I/O up to 78 on M173 logic controllers, and up to 238 on M172 logic controllers. DIs are high-speed counters. The AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs. DOs are SPST 3A with the same common. It measures 72mm wide, 59mm deep, 110mm high, and weighs 0.140kg. It allows the expansion of the number of IOs on the HVAC controllers. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with M173 Optimized and M172 logic controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001960_3D-CAD
  • Conformance Attributes
    • Product Certifications : CE, RCM, cURus, CSA, EAC
    • Standards : IEC 61000-4-11, EN 60068-2-6 Fc, IEC 61000-4-5, EN 60730-2-9, EN 60730-1, IEC 61000-4-2, UL 60730-2-9, IEC 61000-4-4, CSA E60730-2-9, CAN/CSA-E60730-1, IEC 61000-4-3, EN 60068-2-27, UL94 (material V0)
  • Complementary Attributes
    • Us Rated Supply Voltage : 24 V +/- 10 % AC, 20...38 V DC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8, SI
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    • Measurement Accuracy : NTC NK103 - 40...+110 °C +/- 1 °C, NTC NK103 110...137 °C +/- 1.9 °C, NTC 103AT-2 - 50…110 °C +/- 1 °C, PTC - 55...+135 °C +/- 1.1 °C, PTC - 150…135 °C +/- 3.1 °C, Pt 1000 - 200...-100 °C +/- 5 °C, Pt 1000 - 100...-50 °C +/- 3 °C, Pt 1000 - 50...+200 °C +/- 1.5 °C, Pt 1000 200...600 °C +/- 15 °C, Pt 1000 600...850 °C +/- 30 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...700 hOhm +/- 10 hOhm, hOhm 700 hOhm...1200 hOhm +/- 25 hOhm, hOhm 1200 hOhm...1500 hOhm +/- 60 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
    • Mounting Support : panel mounting with accessory, DIN rail
    • Power Consumption In W : 20 VA 24 V AC, 10 W 24 V DC
    • Sensor Power Supply : 5-5 V DC 50 mA, 24-24 V DC 125 mA
    • Carbon Footprint Of The Distribution Phase A4 : 0.0773102663176659, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.5129969948973472
    • Carbon Footprint Of The Installation Phase A5 : 0.014723916584763254, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 18 kg CO2 eq., 18.31241765634097
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 622 kg CO2 eq., 621.7379964170797
    • Medium Desc : Modicon M172 Optimized and Performance expansion 12 I/Os
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : Modicon M172 Optimized and Performance expansion 12 I/Os
    • Return Indicator : Y
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Weee Applicability : Finished product
    • Weee Scope : In
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1709014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Display Type : Without Display
    • Number Of Port : 1 CAN port - screw terminal block
    • Overvoltage Category : II
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : additional I/O module
    • Product Specific Application : HVAC control
    • Range Of Product : Modicon M171/M172
    • Realtime Clock : without clock
    • Returnability : Yes
    • Software Version : v6.2.5-6
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 641 kg CO2 eq.
    • Updatability : Yes
    • Upgradeability : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP1709014EN
    • Database Version : 2024-01
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; Low voltage; 2020; Italy, IT
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Height Nominal : 110 mm
    • Width Nominal : 72 mm
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-65 °C UL 60730-1
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 640.6554452512204
    • Ambient Air Temperature For Storage : -30-70 °C
    • Circularity Profile : ENVEOLI1709014EN
    • Environmental Disclosure : ENVPEP1709014EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % non-condensing
    • Pep Code : ENVPEP1709014EN
    • Pep Verification Date : 2025-09-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : additional I/O module
    • Range Of Product : Modicon M171/M172
    • Upgradeability : Yes
  • ETIM
    • ETIM 8 : EC001421
    • ETIM 9 : EC001421
  • Output Attributes
    • Discrete Output Current : 3 A relay SPST
    • Discrete Output Number : 3 relay outputs SPST with same common
  • Input Attributes
    • Analogue Input Type : NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C), NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C), current 0...20 mA 1 digit < 150 Ohm, current 4...20 mA 1 digit < 150 Ohm, voltage 0...10 V 1 digit > 10 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, Pt 100/Pt 1000 PTC - 55...150 °C 0.1 °C 2 kOhm, direct input 1 digit Dry contact), Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm
    • Input Output Number : 6 digital output, 4 analog input, 2 digital input
    • Analogue Input Number : 4 configurable by pair
    • Discrete Input Current : 2.5 mA AC/DC
    • Discrete Input Logic : positive logic (sink) up to 2 kHz
    • Discrete Input Number : 2
