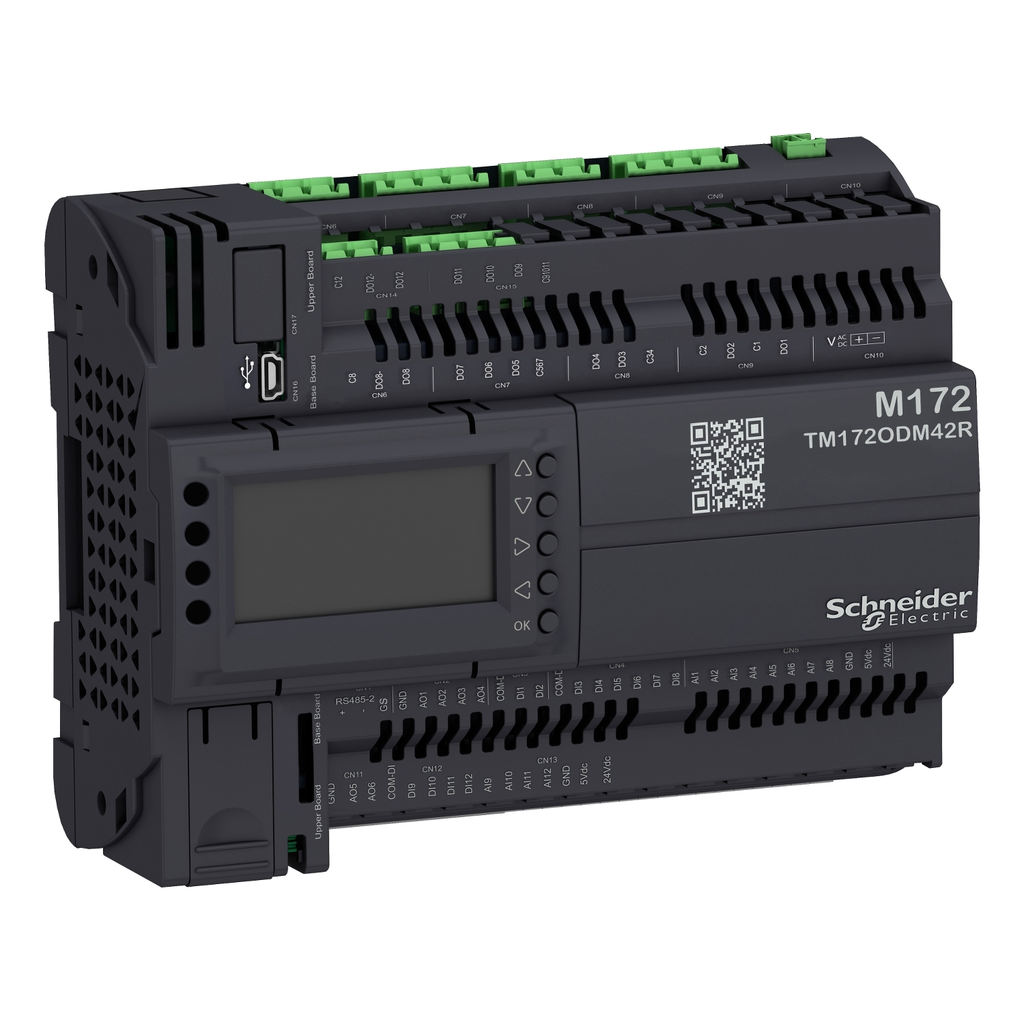

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 12 digital inputs, 12 analog inputs, 12 digital outputs, 6 analog outputs, and a display. This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port. It is a programmable logic controller for HVAC and Pumping applications. Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm. DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc). It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.480kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
QTY
  • Product Description
  • Features
  • Specifications
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 12 digital inputs, 12 analog inputs, 12 digital outputs, 6 analog outputs, and a display. This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port. It is a programmable logic controller for HVAC and Pumping applications. Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm. DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc). It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.480kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication : TM171ACAN, TM171AMB, TM171ARS485
  • Complementary Attributes
    • US Rated Supply Voltage : 24 V +/- 10 % AC, 24 V +/- 10 % AC, 24 V +/- 10 % AC, 20...38 V DC, 20...38 V DC
  • Important Information Attributes
    • Display Type : Backlit LCD - 128 x 64 pixels, Backlit LCD - 128 x 64 pixels
    • Local Signalling : 1 LED (red) for programmable, 1 LED (red) for programmable, 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (yellow) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for programmable, 1 LED (green) for programmable, 1 LED (green) for power, 1 LED (green) for power, 1 LED (green) for power
    • Measurement Accuracy : NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, PTC - 55...155 °C +/- 1.1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °C, Pt 1000 - 200...-100 °C +/- 10 °C, Pt 1000 - 200...-100 °C +/- 10 °C, Pt 1000 - 100...-50 °C +/- 2.5 °C, Pt 1000 - 100...-50 °C +/- 2.5 °C, Pt 1000 - 100...-50 °C +/- 2.5 °C, Pt 1000 - 50...100 °C +/- 1.5 °C, Pt 1000 - 50...100 °C +/- 1.5 °C, Pt 1000 - 50...100 °C +/- 1.5 °C, Pt 1000 100…400 °C +/- 2.4 °C, Pt 1000 100…400 °C +/- 2.4 °C, Pt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, Pt 1000 400...850 °C +/- 10 °C, Pt 1000 400...850 °C +/- 10 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit, 4...20 mA +/- 1 % of full scale +/- 1 digit, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, hOhm 0...1500 hOhm +/- 8.5 hOhm, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm, daOhm 0...300 daOhm +/- 2.5 daOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
    • Number Of Port : 1 CAN port - screw terminal block, 1 CAN port - screw terminal block, 1 CAN port - screw terminal block, 1 USB type mini B - USB device port Mini-B, 1 USB type mini B - USB device port Mini-B, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP)
    • Power Consumption In W : 14 W 24 V AC/DC, 14 W 24 V AC/DC, 14 W 24 V AC/DC
    • Realtime Clock : built-in clock, clock drift <= 30 s/month at -20-65 °C, built-in clock, clock drift <= 30 s/month at -20-65 °C, built-in clock, clock drift <= 30 s/month at -20-65 °C
    • Sensor Power Supply : 5-5 V DC 50 mA supplied by the controller, 5-5 V DC 50 mA supplied by the controller, 5-5 V DC 50 mA supplied by the controller, 5-5 V DC 50 mA supplied by the controller, 24-24 V DC 150 mA supplied by the controller, 24-24 V DC 150 mA supplied by the controller, 24-24 V DC 150 mA supplied by the controller, 24-24 V DC 150 mA supplied by the controller
    • Carbon Footprint Of The Distribution Phase A4 : 0.1635409479796779, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 1.0851859507443884
    • Carbon Footprint Of The Installation Phase A5 : 0.03114674662161458, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 39 kg CO2 eq., 38.73780658072128
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 580 kg CO2 eq., 580.288796655941
    • Auxiliaries : TM172DCLWT, TM172DCLWTH
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-25
    • HTML Description : Modicon M172 Optimized Display 42 I/Os
    • Manufacturer : Schneider Electric
    • WEEE Applicability : Finished product
    • WEEE Scope : In
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1709014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Package Weight Lbs : 440.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : programmable controllers
    • Product Specific Application : HVAC control
    • Range Of Product : Modicon M171/M172
    • Returnability : Yes
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 620 kg CO2 eq.
    • Updatability : Yes
    • Upgradeability : Yes
    • Variant : programmable
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1709014EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-60 °C horizontal UL 60730-1, -20-60 °C horizontal UL 60730-1, -20-60 °C horizontal UL 60730-1
    • Directives : 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % non-condensing, 5-95 % non-condensing
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 620.306476882008
    • Circularity Profile : ENVEOLI1709014EN
    • Environmental Disclosure : ENVPEP1709014EN
    • IP Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Pep Code : ENVPEP1709014EN
    • Pep Verification Date : 2025-09-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : No PSR
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : programmable controllers
    • Range Of Product : Modicon M171/M172
    • Upgradeability : Yes
  • Output Attributes
    • Analogue Output Number : 4 voltage 0...10 V, 4 voltage 0...10 V, 4 voltage 0...10 V, 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz), 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz), 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
    • Discrete Output Current : 3 A relay SPDT, 3 A relay SPDT, 3 A relay SPDT, 3 A relay SPST, 3 A relay SPST, 3 A relay SPST
    • Discrete Output Number : 2 relay outputs SPDT with independent common, 2 relay outputs SPDT with independent common, 2 relay outputs SPDT with independent common, 2 relay outputs SPDT with independent common, 3 relay outputs SPST with same common, 3 relay outputs SPST with same common, 3 relay outputs SPST with same common, 3 relay outputs SPST with same common, 5 relay outputs SPST with same common, 5 relay outputs SPST with same common, 5 relay outputs SPST with same common, 5 relay outputs SPST with same common, 2 relay outputs SPST with independent common, 2 relay outputs SPST with independent common, 2 relay outputs SPST with independent common, 2 relay outputs SPST with independent common
  • Input Attributes
    • Analogue Input Number : 12 configurable by pair, 12 configurable by pair
    • Analogue Input Type : impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm, voltage 0...10 V 1 digit > 10 kOhm, voltage 0...10 V 1 digit > 10 kOhm, voltage 0...10 V 1 digit > 10 kOhm, voltage 0...10 V 1 digit > 10 kOhm, NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), current 0...20 mA/4...20 mA 1 digit < 150 Ohm, current 0...20 mA/4...20 mA 1 digit < 150 Ohm, current 0...20 mA/4...20 mA 1 digit < 150 Ohm, current 0...20 mA/4...20 mA 1 digit < 150 Ohm, PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, PTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, direct input > 10 kOhm, direct input > 10 kOhm
    • Discrete Input Voltage : 24 V AC/DC, 24 V AC/DC
    • Input Output Number : 12 analog input, 12 analog input, 6 analog output, 6 analog output, 12 digital input, 12 digital input, 12 digital output, 12 digital output
    • Discrete Input Current : 2.5 mA
    • Discrete Input Logic : sink or source (positive/negative)
    • Number Of Inputs Outputs : 42
  • Batteries & Runtime Attributes
    • Removable Battery : YES
