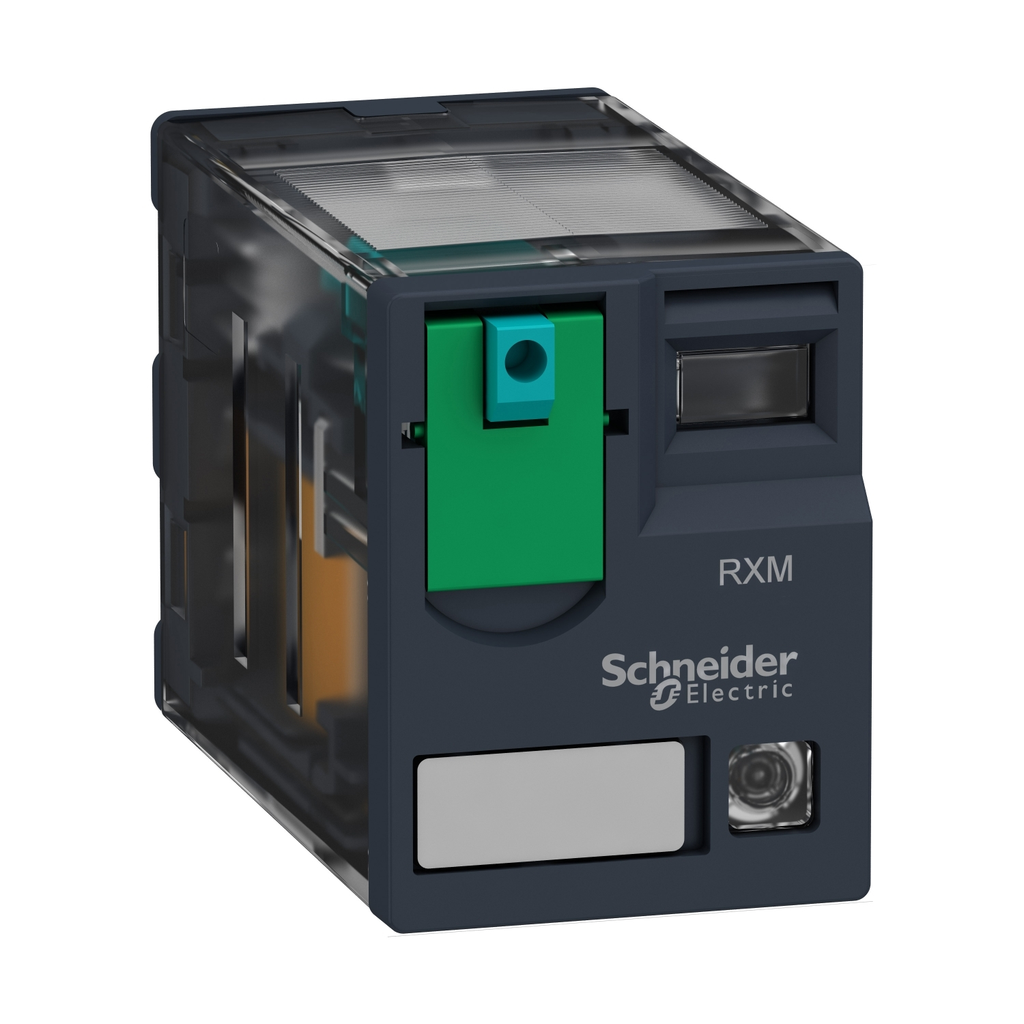

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• Maximum Switching Voltage : 250 V IEC, 250 V IEC
• Minimum Switching Capacity : 170 mW 10 mA, 17 V, 170 mW 10 mA, 17 V, 170 mW 10 mA, 17 V
• Rated Operational Voltage Limits : 19.2...26.4 V DC, 19.2...26.4 V DC
• IE Rated Operational Current : 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 12 A 28 V DC) UL, 12 A 28 V DC) UL, 12 A 28 V DC) UL, 12 A 28 V DC) UL, 12 A 277 V AC) UL, 12 A 277 V AC) UL, 12 A 277 V AC) UL, 12 A 277 V AC) UL
• UC Control Circuit Voltage : 24 V DC, 24 V DC
• UI Rated Insulation Voltage : 250 V IEC, 250 V IEC, 300 V CSA, 300 V CSA, 300 V UL, 300 V UL
• UIMP Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs, 4 kV 1.2/50 µs
• Maximum Switching Capacity : 3000 VA/336 W
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Average Resistance : 650 Ohm 20 °C +/- 10 %, 650 Ohm 20 °C +/- 10 %
• Dielectric Strength : 1300 V AC between contacts with micro disconnection, 1300 V AC between contacts with micro disconnection, 1300 V AC between contacts with micro disconnection, 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between coil and contact with basic insulation, 2000 V AC between coil and contact with basic insulation, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation, 2000 V AC between poles with basic insulation, 2000 V AC between poles with basic insulation, 2000 V AC between poles with basic insulation
• Electrical Durability : 100000 cycles resistive, 100000 cycles resistive
• Load Current : 12 A 250 V AC, 12 A 250 V AC, 12 A 250 V AC, 12 A 28 V DC, 12 A 28 V DC, 12 A 28 V DC
• Operating Rate : <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Shock Resistance : 10 gnin operation, 10 gnin operation, 30 gnnot operating, 30 gnnot operating
• Test Levels : level A group mounting, level A group mounting
• Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• IE Rated Operational Current : 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 28 V DC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 12 A 250 V AC) NO IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 28 V DC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 6 A 250 V AC) NC IEC, 12 A 28 V DC) UL, 12 A 28 V DC) UL, 12 A 28 V DC) UL, 12 A 28 V DC) UL, 12 A 277 V AC) UL, 12 A 277 V AC) UL, 12 A 277 V AC) UL, 12 A 277 V AC) UL
• Carbon Footprint Of The Distribution Phase A4 : 0.0047738385, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0048399687, 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0002262618
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.2927376966
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 16 kg CO2 eq., 15.6224185318
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-02
• HTML Description : Miniature Plug-in Relay, 250V, 12A, Zelio RXM 2 C/Owith LED
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2106019EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Average Coil Consumption : 0.9 W
• Compatibility Code : RXM
• Drop Out Voltage Threshold : >= 0.1 Uc
• Operating Time : 20 ms
• Package Weight Lbs : 37.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Returnability : Yes
• Series Name : RXM series
• Shape Of Pin : flat (faston type)
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 16 kg CO2 eq.
• Utilisation Coefficient : 20 %
• ITHE Conventional Enclosed Thermal Current : 12 A
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2106019EN
• Pep Verification Date : 2021-12-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Ats Control Circuit Type : DC
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP40 conforming to IEC 60529, IP40 conforming to IEC 60529
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 15.9249962974
• Ambient Air Temperature For Operation : -40-55 °C
• Circularity Profile : ENVEOLI2106019EN
• Environmental Disclosure : ENVPEP2106019EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP2106019EN
• Pep Verification Date : 2021-12-01
• PCR Version : PCR-ed3-EN-2015 04 02
• PSR Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
