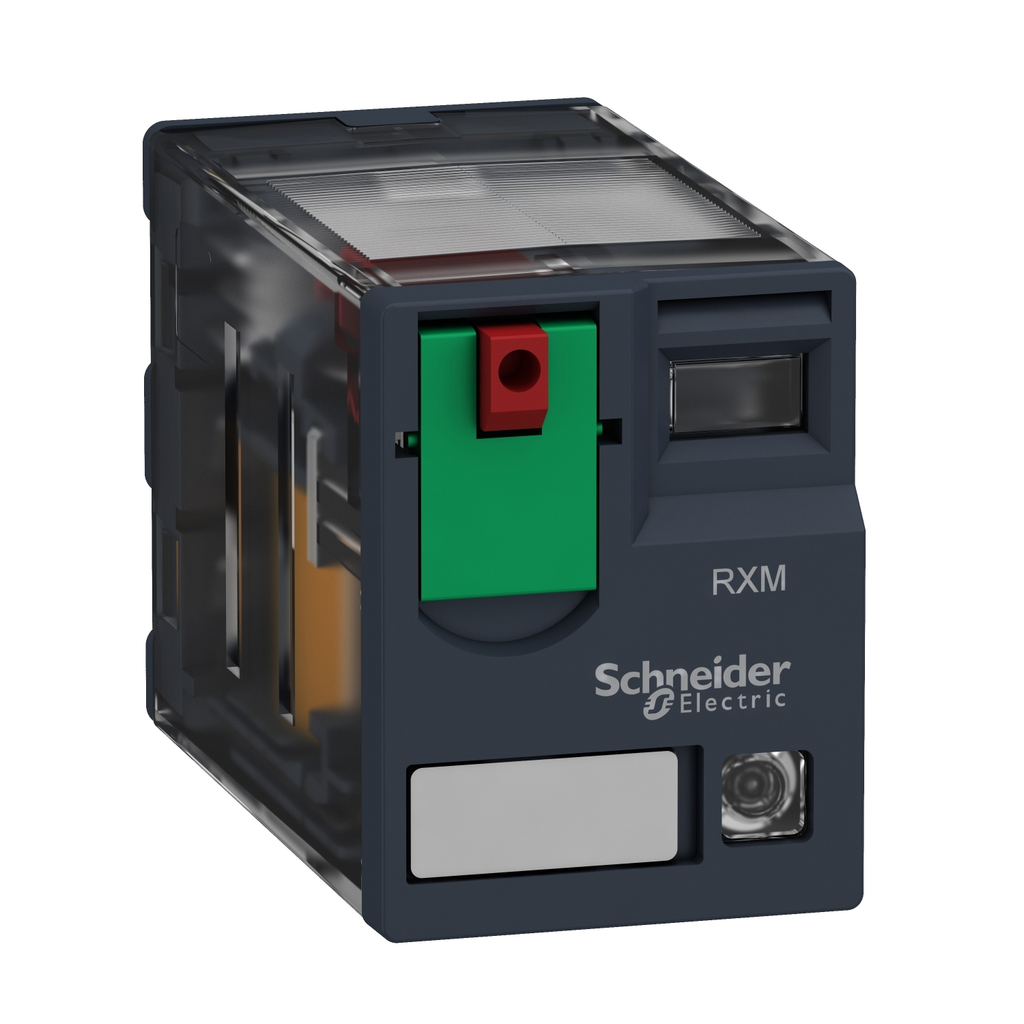

miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, with LED, lockable test but to n, 120V AC

PLUG-IN RELAY 250V 12A RXM +OP

SQDRXM2AB2F7 RXM2AB2F7 3389119403504
10.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-miniature plug in relay, Harmony Electromechanical Relays, 12A, 2CO, with LED, lockable test but to n, 120V AC-1
  • Country of Origin: China
  • Warranty Length: 18 mth
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable tes
QTY
  • Product Description
  • Features
  • Specifications
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 120 V AC 50/60 Hz. It also offers one-step loackable tes
  • IE Rated Operational Current
    • 12 A 28 V DC) NO IEC
    • 12 A 250 V AC) NO IEC
    • 6 A 28 V DC) NC IEC
  • Test Levels
    • level A group mounting
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=RXM2AB2B7_NEW_2024
    • https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001894_3D-CAD
  • IP Degree Of Protection
    • IP40 conforming to IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.0002262618
  • Load Current
    • 12 A 250 V AC
    • 12 A 28 V DC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.0048399687
    • 0 kg CO2 eq.
  • Maximum Switching Voltage
    • 250 V IEC
  • UC Control Circuit Voltage
    • 120 V AC 50/60 Hz
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.3 kg CO2 eq.
    • 0.2927376966
  • Average Consumption
    • 1.2 VA 60 Hz
  • UI Rated Insulation Voltage
    • 250 V IEC
    • 300 V CSA
    • 300 V UL
  • Accessories
    • RXZE2M114
    • RXZE2M114M
    • RXZE2S108M
    • RXZE14P
  • Electrical Durability
    • 100000 cycles resistive
  • Vibration Resistance
    • 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation
    • 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • 5 gn +/- 1 mm 10-150 Hz
  • Market Segmentation
    • Commercial
    • Industrial
  • Rated Operational Voltage Limits
    • 96...132 V AC
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 23 kg CO2 eq.
    • 22.8090282589
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1300 V AC between contacts with micro disconnection
    • 2000 V AC between coil and contact with basic
  • Average Coil Consumption In VA
    • 1.2-1.2 60 Hz
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0047738385
    • 0 kg CO2 eq.
  • Average Resistance
    • 4430 Ohm 20 °C +/- 15 %
  • Minimum Switching Capacity
    • 170 mW 10 mA, 17 V
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 1200 cycles/hour under load
    • <= 18000 cycles/hour no-load
  • Shock Resistance
    • 10 gnin operation
    • 30 gnnot operating
  • UIMP Rated Impulse Withstand Voltage
    • 4 kV 1.2/50 µs
  • Physical Attributes
    • Cad Overall Depth : 78.45 mm
    • Cad Overall Height : 79 mm
  • Complementary Attributes
    • Maximum Switching Capacity : 3000 VA/336 W
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 10/15/2025
    • HTML Description : Miniature Plug-in relay - Zelio RXM 2 C/O 120 V AC 12 A with LED
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.292737697
    • Distribution Carbon Footprint : 0.004773839
    • Installation Carbon Footprint : 0.000226262
    • Use Carbon Footprint : 22.80902826
    • End Of Life Carbon Footprint : 0.004839969
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2106019EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RXM
    • Drop Out Voltage Threshold : >= 0.15 Uc
    • Operating Time : 20 ms
    • Package Weight Lbs : 37.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : plug-in relay
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Returnability : Yes
    • Series Name : RXM series
    • Shape Of Pin : flat (faston type)
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 23 kg CO2 eq.
    • Utilisation Coefficient : 20%
    • ITHE Conventional Enclosed Thermal Current : 12:00 AM
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 23.11160602
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2106019EN
    • Pep Verification Date : 12/1/2021
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 37
    • Functional Unit Description : RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 32.942345
    • Energy Model Manufacturing A1 A3 : Energy model used: China
    • Energy Model Installation A5 : Electricity mix; AC; 120V; US
    • Energy Model Use B6 : Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 : Electricity mix; AC; 120V; US
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000423895
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00042367
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 2E-10
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 2.242E-07
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 1E-10
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 280.8949386
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 3.084288447
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.06706806
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.00293329
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 277.7025716
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.038077186
    • Exported Energy Mj By Energy Vector Total Life Cycle : 1.32168E-05
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 1.2424E-06
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 1.19744E-05
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 3.573924151
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.916916201
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 1.11E-08
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.609838984
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.047168956
    • Materials For Energy Recovery Kg Total Life Cycle : 0.000594444
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0.000594444
    • Materials For Recycling Kg Total Life Cycle : 0.025377544
    • Materials For Recycling Kg Manufacturing A1 A3 : 0.003596502
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.004159655
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.017621387
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.04880113
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.008484681
    • Net Use Of Fresh Water M3 Distribution A4 : 4.272E-07
    • Net Use Of Fresh Water M3 Installation A5 : 2.47E-08
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.040311664
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 4.3326E-06
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 3.601494501
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.113649394
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00016961
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 3.07119E-05
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 3.487499481
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.000145305
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 4.377E-07
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 2.38E-08
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 4.137E-07
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 2E-10
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.000443884
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 8.46922E-05
    • Radioactive Waste Disposed Of Kg Distribution A4 : 1.208E-07
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.000000006
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.000358836
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 2.289E-07
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 292.8800099
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 4.140734786
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.067408262
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0029503
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 288.6215729
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.047343605
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 311.5689353
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 4.389428112
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.067498316
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.002954939
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 307.0616576
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.047396363
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 18.69025002
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.248675134
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 8.99535E-05
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.5893E-06
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 18.44142772
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 5.26249E-05
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.366499737
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.366499737
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 292.5135192
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 3.774244145
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.067408262
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0029503
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 288.6215729
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.047343605
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.083056658
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.083056658
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 18.60719155
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.165616657
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 8.99535E-05
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 4.5893E-06
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 18.44142772
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 5.26249E-05
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.00192469
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.00192469
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Air Pollution M3 Total Life Cycle : 2017.694489
    • Air Pollution M3 Manufacturing A1 A3 : 80.19313695
    • Air Pollution M3 Distribution A4 : 0.203075293
    • Air Pollution M3 Installation A5 : 0.009023729
    • Air Pollution M3 Operational Energy Use B6 : 1936.947568
    • Air Pollution M3 End Of Life C1 C4 : 0.341684982
    • Water Pollution M3 Total Life Cycle : 1179.005049
    • Water Pollution M3 Manufacturing A1 A3 : 53.31169885
    • Water Pollution M3 Distribution A4 : 0.785048604
    • Water Pollution M3 Installation A5 : 0.034314039
    • Water Pollution M3 Operational Energy Use B6 : 1124.469111
    • Water Pollution M3 End Of Life C1 C4 : 0.404877101
    • Acidification Of Soil And Water Kg Equivalent So2 Total Life Cycle : 0.023055244
    • Photochemical Ozone Formation Kg Equivalent C2h4 Total Life Cycle : 0.003592973
    • Water Eutrophication Kg Equivalent P04 3 Total Life Cycle : 0.005946919
    • Acidification Of Soil And Water Kg Equivalent So2 Manufacturing A1 A3 : 0.001184795
    • Acidification Of Soil And Water Kg Equivalent So2 Distribution A4 : 2.17966E-05
    • Acidification Of Soil And Water Kg Equivalent So2 Installation A5 : 9.427E-07
    • Acidification Of Soil And Water Kg Equivalent So2 Operational Energy Use B6 : 0.021838003
    • Acidification Of Soil And Water Kg Equivalent So2 End Of Life C1 C4 : 9.7067E-06
    • Global Warming Kg Equivalent Co2 Total Life Cycle : 23.11160602
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 : 0.292737697
    • Global Warming Kg Equivalent Co2 Distribution A4 : 0.004773839
    • Global Warming Kg Equivalent Co2 Installation A5 : 0.000226262
    • Global Warming Kg Equivalent Co2 Operational Energy Use B6 : 22.80902826
    • Global Warming Kg Equivalent Co2 End Of Life C1 C4 : 0.004839969
    • Photochemical Ozone Formation Kg Equivalent C2h4 Manufacturing A1 A3 : 9.23549E-05
    • Photochemical Ozone Formation Kg Equivalent C2h4 Distribution A4 : 1.5554E-06
    • Photochemical Ozone Formation Kg Equivalent C2h4 Installation A5 : 7.05E-08
    • Photochemical Ozone Formation Kg Equivalent C2h4 Operational Energy Use B6 : 0.003497975
    • Photochemical Ozone Formation Kg Equivalent C2h4 End Of Life C1 C4 : 1.0165E-06
    • Water Eutrophication Kg Equivalent P04 3 Manufacturing A1 A3 : 0.000183782
    • Water Eutrophication Kg Equivalent P04 3 Distribution A4 : 5.0203E-06
    • Water Eutrophication Kg Equivalent P04 3 Installation A5 : 2.291E-07
    • Water Eutrophication Kg Equivalent P04 3 Operational Energy Use B6 : 0.00575524
    • Water Eutrophication Kg Equivalent P04 3 End Of Life C1 C4 : 2.6471E-06
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=649602&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 23.11160602
    • Ambient Air Temperature For Operation : -40-55 °C
    • Circularity Profile : ENVEOLI2106019EN
    • Environmental Disclosure : ENVPEP2106019EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2106019EN
    • Pep Verification Date : 12/1/2021
    • PCR Version : PCR-ed3-EN-2015 04 02
    • PSR Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
  • Overview Attributes
    • Device Presentation : complete product
