Harmony, Miniature plug-in relay, 12 A, 2 CO, with lockable test button, 12 V DC

PLUG-IN RELAY 250V 12A RXM +OP

SQDRXM2AB1JD RXM2AB1JD 785901438175
8.18 / EACH
  • Certifications: CE, CSA, GOST, Lloyd's, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.037 kg
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth

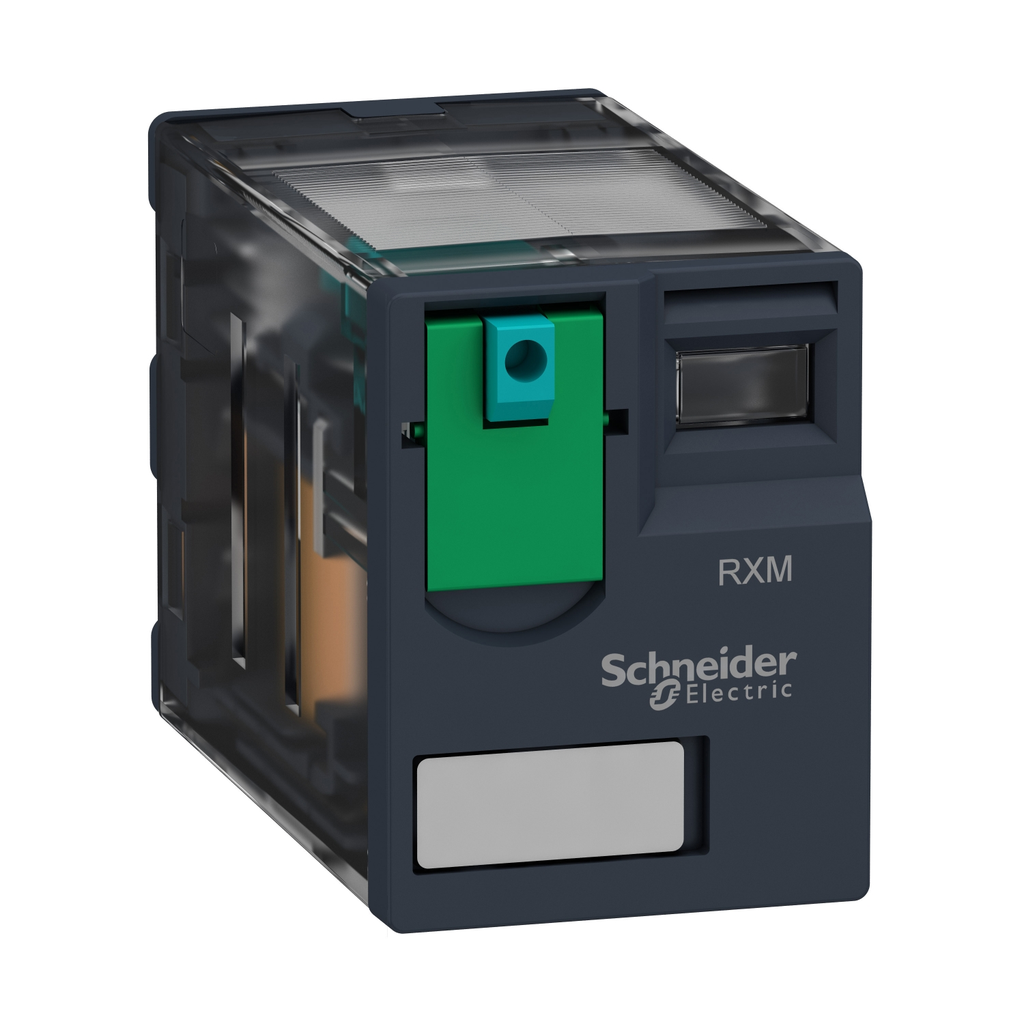

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 12 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Product Description
  • Specifications
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 12 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Contractual warranty
    • Warranty : 18 months
  • Environment
    • Shock Resistance : 10 gnin operation || 30 gnnot operating
    • Ip Degree Of Protection : IP40 conforming to EN/IEC 60529
    • Standards : CSA C22.2 No 14 || UL 508 || EN/IEC 61810-1
    • Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
    • Product Certifications : CSA || UL || GOST || Lloyd's || CE
    • Pollution Degree : 3
    • Ambient Air Temperature For Operation : -40-55 °C
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Ambient Air Temperature For Storage : -40-85 °C
  • [Ithe] Conventional Enclosed Thermal Current : 12 A -40-55 °C
  • Range Of Product : Harmony Electromechanical Relays
  • [Uc] Control Circuit Voltage : 12 V DC
  • Control Type : lockable test button
  • Contacts Type And Composition : 2 C/O
  • Status Led : without
  • Product Or Component Type : plug-in relay
  • Device Short Name : RXM
  • Utilisation Coefficient : 20 %
  • Series Name : Miniature
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Disclosure : ENVPEP1511008EN
    • Rohs Exemption Information : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Maximum Switching Capacity : 3000 VA/336 W
    • Reset Time : 20 ms
    • Shape Of Pin : flat
    • Safety Reliability Data : B10d = 100000
    • Rated Operational Voltage Limits : 9.6...13.2 V DC
    • Electrical Durability : 100000 cycles resistive
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Test Levels : level A
    • Mechanical Durability : 10000000 cycles
    • Operating Time : 20 ms
    • Drop-Out Voltage Threshold : >= 0.1 Uc
    • Maximum Switching Voltage : 250 V IEC
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Device Presentation : complete product
    • Load Current : 12 A 250 V AC || 12 A 28 V DC
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
    • Contacts Material : AgNi
    • Net Weight : 0.037 kg
    • [Ie] Rated Operational Current : 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
    • Operating Position : any position
    • Protection Category : RT I
    • Average Resistance : 160 Ohm 20 °C +/- 10 %
    • Average Coil Consumption : 0.9 W
