Harmony, Miniature plug-in relay, 10 A, 3 CO, with LED, with lockable test button, 24 V AC

PLUG-IN RELAY 250V 10A RXM +OP

SQDRXM3AB2B7 RXM3AB2B7 785901438298
10.17 / EACH
  • Certifications: CE, CSA, GOST, Lloyd's, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.037 kg
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Operating Temperature: -40-55 °C
  • Power Consumption: 1.2 VA, 60 Hz
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth

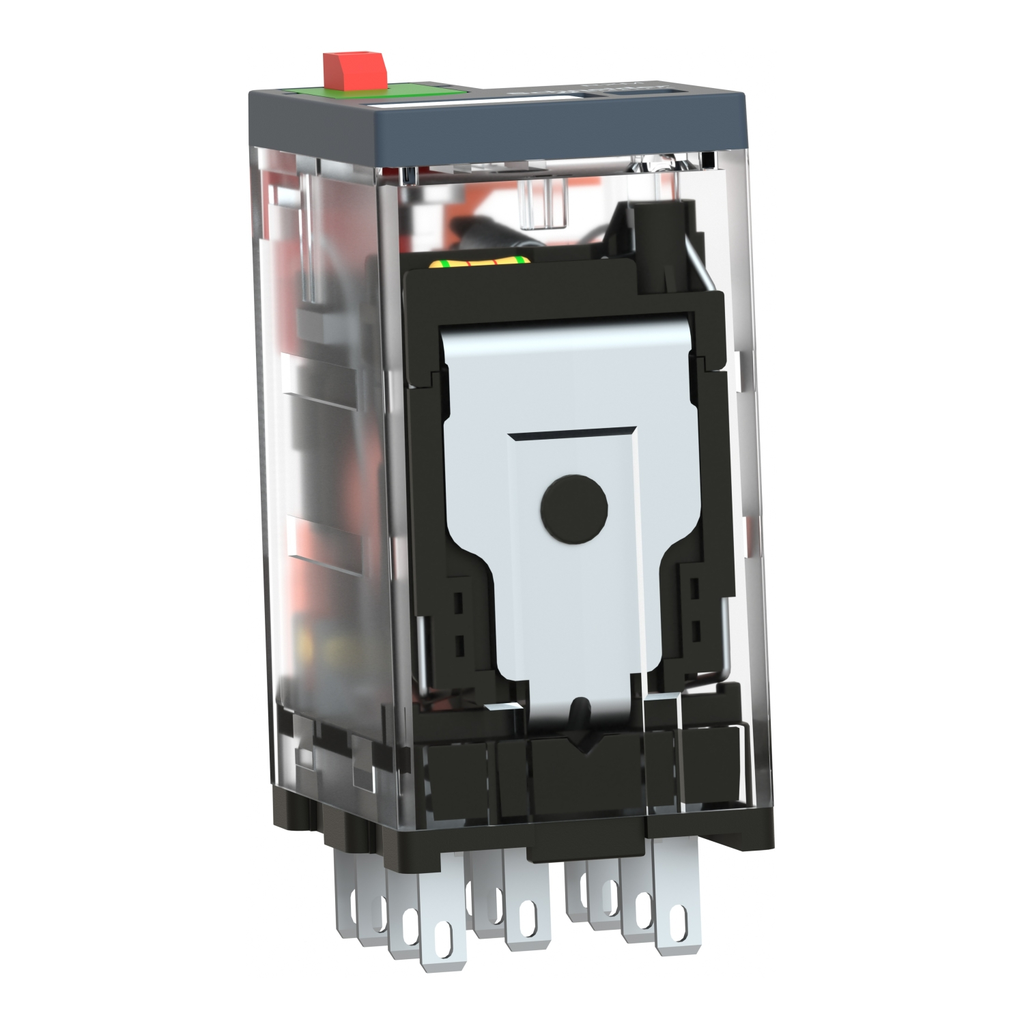

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Product Description
  • Specifications
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Environment
    • Pollution Degree : 2
    • Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
    • Ip Degree Of Protection : IP40 conforming to EN/IEC 60529
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Product Certifications : GOST || UL || CE || CSA || Lloyd's
    • Shock Resistance : 10 gnin operation || 30 gnnot operating
    • Ambient Air Temperature For Storage : -40-85 °C
    • Standards : CSA C22.2 No 14 || UL 508 || EN/IEC 61810-1
    • Ambient Air Temperature For Operation : -40-55 °C
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Environmental Disclosure : ENVPEP1511008EN
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
    • Mercury Free : Yes
  • Complementary
    • Average Coil Consumption In Va : 1.2-1.2 60 Hz
    • Cad Overall Height : 79 mm
    • Test Levels : level A
    • Maximum Switching Capacity : 2500 VA/280 W
    • Mechanical Durability : 10000000 cycles
    • Load Current : 10 A 250 V AC || 10 A 28 V DC
    • Safety Reliability Data : B10d = 100000
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • [Ie] Rated Operational Current : 10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
    • Cad Overall Depth : 78.45 mm
    • Electrical Durability : 100000 cycles resistive
    • Average Consumption : 1.2 VA 60 Hz
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
    • Reset Time : 20 ms
    • Device Presentation : complete product
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Operating Position : any position
    • Contacts Material : AgNi
    • Net Weight : 0.037 kg
    • Protection Category : RT I
    • Maximum Switching Voltage : 250 V IEC
    • Drop-Out Voltage Threshold : >= 0.15 Uc
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Rated Operational Voltage Limits : 19.2...26.4 V AC
    • Operating Time : 20 ms
    • Shape Of Pin : flat
    • Average Resistance : 180 Ohm 20 °C +/- 15 %
  • Range Of Product : Harmony Electromechanical Relays
  • Contacts Type And Composition : 3 C/O
  • Product Or Component Type : plug-in relay
  • Control Type : lockable test button
  • Utilisation Coefficient : 20 %
  • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
  • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
  • Series Name : Miniature
  • Device Short Name : RXM
  • Status Led : with
