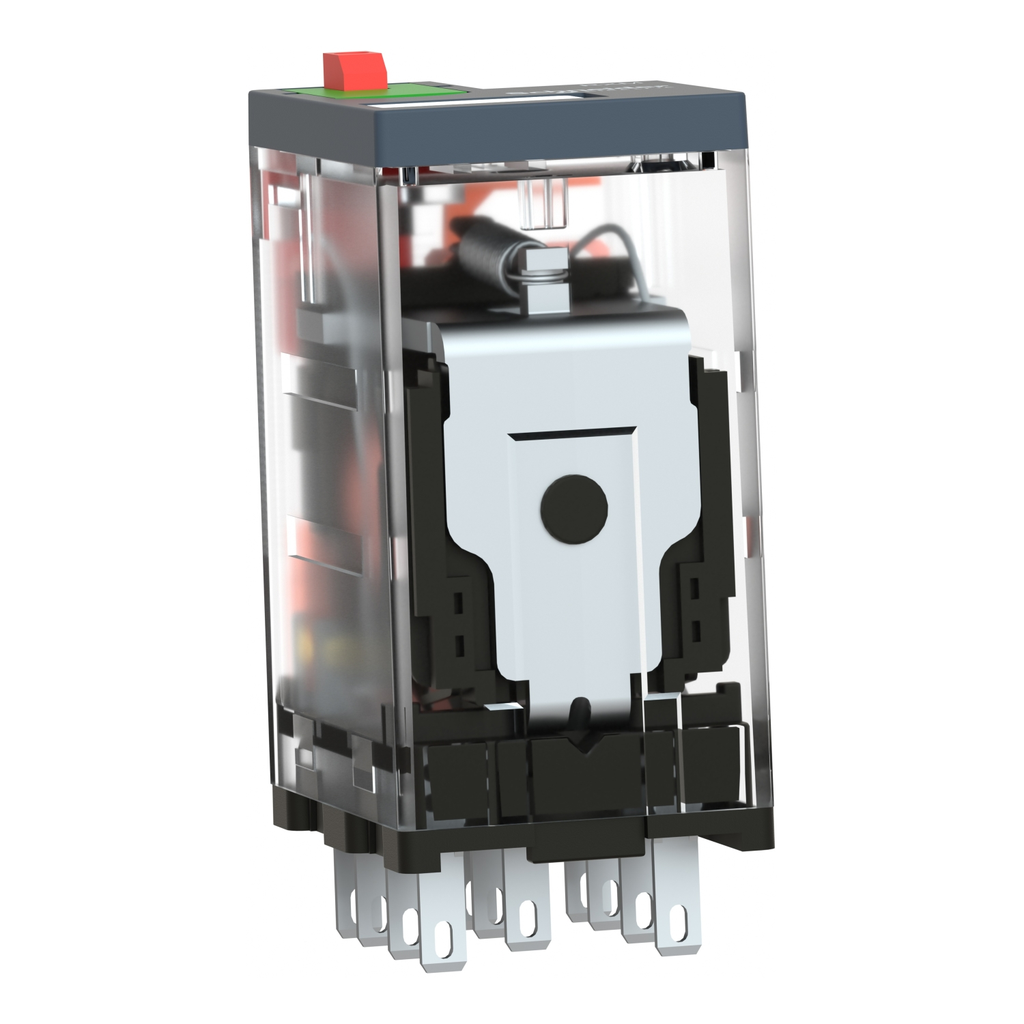

Harmony, Miniature plug-in relay, 10 A, 3 CO, with lockable test button, 24 V AC

PLUG-IN RELAY 250V 10A RXM +OP

SQDRXM3AB1B7 RXM3AB1B7 785901758082
8.80 / EACH
  • Certifications: CE, CSA, GOST, Lloyd's, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.037 kg
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Operating Temperature: -40-55 °C
  • Power Consumption: 1.2 VA, 60 Hz
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Product Description
  • Specifications
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V AC 50/60 Hz. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the red pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
  • Contractual warranty
    • Warranty : 18 months
  • Environment
    • Ambient Air Temperature For Operation : -40-55 °C
    • Product Certifications : GOST || CSA || Lloyd's || CE || UL
    • Ip Degree Of Protection : IP40 conforming to EN/IEC 60529
    • Dielectric Strength : 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
    • Shock Resistance : 10 gnin operation || 30 gnnot operating
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Ambient Air Temperature For Storage : -40-85 °C
    • Standards : EN/IEC 61810-1 || UL 508 || CSA C22.2 No 14
    • Pollution Degree : 2
  • Range Of Product : Harmony Electromechanical Relays
  • Product Or Component Type : plug-in relay
  • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
  • Status Led : without
  • Utilisation Coefficient : 20 %
  • Series Name : Miniature
  • Contacts Type And Composition : 3 C/O
  • [Ithe] Conventional Enclosed Thermal Current : 10 A -40-55 °C
  • Control Type : lockable test button
  • Device Short Name : RXM
  • Offer Sustainability
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1511008EN
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
  • Complementary
    • Protection Category : RT I
    • Electrical Durability : 100000 cycles resistive
    • Maximum Switching Capacity : 2500 VA/280 W
    • Average Consumption : 1.2 VA 60 Hz
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Mechanical Durability : 10000000 cycles
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
    • Cad Overall Depth : 78.45 mm
    • Average Resistance : 180 Ohm 20 °C +/- 15 %
    • Net Weight : 0.037 kg
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Device Presentation : complete product
    • Maximum Switching Voltage : 250 V IEC
    • Average Coil Consumption In Va : 1.2-1.2 60 Hz
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Cad Overall Height : 79 mm
    • Contacts Material : AgNi
    • Operating Time : 20 ms
    • Drop-Out Voltage Threshold : >= 0.15 Uc
    • Reset Time : 20 ms
    • Operating Position : any position
    • [Ie] Rated Operational Current : 10 A 28 V DC) NO IEC || 10 A 250 V AC) NO IEC || 5 A 28 V DC) NC IEC || 5 A 250 V AC) NC IEC || 10 A 30 V DC) UL || 10 A 277 V AC) UL
    • Load Current : 10 A 250 V AC || 10 A 28 V DC
    • Rated Operational Voltage Limits : 19.2...26.4 V AC
    • Shape Of Pin : flat
    • Test Levels : level A
    • Safety Reliability Data : B10d = 100000
