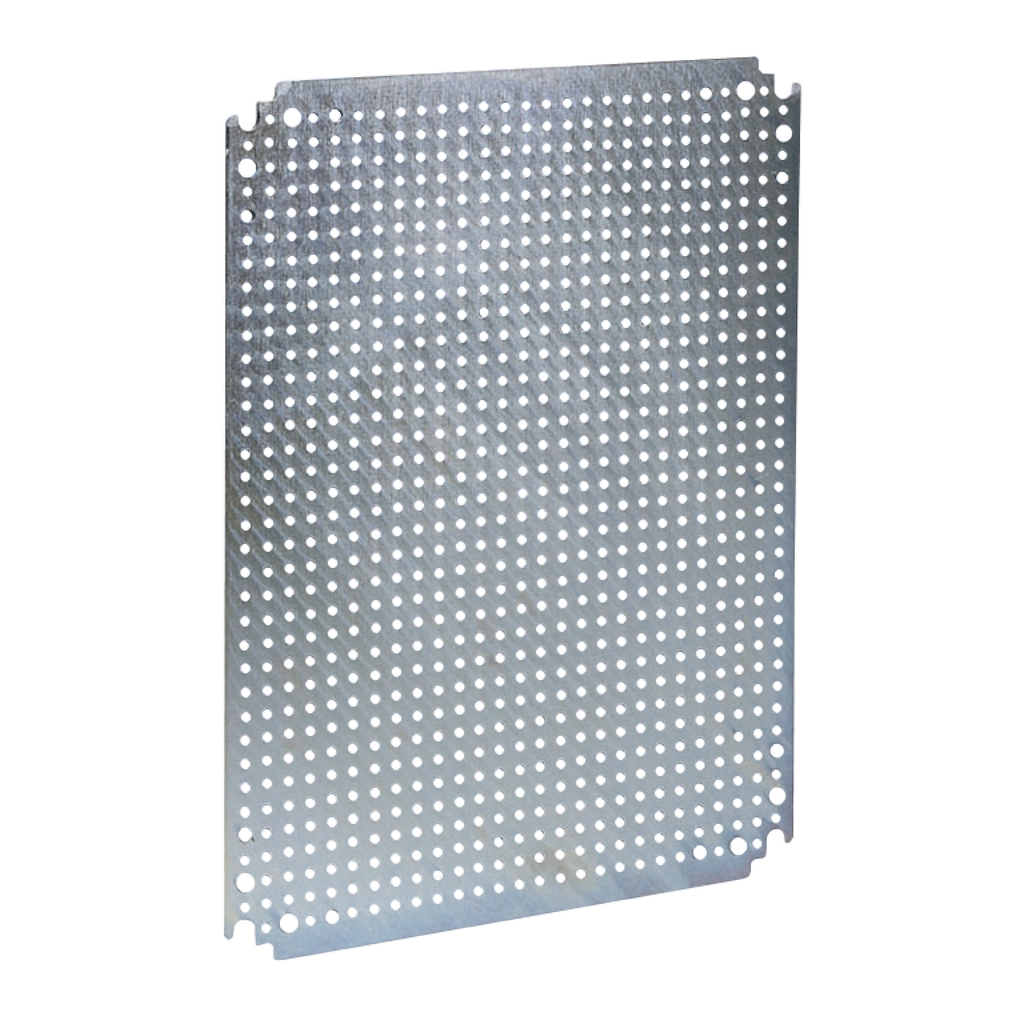

Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch

Perforated chassis 1200X800

SQDNSYMF128 NSYMF128 3606480183027
262.07 / EA
http://schema.org/OutOfStock
Mayer-DDS-Microperforated mounting plate H1200xW800 w/holes diam 3,6mm on 12,5mm pitch-2
  • Country of Origin: Spain
  • Depth: 4.92 in
  • Height: 45.87 in
  • Material: Galvanized Steel
  • Thickness: 2.5 mm
  • Warranty Length: 18 mth
  • Width: 30.12 in
QTY
  • Features
  • Specifications
  • Range Compatibility
    • PanelSeT S3D
    • PanelSeT CRN
    • PanelSeT PLM
  • Fixing Mode
    • screwed on backstuds M8
    • by fixing element
  • Mounting Location
    • step slide
    • direct fixing on backstuds
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Enclosure Nominal Dimensions
    • - H: 1200 mm W: 800 mm
    • - H: 800 mm W: 1200 mm
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • ETIM 10 : EC000213
    • Html Descr : Microperforated Mounting PlateH1200xW800Holes diam 3.6mm on 12.5mm pitchGalvanized steelBy fixing element; Screwed on backstuds - screw type M8
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1916
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : multi-purpose
    • Material : galvanised steel
    • Mounting Plate Description : microperforated
    • Package Weight Lbs : 16.000 kg
    • Permanent Permissible Load : 180 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mounting plate
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : Yes
    • Sustainable Packaging : No
    • Thickness : 2.5 mm
    • Accessory Separate Part Category : mounting accessory
  • General Attributes
    • Product Or Component Type : mounting plate
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=10178733&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2202003EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
    • Height : 45.87 in
    • Width : 30.12 in
    • Depth : 4.92 in
