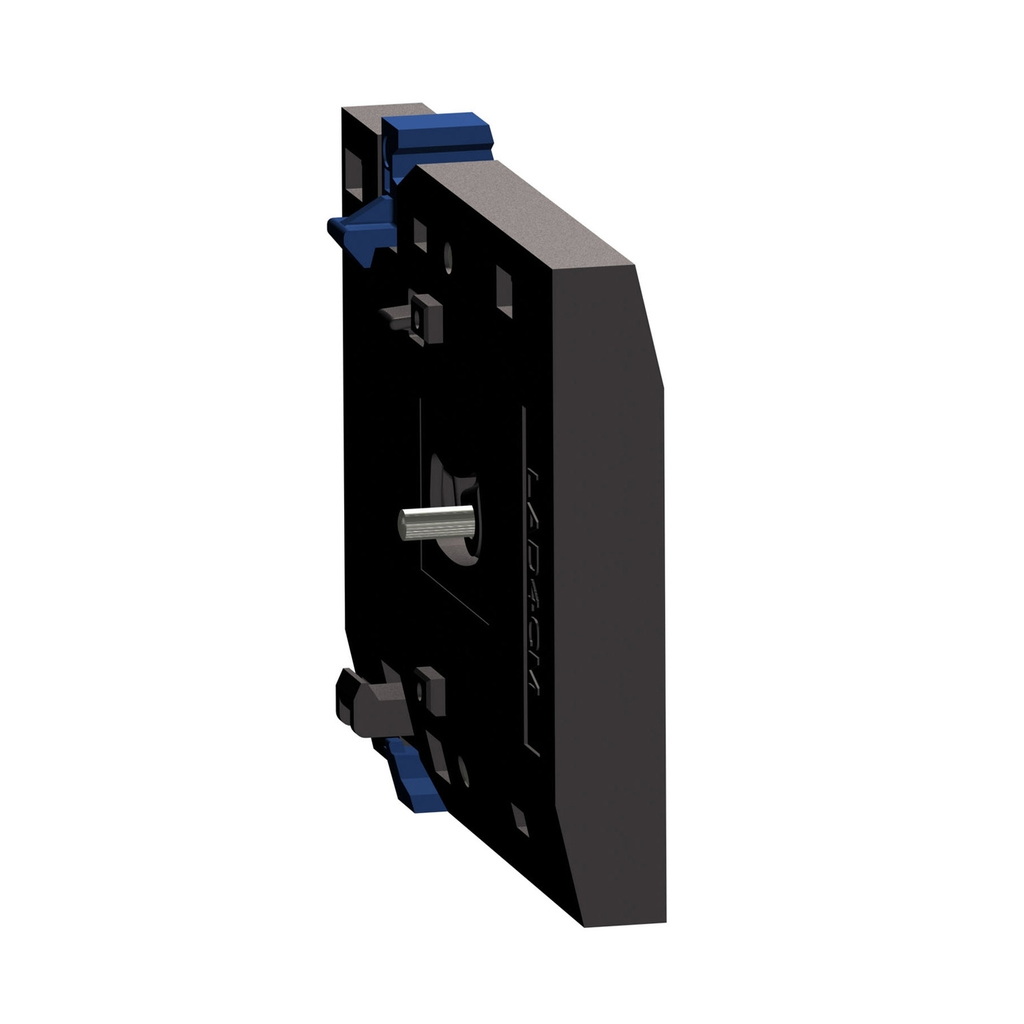

TeSys Deca mechanical interlock, for contactors LC1D40A-D80A and LC1DT60A-DT80A. To be used for reversing and changeover contactor assemblies. Without electrical interlocking.

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPD0004338_3D-CAD&p_File_name=MCADPD0004338_2D-top.dxf
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Circuit Type : reversing, changeover
• Poles Description : 4P, 3P
• Carbon Footprint Of The Distribution Phase A4 : 0.004738662316476345, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.11992495921696572
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.4 kg CO2 eq., 0.36048939641109295
• Medium Desc : Mechanical interlock, for TeSys Deca contactors LC1D40A-D80A LC1DT60A-DT80A
• Local Data Status : Publishable
• Local Publishable Date : 2025-02-26
• Global Commercial Status : Commercialised
• Html Descr : TeSys D Mechanical InterlockPoles Description: 3-Poles, 4-PolesElectrical Circuit Type: Reversing, ChangeoverProduct Compatibility: LC1D40A-D65A
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : LAD4
• Device Short Name : LAD4
• Interlocking Type : mechanical
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : mechanical interlock
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : Yes
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Accessory Separate Part Category : interlocking accessory
• Pep Code : ENVPEP1112053EN
• Database Version : 2022-01
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : It provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; FR
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Product Compatibility : LC1D40A, LC1D50A, LC1D65A, LC1D80A, LC1DT60A, LC1DT80A
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.485153017944535
• Environmental Disclosure : ENVPEP1112053EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1112053EN
• Pep Verification Date : 2025-08-05
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : mechanical interlock
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC002498
• ETIM 9 : EC002498
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United Kingdom, United States
