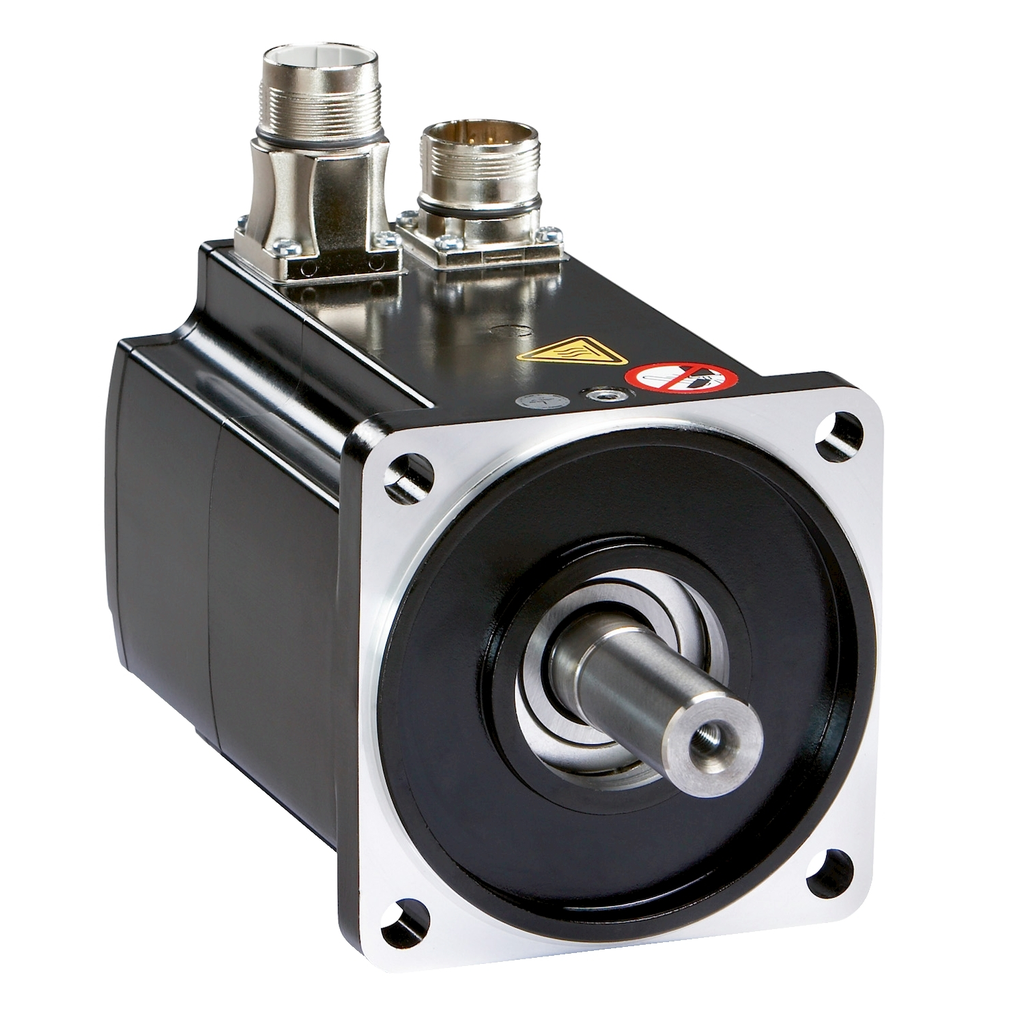

servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP65, IP67, 128bit encoder, straight

Name: servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP65, IP67, 128bit encoder, straight
Brand: Mayer Electric Supply
SKU: SQDBMH2053P31A1A
Price: 9629.98 USD
Availability: OutOfStock

motor 205mm IP65 key enc singl

SQDBMH2053P31A1A BMH2053P31A1A 3606485201955

9629.98 / EA

http://schema.org/OutOfStock

Mayer-DDS-servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP65, IP67, 128bit encoder, straight-1

Shaft Diameter: 38 mm
Shaft End: Keyed
Shaft Length: 80 mm
Warranty Length: 18 mth

QTY

Features
Specifications

Prop 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Assets

Cad : https://download.schneider-electric.com/files?p_Doc_Ref=BMH2053P31A1A_CAD&p_File_name=BMH2053P31A1A_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=BMH2053P31A1A_CAD&p_File_name=BMH2053P31A1A_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMH2053P31A1A_CAD&p_File_name=BMH2053P31A1A_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=BMH2053P31A1A_CAD&p_File_name=BMH2053P31A1A_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=BMH2053P31A1A_CAD&p_File_name=BMH2053P31A1A_2D Right Side View.dxf

Physical Attributes

Key Width : 70 mm
Motor Flange Size : 205 mm
Shaft Length : 80 mm

Complementary Attributes

Maximum Radial Force Fr : 4500 N 1000 rpm, 3570 N 2000 rpm, 3120 N 3000 rpm
Minimum Ambient Air Temperature For Operation : -20.0 °C, -20.0 °C
Line Rated Current : 17.9 A
Maximum Ambient Air Temperature For Operation : 60.0 °C
Maximum Axial Force Fa : 0.2 x Fr
Maximum Current Irms : 136.1 A LXM32.D72N4
Maximum Mechanical Speed : 3800 rpm
Maximum Operational Altitude : 3000.0 m
Maximum Permanent Current : 107.4 A
Minimum Operational Altitude : 0.0 m
Maximum In Rated Current : 17.9 A
Us Rated Supply Voltage : 480 V

Important Information Attributes

Coefficient 1 1 : -0.0215000000002362 N.m/rpm, -0.0215000000002362 N.m/rpm
Coefficient 1 3 : -7.877844225E-19 N.m/rpm3, -7.877844225E-19 N.m/rpm3
Coefficient 1 5 : -9.19815108E-26 N.m/rpm5, -9.19815108E-26 N.m/rpm5
Continuous Stall Torque : 84 N.m LXM32.D72N4 24 A, 400 V, three phase, 84 N.m LXM32.D72N4 24 A, 480 V, three phase
Inertia : 0.0 kg.cm² of brake, 190.0 kg.cm² of motor
Minimum Ambient Air Temperature For Operation : -20.0 °C, -20.0 °C
Nominal Speed : 2000 rpm, 1200 rpm LXM32.D72N4 24 A, 400 V, three phase, 1200 rpm LXM32.D72N4 24 A, 480 V, three phase
Nominal Torque : 45.0 N.m full speed, 66.5 N.m half speed, 52.2 N.m LXM32.D72N4 24 A, 400 V, three phase, 52.2 N.m LXM32.D72N4 24 A, 480 V, three phase
Peak Stall Torque : 232 N.m LXM32.D72N4 24 A, 400 V, three phase, 232 N.m LXM32.D72N4 24 A, 480 V, three phase
Carbon Footprint Of The Distribution Phase A4 : 9.1602211302, 9 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4 : 7 kg CO2 eq., 6.6903980344
Carbon Footprint Of The Installation Phase A5 : 0.6298589681, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3 : 311 kg CO2 eq., 310.82997543
Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 6 992 kg CO2 eq., 6991.5300288739
Medium Desc : servo motor BMH, Lexium 32, 84Nm, 3800rpm, keyed shaft, without brake, IP65, IP67, 128bit encoder, straight
Local Data Status : Publishable
Local Publishable Date : 2026-01-12
Global Commercial Status : Commercialised
Return Indicator : N
Stocking Flag : Y
Device Type : Motion - drive & motor
Serviceability : Yes
Traceability : Yes
Field Service Division : IDIBS
Average Life Duration : 15 year(s)
Legacy Weee Scope : Out
Scope Perimeter : At least in Europe
Eoli Availability Display : No need of specific recycling operations
Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
Reach Full Compliance Status Id : CONTAINS_SVHC
Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
Rohs Eur In Scope : No
Rohs Eur Status : Compliant By Exemption
Rohs Eur Full Compliance Status : Compliant By Exemption
China Rohs In Scope : Yes
With Recycled Cardboard : Yes
Without Single Use Plastic : No
Product Contributes To Saved And Avoided Emissions : No
Product Kit Identifier : N
Centring Collar Diameter : 180 mm
Circle Diameter Of The Mounting Holes : 215 mm
Coefficient 1 2 : 7.126929575716E-16 N.m/rpm²
Coefficient 1 4 : 3.957464E-22 N.m/rpm4
Coefficient 1 6 : 8.0361E-30 N.m/rpm6
Coefficient 2 1 : 0 N.m/rpm
Continuous Power : 9.6 W
Continuous Stall Current : 25.2 A
Derating Altitude Scale : 80.0 m
Derating Altitude Start : 1000.0 m
Derating Temperature Scale : 80.0 °C
Derating Temperature Start : 40.0 °C
Device Short Name : BMH
Electrical Connection : straight connectors
Feedback Type : single turn SinCos Hiperface
Holding Brake : without
Maximum Operational Altitude : 3000.0 m
Minimum Operational Altitude : 0.0 m
Motor Figures : 400.0 V
Mounting Holes Diameter : 14 mm
Mounting Support : international standard flange
Peak Nominal Torque : 330.0 N.m
Phase : three phase
Product Availability : Non-Stock - Not normally stocked in distribution facility
Product Or Component Type : servo motor
Returnability : No
Rotor Inertia : 190 kg.cm²
Second Shaft : without second shaft end
Shaft Diameter : 38 mm
Shaft End : keyed
Sizing Reference : BMH2053P
Software Version : EIME v5.8.1
Speed Feedback Resolution : 131072 points/turn
Stator Electrical Time Constant : 21.6 ms 20 °C
Stator Inductance : 2.15 mH 20 °C
Stator Resistance : 0.32 Ohm 20 °C
Sustainable Packaging : No
Temperature Copper Hot : 135 °C
Temperature Magnet Hot : 100 °C
Temperature Magnet Rt : 20 °C
Torque Constant : 2.76 N.m/A 120 °C
Total Lifecycle Carbon Footprint : 7 319 kg CO2 eq.
Type Of Cooling : natural convection
Maximum In Rated Current : 17.9 A
Pep Code : ENVPEP111049EN
Database Version : 2016-11
Pep Verification Date : 2020-08-01
Pcr Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review
Data Source : extrapolated product
Functional Unit Description : Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional Unit Unit : unit
Energy Model Manufacturing A1 A3 2 : Energy model used: Germany
Energy Model Installation A5 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model Use B6 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model End Of Life C1 C4 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Length Total : 489 mm

Environment Attributes Main

Ip Degree Of Protection : IP65 standard, IP67 with IP67 kit
Take Back : Nej
Recycled Metal Content At Cr Level : 0 %
China Rohs Regulation : X
Mercury Free : Yes
Carbon Footprint : 7318.8404824366
Environmental Disclosure : ENVPEP111049EN
Eu Rohs Directive : Compliant By Exemption
Packaging Made With Recycled Cardboard : Yes
Packaging Without Single Use Plastic : No
Product Compatibility : LXM32.D72N4 400...480 V three phase
Reach Regulation : Reference contains Substances of Very High Concern above the threshold
Pep Code : ENVPEP111049EN
Pep Verification Date : 2020-08-01
Pcr Version : PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep : Independent internal review

General Attributes

Phase : three phase
Product Or Component Type : servo motor

ETIM

ETIM 8 : EC001851
ETIM 9 : EC001851

Output Attributes

Nominal Output Power : 6500 W LXM32.D72N4 24 A, 400 V, three phase, 6500 W LXM32.D72N4 24 A, 480 V, three phase
Output Current 3s Peak : 136.1 A

Contractual Warranty Attributes

Warranty Period : 18 months
Warranty : 18 months
