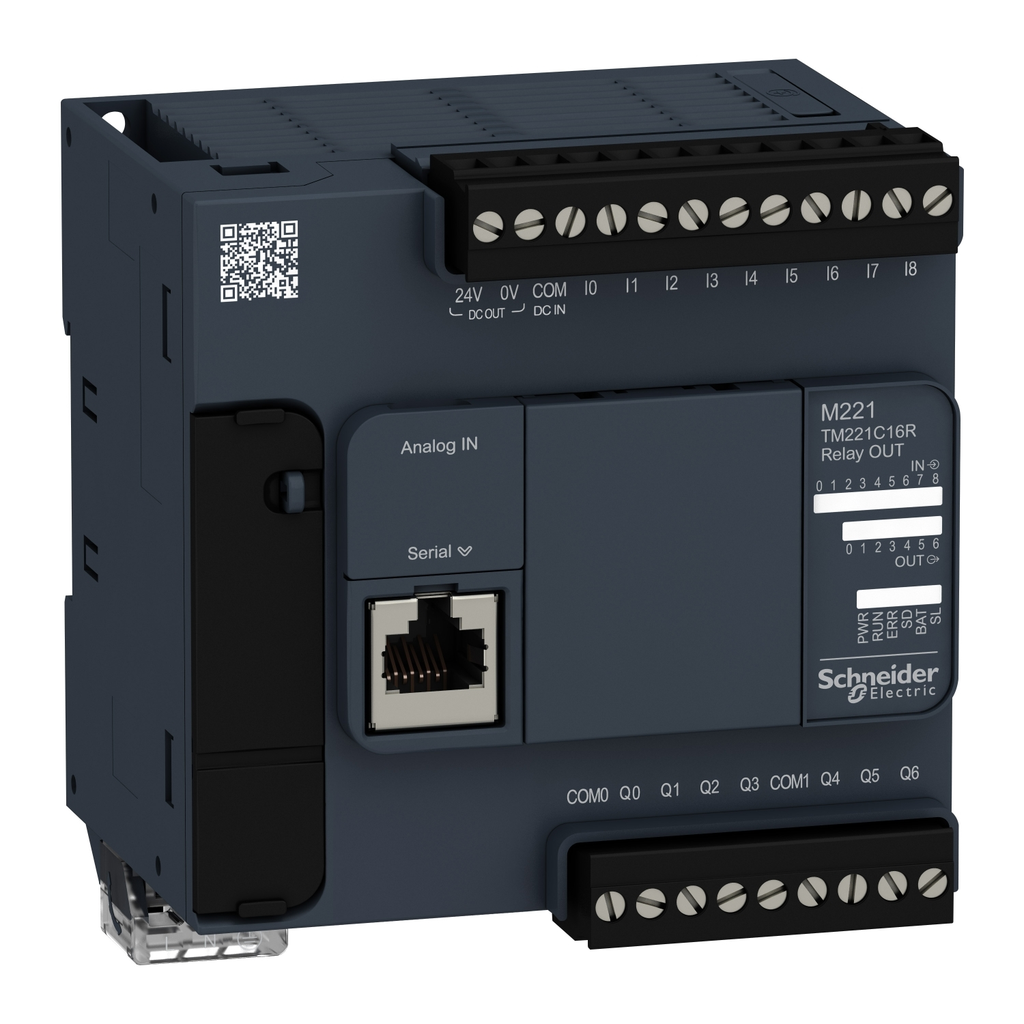

logic controller, Modicon M221, 16 IO, 7 relay outputs, 100…240V AC

M221-16IO RELAY

SQDTM221C16R TM221C16R 3606480648694
474.94 / EA
http://schema.org/OutOfStock
Mayer-DDS-logic controller, Modicon M221, 16 IO, 7 relay outputs, 100…240V AC-1
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete inputs and 7 relay outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, built-in flash memory of 256KB and SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
  • Complementary Attributes
    • Integrated Connection Type : USB port mini B USB 2.0, non isolated serial link serial 1 RJ45 RS485, non isolated serial link serial 2 RJ45 RS232/RS485
    • Maximum Cable Distance Between Devices : shielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital input, unshielded cable <1 m analog input
    • Maximum Current Per Output Common : 6 A COM 1, 7 A COM 0
    • Maximum Number Of I O Expansion Module : 4 (local I/O-Architecture), 11 (remote I/O-Architecture)
    • Maximum Power Consumption In VA : 46 VA 100...240 V with max number of I/O expansion module, 31 VA 100...240 V without I/O expansion module
    • Minimum Load : 1 mA 5 V DC relay output
    • US Rated Supply Voltage : 100...240 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Clock Drift : <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
    • Configurable Filtering Time : 0 ms input, 3 ms input, 12 ms input
    • Electrical Connection : removable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, mini B USB 2.0 connector for a programming terminal
    • Electrical Durability : 100000 cycles AC-12, 120 V, 240 VA, resistive, 100000 cycles AC-12, 240 V, 480 VA, resistive, 300000 cycles AC-12, 120 V, 80 VA, resistive, 300000 cycles AC-12, 240 V, 160 VA, resistive, 100000 cycles AC-15, cos phi = 0.35 , 120 V, 60 VA, inductive, 100000 cycles AC-15, cos phi = 0.35 , 240 V, 120 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 120 V, 18 VA, inductive, 300000 cycles AC-15, cos phi = 0.35 , 240 V, 36 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 120 V, 120 VA, inductive, 100000 cycles AC-14, cos phi = 0.7 , 240 V, 240 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 120 V, 36 VA, inductive, 300000 cycles AC-14, cos phi = 0.7 , 240 V, 72 VA, inductive, 100000 cycles DC-12, 24 V, 48 W, resistive, 300000 cycles DC-12, 24 V, 16 W, resistive, 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms), 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
    • Electromagnetic Emission : conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
    • Insulation : between input and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs, between supply and ground 1500 V AC, between sensor power supply and ground 500 V AC, between input and ground 500 V AC, between output and ground 1500 V AC, between supply and internal logic 2300 V AC, between sensor power supply and internal logic 500 V AC, between output and internal logic 2300 V AC, between Ethernet terminal and internal logic 500 V AC, between supply and sensor power supply 2300 V AC
    • Local Signalling : 1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED per channel (green) for I/O state
    • Memory Capacity : 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
    • Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
    • Resistance To Conducted Disturbances : 10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
    • Resistance To Electromagnetic Fields : 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2...2.7 GHz IEC 61000-4-3
    • Resistance To Electrostatic Discharge : 8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
    • Response Time : 35 µs turn-off, I2...I5 input, 10 ms turn-on output, 10 ms turn-off output, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 5 µs turn-off, I0, I1, I6, I7 fast input, 100 µs turn-off, other terminals input
    • Transmission Rate : 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s USB
    • Vibration Resistance : 3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting, 1 gn 8.4-150 Hz symmetrical rail, 1 gn 8.4-150 Hz panel mounting
    • Voltage State 0 Guaranteed : <= 5 V input, <= 5 V input
    • Voltage State 1 Guaranteed : >= 15 V input, >= 15 V input
    • Carbon Footprint Of The Distribution Phase A4 : 0.6869216485302384, 0.7 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.6535249198975186, 0.7 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.005100009556700557
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 11 kg CO2 eq., 11.102144169944033
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 66 kg CO2 eq., 65.71929521021859
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-12-19
    • Device Type : PLC System - PLC CPU
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1403012EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Dangerous Goods Code : LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Conversion Time : 1 ms per channel + 1 controller cycle time analog input
    • Data Backed Up : 256 kB built-in flash memory backup of application and data
    • Data Storage Equipment : 2 GB SD card optional)
    • Exact Time For Event Task : 60 µs response time
    • Execution Time For 1 Kinstruction : 0.3 ms event and periodic task
    • Execution Time Per Instruction : 0.2 µs Boolean
    • Mechanical Durability : 20000000 cycles relay output
    • Package Weight Lbs : 300.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : logic controller
    • Protection Type : without protection 5 A
    • Range Of Product : Modicon M221
    • Regulation Loop : adjustable PID regulator up to 14 simultaneous loops
    • Reset Time : 1 s
    • Resistance To Magnetic Fields : 30 A/m 50/60 Hz IEC 61000-4-8
    • Returnability : Yes
    • Sensor Power Supply : 24-24 V DC 250 mA supplied by the controller
    • Shock Resistance : 98 m/s² 11 ms
    • Supply : serial)serial link supply 5 V, <200 mA
    • Sustainable Packaging : Yes
    • Switching Frequency : 20 switching operations/minute with maximum load
    • Total Lifecycle Carbon Footprint : 78 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • Relative Humidity : 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 78.16698595814708
    • Circularity Profile : ENVEOLI1403012EN
    • Environmental Disclosure : ENVPEP1403012EN
    • IP Degree Of Protection : IP20 with protective cover in place
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Storage Altitude : 0-3000 m
    • Pep Code : ENVPEP1403012EN
    • Pep Verification Date : 2024-11-01
    • PCR Version : PCR-4-ed4-EN-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : logic controller
    • Range Of Product : Modicon M221
  • Output Attributes
    • Discrete Output Voltage : 5...125 V DC, 5...250 V AC
    • Maximum Current Per Output Common : 6 A COM 1, 7 A COM 0
    • Output Voltage Limits : 125 V DC, 277 V AC
    • Power Supply Output Current : 0.325-0.325 A 5 V expansion bus, 0.12-0.12 A 24 V expansion bus
    • Discrete Output Current : 2 A
    • Discrete Output Number : 7 relay
  • Surge Protection And Filtering Attributes
    • Configurable Filtering Time : 0 ms input, 3 ms input, 12 ms input
    • Surge Withstand : 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5, 1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV power lines (DC) common mode IEC 61000-4-5
  • Input Attributes
    • Discrete Input Current : 7 mA discrete input, 5 mA fast input
    • Input Impedance : 3.4 kOhm discrete input, 100 kOhm analog input, 4.9 kOhm fast input
    • Permitted Overload On Inputs : +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
    • Analogue Input Number : 2 0...10 V
    • Counting Input Number : 4 fast input (HSC mode) 100 kHz 32 bits
    • Discrete Input Logic : sink or source (positive/negative)
    • Discrete Input Number : 9 , discrete input IEC 61131-2 Type 1
    • Discrete Input Voltage Type : DC
  • Batteries & Runtime Attributes
    • Battery Type : BR2032 or CR2032X lithium non-rechargeable
