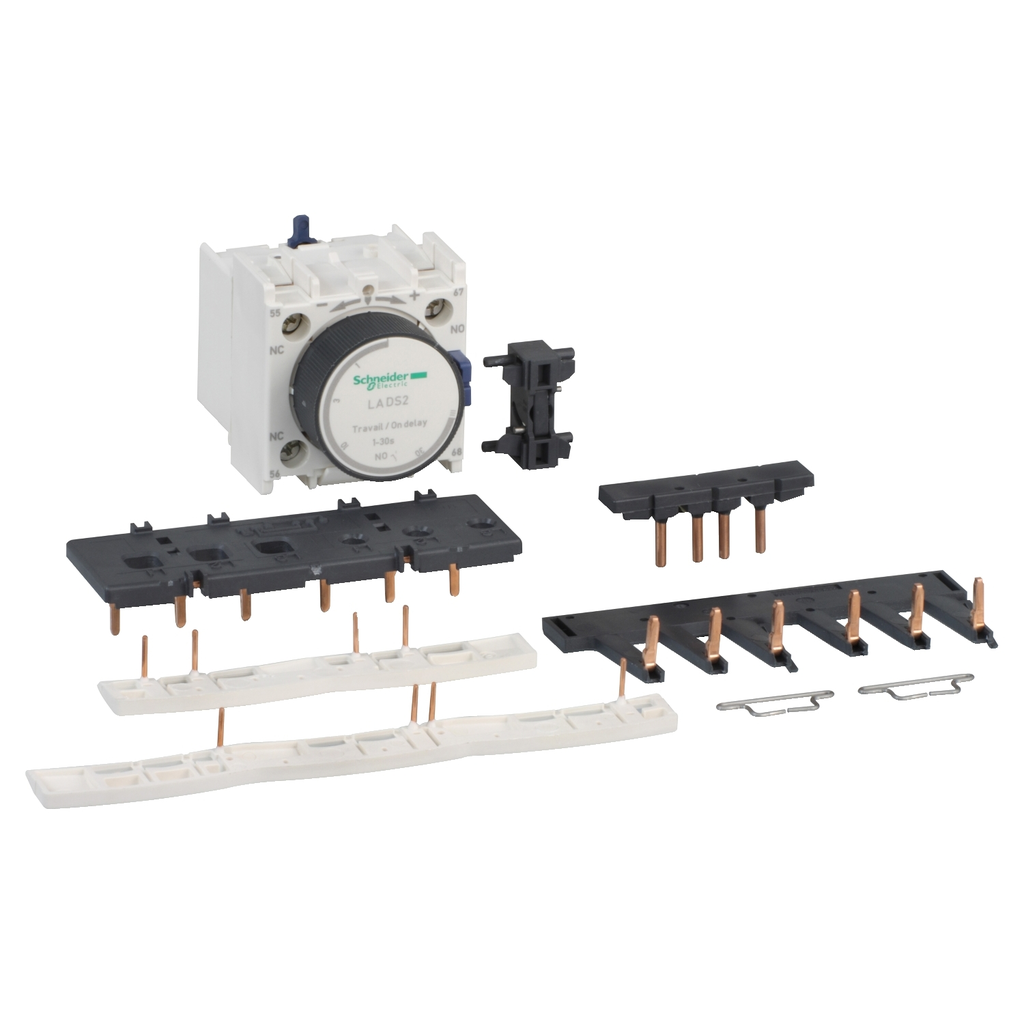

Kit for star delta starter assembling, for 3 x contactors LC1D09-D38 star identical, with timer block

WYE-DELTA STARTER ASSEMBLY KIT

SQDLAD91217 LAD91217 3389110392647
380.91 / EA
http://schema.org/OutOfStock
  • Country of Origin: Czechia
  • Warranty Length: 18 mth
TeSys Deca mounting kit, for star-delta starter assembly with 3-pole contactors LC1D09-D38 (all with the same physical size). For motor applications up to 25kW@400V in delta connection. It contains power circuit connections, screws and clamps for fixing
QTY
  • Product Description
  • Features
  • Specifications
TeSys Deca mounting kit, for star-delta starter assembly with 3-pole contactors LC1D09-D38 (all with the same physical size). For motor applications up to 25kW@400V in delta connection. It contains power circuit connections, screws and clamps for fixing
  • Range Compatibility
    • TeSys TeSys Deca
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Kit Composition
    • electrical and mechanical interlock
    • set of power connection
    • time delay contact block LAD S2
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-02-26
    • ETIM 10 : EC002050
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1904
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : LAD9
    • Device Short Name : LAD9
    • Package Weight Lbs : 154.000 g
    • Poles Description : 3P
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : starter assembly
    • Range : TeSys
    • Range Of Product : TeSys Deca
    • Returnability : No
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationshiptype : Compatible relationship
    • Actuators : LC1D09M7
  • General Attributes
    • Product Or Component Type : starter assembly
    • Range Of Product : TeSys Deca
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=609648&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : LC1D09...D38
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Czechia
